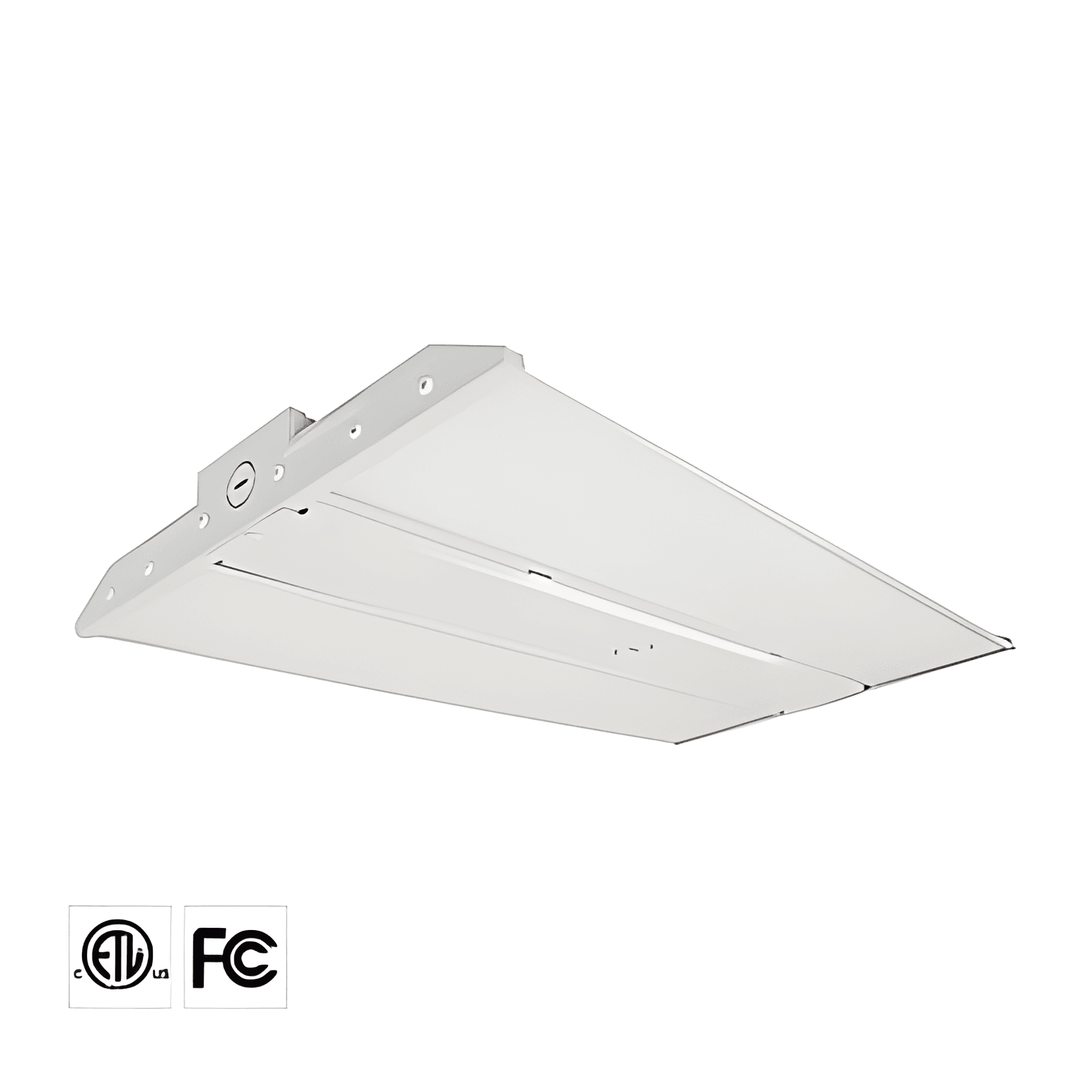

Linear High Bay Light AN-LB2/4FT

Very Narrow Aisle (VNA) warehouses with 5–7 ft aisles and 30–45 ft rack heights present the toughest lighting challenge in logistics: delivering 30–50 fc of vertical illuminance on rack faces while maintaining barcode readability at every shelf level — including the top 40 ft positions where turret trucks operate. Round UFO high bays waste 40–60% of their output illuminating rack tops instead of aisle faces. The AN-LB2/4FT linear form factor projects an asymmetric, elongated beam pattern that concentrates light precisely down the aisle corridor, achieving ≤3:1 vertical uniformity from floor to top shelf. At 165–300W with UL + ETL dual certification, the fixture delivers 26,400–48,000 lumens while consuming 55–65% less energy than the 400–1,000W HID fixtures it replaces. IES RP-7-21 calls for minimum 1 fc vertical illuminance at the highest pick face — a requirement UFO fixtures routinely fail in VNA configurations. IP65 protection handles the dust generated by forklift traffic in concrete-floor facilities. Generate a free LightSpec AI layout with your actual aisle width and rack height to verify vertical illuminance compliance before ordering.

Linear production lines with 8–12 ft wide workstations need continuous, shadow-free illumination along the entire line length — something point-source UFO fixtures cannot deliver without excessive fixture counts and overlapping beam patterns. The AN-LB2/4FT 4-foot form factor creates a seamless light line when mounted end-to-end, delivering 50–100 fc of uniform task illumination across workbenches, conveyor belts, and inspection stations without the scalloping effect that causes QC misses at fixture boundaries. At 165–300W with CRI >80, the fixture provides accurate color rendering for visual inspection while the <1% flicker specification ensures compatibility with machine vision cameras running at 120+ fps. Dual UL + ETL certification simplifies AHJ inspection approvals, and IP65 protects against coolant mist, metal dust, and cleaning compounds in CNC and stamping environments. The 300W model at approximately 48,000 lumens replaces 600W HID fixtures with 50% energy savings and zero warm-up time — eliminating the 15-minute restrike delay that costs production time during power events. Model your production line layout free with LightSpec AI.

Home improvement retailers like Home Depot, Lowe's, and Menards use 12–16 ft wide aisles flanked by 15–25 ft racking that creates a canyon effect — absorbing light from overhead UFO fixtures and leaving lower shelves in shadow. Linear high bays solve this by distributing light along the aisle length with a narrow-body profile that penetrates deeper into rack canyons. The AN-LB2/4FT delivers 50–75 fc at shelf face height with CRI >80 for accurate paint chip, tile, and flooring color matching — a specification that directly impacts customer purchase confidence and return rates. At 165–300W producing up to 48,000 lumens, each fixture covers 20–25 linear feet of aisle, requiring fewer fixtures than UFO alternatives while achieving superior vertical uniformity. UL + ETL dual certification ensures compliance across all U.S. jurisdictions without supplemental testing. The 100,000-hour rated life eliminates the costly after-hours re-lamping cycles that retail chains budget $15–$25 per fixture for with HID technology. Run a free LightSpec AI layout to visualize shelf-level illuminance across your typical aisle section.

Cold chain logistics facilities with narrow freezer aisles (-20°F to 35°F) combine the worst challenges for lighting: extreme temperature cycling, high humidity with ice crystal formation, ammonia refrigerant exposure, and wash-down sanitation protocols. Standard fixtures fail within 12–24 months as thermal cycling cracks polycarbonate lenses and moisture destroys driver electronics. The AN-LB2/4FT IP65-rated linear housing with fully gasketed optical chamber and corrosion-resistant die-cast aluminum construction is engineered for this environment, maintaining performance across its full -40°F to 131°F operating range. The linear form factor is specifically advantageous in cold storage because narrow aisles between pallet racks require directional light distribution that round fixtures cannot efficiently deliver. At 165–300W producing up to 48,000 lumens, the AN-LB2 delivers 15–25 fc in freezer aisles per IES RP-7 while consuming 60–75% less energy than the HPS fixtures running 24/7 in most legacy cold chain facilities. UL + ETL certification is required by most cold storage operators and insurers. Request a free LightSpec AI simulation to verify aisle-level coverage through your specific rack configuration.

Modern fitness centers, indoor pools, and multipurpose recreation facilities need 30–75 fc of uniform, glare-free illumination across open floor areas where the linear form factor provides inherent advantages over point-source UFO fixtures. Linear high bays create continuous light lines that eliminate the bright-spot/dark-gap scalloping pattern visible between spaced UFO fixtures — a uniformity issue that causes visual fatigue during floor exercises and group fitness classes. The AN-LB2/4FT delivers up to 48,000 lumens per 300W fixture in continuous rows, covering a 24 ft wide fitness zone per row with ≤2:1 uniformity. IES RP-6 Class III recreational standards require careful glare control since occupants frequently look toward the ceiling during stretching, yoga, and floor exercises — the AN-LB2's directed optics achieve this without supplemental louvers. At 165–300W, the fixture range covers everything from 18 ft fitness center ceilings (165W) to 35 ft gymnasium vaults (300W). 0-10V dimming enables scene presets: full output for basketball, reduced for yoga, minimum for cleaning. UL + ETL certification ensures code compliance. Simulate your facility layout free with LightSpec AI to confirm illuminance and glare angles.
