Cold Storage & Freezer
LED Lighting Guide
IP65 vapor tight LED solutions for walk-in coolers, freezers, blast freezers, and refrigerated warehouses — rated to -40°F with instant-on performance
-40°F
Rated Temperature
62%
Less Heat Than HID
IP65
Sealed Protection
Cold Storage Illuminance Standards
Recommended foot-candle levels by cold storage zone per IES standards
Walk-in Cooler (34–40°F)
Standard food storage
Walk-in Freezer (0 to -10°F)
Frost buildup reduces lumen output 15–25%
Blast Freezer (-20 to -40°F)
Extreme cold, minimal human access
Refrigerated Warehouse (25–40ft)
High ceiling cold distribution
Dock Door / Staging (transition)
Indoor-outdoor transition zone
Cold Processing Floor
Food processing, packaging
Freezer Aisles (racking)
Vertical illuminance critical for labels
Source: IES Lighting Handbook, OSHA General Duty Clause. Frost buildup reduces output 15–25% — design initial lumens 20% above target to compensate.
💡Design for frost degradation. In freezer environments, frost accumulation on fixture lenses gradually reduces lumen output by 15–25%. Always specify initial lumens 20% above the target foot-candle requirement to maintain adequate illumination throughout the maintenance cycle.
Cold Storage Fixture Selection Guide
Match cold storage zone to the right fixture type, wattage, and IP rating
Walk-in Cooler (8–12ft)
IP65, instant-on at -40°F
Walk-in Freezer (8–15ft)
IP65, stainless clips, -40°F rated
Refrigerated Warehouse (25–35ft)
IP65, high efficacy, reduce heat load
Refrigerated Warehouse (35–50ft)
IP65, aisle uniformity
Dock / Staging
Transition zone, emergency backup
Why LED for Cold Storage?
Cold environments are where LED outperforms legacy lighting the most dramatically
Frost Buildup on Lenses
Frost accumulation on optics reduces lumen output by 15–25%. Initial design must oversize lumens by 20% to compensate for gradual frost degradation.
IP65 Sealed Enclosure
Temperature cycling between cold storage and ambient creates condensation. IP65-rated vapor tight fixtures prevent moisture ingress that destroys drivers and corrodes contacts.
Instant-On Performance
HID/HPS in cold environments require 15–30 minutes to warm up. LED provides full light output instantly — critical for intermittent-access coolers and freezers.
LED Efficiency in Cold
LED efficacy actually increases at lower temperatures as driver thermal stress decreases. Cold storage is the ideal operating environment for LED lighting.
Stainless Steel Hardware
Standard zinc-plated clips and fasteners corrode rapidly in cold, humid environments. Stainless steel mounting clips are mandatory for long-term reliability.
62% Less Heat Than HID
Every watt of heat from lighting becomes additional refrigeration load. LED produces 60–70% less heat than HID, directly reducing compressor energy costs.
Lighting Solutions by Cold Storage Type
Design parameters, example configurations, and recommended products for each cold storage application
🏭 Food Distribution Cold Warehouse
Large-scale cold distribution centers operate at 25–40ft ceiling heights with temperatures from -20°F to 35°F. Forklifts navigate narrow aisles between tall pallet racking, requiring both horizontal floor illumination and vertical light on rack faces for barcode scanning and inventory identification. FSMA (Food Safety Modernization Act) compliance requires adequate lighting for inspection, sanitation verification, and pest monitoring. Frost buildup on fixture lenses is the primary maintenance challenge — reducing output 15–25% within months without proper IP65 sealing.
Design Parameters
| Target illuminance | 20–30 fc |
| Min illuminance | 10 fc |
| Mounting height | 25–40 ft |
| Temperature range | -20 to 35°F |
| IP rating | IP65 minimum |
| Compliance | FSMA, FDA 21 CFR 110 |
Example Configuration
Recommended Products
🧊 Walk-in Cooler & Freezer (Restaurant / Grocery)
Walk-in coolers and freezers in restaurants, grocery stores, and convenience stores are compact spaces (8–15ft ceilings) accessed frequently throughout the day. Doors open and close repeatedly, creating temperature swings and condensation cycles that destroy non-sealed fixtures. Workers need instant full-brightness light for quick item retrieval — HPS/HID warm-up times of 15–30 minutes are completely impractical. NSF/ANSI 2 certification may be required for fixtures in direct food contact zones. Vapor tight LED strips provide the most efficient coverage for these low-ceiling applications.
Design Parameters
| Target illuminance | 20–30 fc |
| Min illuminance | 10 fc |
| Mounting height | 8–15 ft |
| Temperature range | -10 to 40°F |
| IP rating | IP65, NSF listed preferred |
| Controls | Door switch / occupancy auto-off |
Example Configuration
Recommended Products
💊 Pharmaceutical Cold Chain
Pharmaceutical cold chain facilities store vaccines, biologics, and temperature-sensitive medications under strict FDA 21 CFR Part 211 regulations. Precise temperature control is paramount — every watt of heat from lighting directly impacts HVAC load and cold room stability. CRI 80+ lighting is required for accurate visual inspection of labels, lot numbers, and product integrity checks. Documentation requirements mean lighting must meet GMP (Good Manufacturing Practice) standards with verifiable illumination levels. LED's minimal heat output is a significant advantage for maintaining tight temperature tolerances.
Design Parameters
| Target illuminance | 30–50 fc |
| Min illuminance | 20 fc |
| Mounting height | 10–20 ft |
| Temperature range | 2–8°C (36–46°F) typical |
| CRI | 80+ required |
| Compliance | FDA 21 CFR Part 211, GMP |
Example Configuration
Recommended Products
🥩 Meat & Seafood Processing
Meat and seafood processing plants operate at 28–40°F with daily high-pressure washdown protocols that destroy non-sealed fixtures. USDA-inspected facilities require uniform, high-intensity lighting (30–50 fc) for quality inspection of product color, texture, and contamination detection. Stainless steel mounting hardware is mandatory — standard zinc clips corrode within weeks in the acidic, humid processing environment. IP65 wash-down rated fixtures must withstand direct water jets at 1,450 PSI. Workers wearing heavy PPE (gloves, goggles, aprons) have reduced visibility, making bright, glare-free lighting essential for safety.
Design Parameters
| Target illuminance | 30–50 fc |
| Min illuminance | 20 fc |
| Mounting height | 10–20 ft |
| Temperature range | 28–40°F (-2 to 4°C) |
| IP rating | IP65, wash-down rated |
| Compliance | USDA FSIS, OSHA, NSF |
Example Configuration
Recommended Products
🏒 Ice Rink & Frozen Food Manufacturing
Ice rinks and frozen food manufacturing facilities operate at the extreme end of cold environments — blast freezer areas reach -40°F where most conventional lighting fails completely. Fixtures must be rated for sustained operation at -40°F with instant-on capability. In blast freezer zones, human access is minimal but lighting is still needed for periodic inspection, maintenance, and automated system monitoring. Ice rink facilities need consistent, glare-free illumination over large open areas with supplemental lighting for spectator areas. The extreme temperature differential between the ice surface and surrounding areas creates aggressive condensation zones where IP65 sealing is critical.
Design Parameters
| Target illuminance | 10–20 fc (blast freezer), 30–50 fc (manufacturing) |
| Min illuminance | 5 fc |
| Mounting height | 15–35 ft |
| Temperature range | -40 to 0°F (-40 to -18°C) |
| IP rating | IP65, -40°F rated drivers |
| Controls | Occupancy-based for blast freezer zones |
Example Configuration
Recommended Products
Recommended Products for Cold Storage Lighting
IP65 sealed, -40°F rated vapor tight fixtures, high bays, and accessories for cold storage and freezer environments
LED vs Legacy: Energy & Refrigeration Savings
Based on $0.12/kWh, 4,380 hrs/year (12 hrs/day × 365 days). Cold storage gets double savings: energy + reduced refrigeration load.
250W HPS
HPS adds 295W heat load to refrigeration
400W Metal Halide
MH adds 460W heat load to refrigeration
4-lamp T8 Fluorescent
Fluorescent fails below 0°F
6-lamp T5HO
T5HO output drops 40% at -20°F
175W Mercury Vapor
Mercury vapor banned, extreme warm-up time
Cold storage bonus: every watt of heat eliminated from lighting reduces refrigeration compressor load. LED's 60–70% heat reduction vs HID can save an additional 8% on HVAC energy costs.
Case Study
180,000 sq ft Cold Distribution Center — Riverside, CA

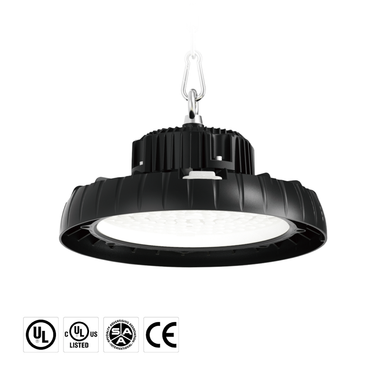

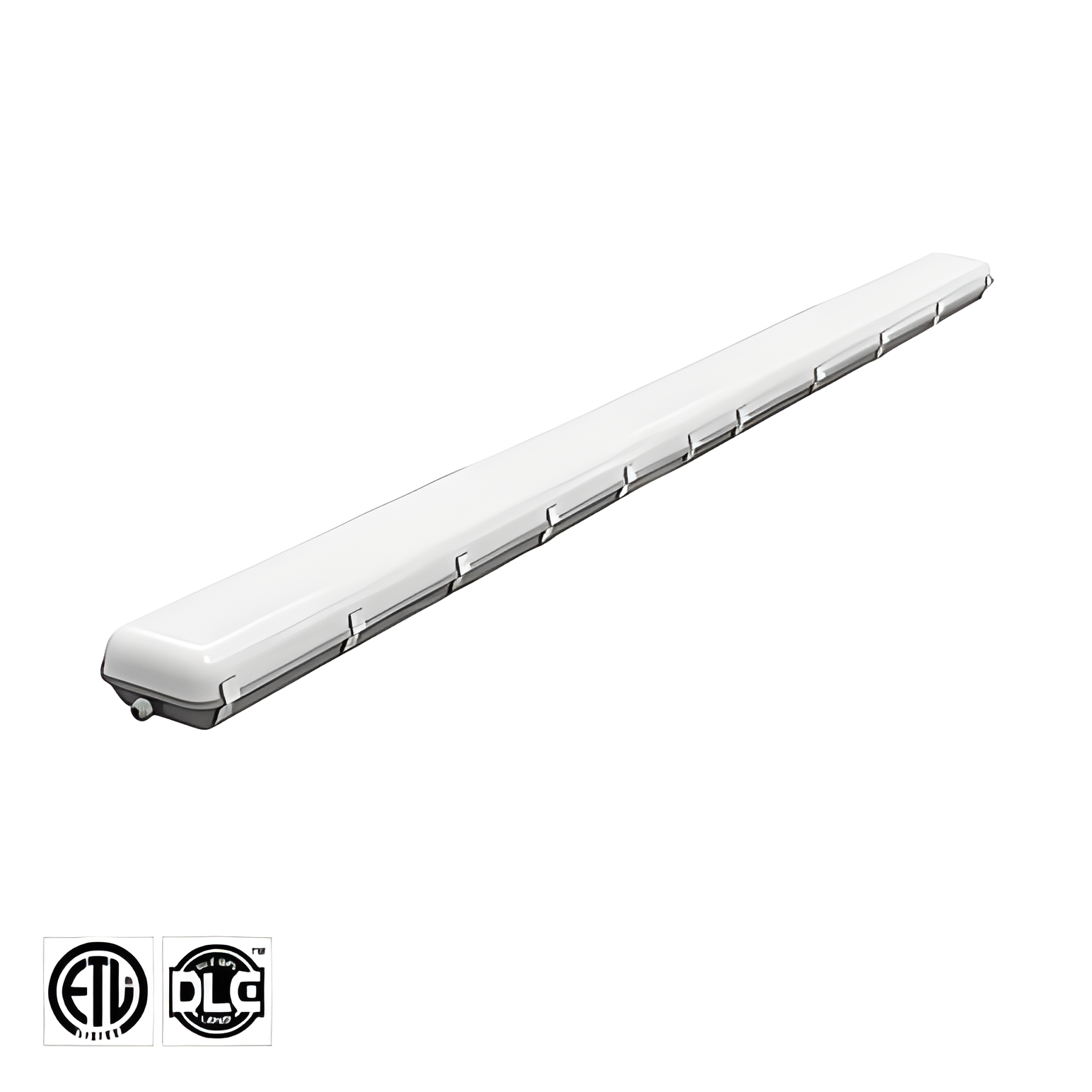

Replaced 120 × 250W HPS with 80 × VT8FT 80W (aisles) + 40 × oH 150W (open areas). Energy reduced 62%. LED heat reduction lowered refrigeration load by estimated 8%, adding $12,000/year in HVAC savings. Frost-related maintenance eliminated. Instant-on saved 15 min/shift vs HPS warmup.
$42,000
Annual Energy Savings
11 mo
Payback (after SCE DLC rebates)
62%
Energy Reduction
+$12K
HVAC Savings / Year
