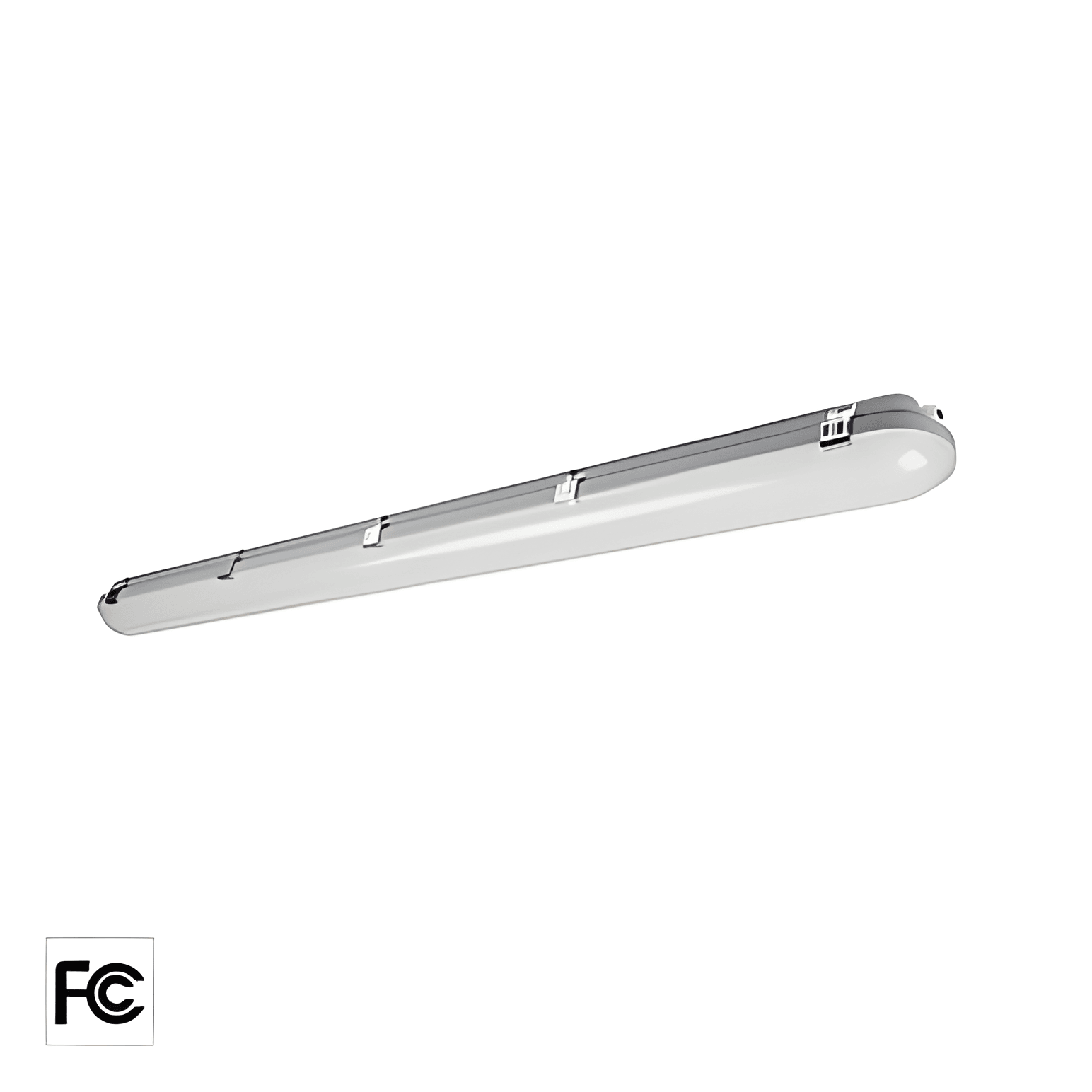

4FT LED Tri-proof Light full view with slotted iron heat dissipation board, IP65 IK08 rated industrial lighting fixture
AN-VF4FT 40W · Vapor Tights

Vapor Tight Strip AN-VF4FT 40W

Passes the 850°C Glow Wire Test. Survives the Pressure Wash. Keeps the Lights On

SKU: A-VF4FT40W-NV-5K-120D-WH|
In Stock
ETL Listed
5-Year Warranty
$80.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Passes the 850°C Glow Wire Test. Survives the Pressure Wash. Keeps the Lights On.

A 4FT IP65/IK08 tri-proof fixture with 130 lm/W, modular design, and industrial-grade safety certifications. For warehouses, supermarkets, parking garages, and food processing — where fixtures face water, dust, impact, and fire safety requirements simultaneously.

IP65 + IK08 + 850°C Glow Wire — Triple-Threat Protection

IP65 keeps water and dust out. IK08 survives impacts from equipment and pallet jacks. 850°C glow wire certification means the housing won't ignite or propagate fire. Three independent safety certifications in one fixture.

Modular Design for Easy Maintenance Access

Slotted iron board construction allows component-level access without replacing the entire fixture. In facilities with hundreds of vapor tights, modular serviceability reduces maintenance costs dramatically.

130 lm/W — Efficient Even in Harsh Environments

High efficacy with power factor >0.9 means you need fewer fixtures to hit target illumination levels, even in the demanding conditions where vapor tights are required. Fewer fixtures = less installed cost + less maintenance.

100–277V Universal Voltage + 100–347V Option

Covers standard commercial and Canadian commercial voltage ranges. For facilities spanning both countries or with mixed electrical systems, one fixture SKU handles all standard voltages.

Suitable for Supermarkets, Car Washes, and Parking Garages

The tri-proof rating (water, dust, impact) makes this fixture appropriate for the wet aisles in supermarkets, the high-humidity zones in car washes, and the vehicle exhaust environments in parking garages.

Protection

IP65 / IK08
Waterproof, dustproof, and impact-resistant

Fire Safety

850°C
Glow wire tested — meets industrial fire safety standards

Efficacy

130 lm/W
High efficiency in a ruggedized package

Warranty

5 Years
Full manufacturer warranty for demanding installations

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
IP65 / IK08
Protection
850°C
Fire Safety
130 lm/W
Efficacy
5 Years
Warranty

Electrical

Power Factor0.9
Voltage100-277V

Optical

CCT5000K
CRI80
Efficacy130lm/W
Lumens5200lm

Physical

Housing MaterialSlotted iron board
IK RatingIK08
IP RatingIP65
MountingModular surface mount

Warranty

Warranty5-Year Warranty

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Standards Compliance

Based on max wattage lumen output per optic. Actual compliance depends on layout design and fixture count.

🏆
FIFA A
≥ 2400 lux avg
120°
FIFA C
≥ 1000 lux avg
120°
🏈
IES RP-6 Class I
≥ 100 fc avg
120°
🎾
IES RP-6 Class III
≥ 30 fc avg
120°

Beam Pattern & CBCP

Peak Center Beam Candlepower and throw ratings by optic.

120°
120° optic
Peak CBCP1,655 cd
Beam Angle120°
Throw RatingWide Flood (<30ft)
Wide area coverage · Low-mount <30ft · Recreational

⚡ Quick Project Estimator

Select your sport and level for an instant fixture recommendation.

Recommended Optic
60°
Fixture Count
48-72
Pole Layout
4-6 poles
Target Level
500-1000 lux (FIFA C/D)
Mounting Height
50-60ft
Get Full Photometric Layout (Free) →

Custom AGi32-grade simulation with foot-candle grid, uniformity ratios, and pole spacing

Lumen Output (lm)

Tested per IESNA LM-79-19 at 25°C, EVERFINE GO-2000A goniophotometer

Optic40W
120° ()5,200
Efficacy (lm/W)130

Efficacy Comparison

lm/W — higher is better

AN-VF4FT 40W (this product)
130 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Compact Vapor Tight for Wet & Harsh Locations

IP65-sealed 4ft 40W vapor tight strip delivering 5,200 lumens at 130 lm/W — engineered for food service, cold storage, car wash, parking, and chemical environments

🍖

Food Processing & Commercial Kitchens

Commercial kitchens and food processing facilities require IP65 wash-down rated fixtures that endure daily high-pressure cleaning with chemical sanitizers at 140°F+. The AN-VF4FT 40W delivers 5,200 lumens at 130 lm/W — sufficient to meet IES RP-28 recommended 75–100 fc on prep surfaces in a compact 4ft form factor. ETL-listed with stainless steel mounting clips, it resists the corrosive salt-air and caustic detergent environment that destroys standard fixtures in 8–12 months. Replacing two T8 fluorescent tubes with one VF4FT typically saves $45–65 annually per fixture with payback under 18 months including utility rebates. Plan your kitchen lighting layout with LightSpec AI free tool to ensure NSF-compliant uniform illumination across every work station.

Standard: IES RP-28 / NSF/ANSI 2 / OSHA 1910.303

Technical Requirements

  • IP65 for daily wash-down with chemical sanitizers
  • 75–100 fc maintained on food prep surfaces per IES RP-28
  • NSF/ANSI 2 compatible housing materials
  • CRI ≥80 for accurate food quality color inspection
  • Operating range: 0°F to 122°F ambient
  • GFCI-protected branch circuits per NEC 210.8(B)

Recommended Specifications

40W / 5,200 lm for standard 10ft kitchen ceilings5000K CCT for maximum visual clarity on inspection linesStainless steel V-clips for corrosion-free mountingEmergency backup option for walk-in cooler egress paths

Installation Notes

  • Use stainless steel mounting hardware only — zinc-plated clips corrode within 6 months in wash-down environments
  • Seal conduit entries with IP65-rated fittings to prevent moisture migration
  • Verify GFCI protection on all circuits before energizing per NEC 210.8(B)(2)

Regional Compliance Notes

California Title 24 §140.6(c) requires ≥110 lm/W for commercial kitchens — VF4FT at 130 lm/W complies

ASHRAE 90.1-2022 §9.4.5 mandates occupancy controls in storage/prep areas adjacent to kitchens

❄️

Cold Storage & Walk-in Freezers

Walk-in freezers and cold storage at -40°F destroy fluorescent ballasts and crack standard lenses within weeks — creating safety hazards and $2,000–4,000 annual emergency maintenance costs per facility. The AN-VF4FT 40W operates continuously from -40°F to 122°F with instant-on, zero warm-up illumination, delivering 5,200 lumens at 130 lm/W to meet IES RP-29 recommended 15–25 fc in freezer aisles. The compact 4ft IP65-sealed form factor fits standard walk-in ceiling grids, and frost-resistant polycarbonate lens eliminates condensation failures. ETL-listed for immediate code compliance. Use LightSpec AI free simulation to optimize fixture count and spacing for safe forklift navigation in cold storage aisles.

Standard: IES RP-29 / OSHA 1910.37 / ASHRAE 90.1

Technical Requirements

  • Rated -40°F to 122°F continuous ambient operation
  • 15–25 fc maintained in storage aisles per IES RP-29
  • Instant-on at -40°F — zero warm-up time
  • IP65 sealed against frost and condensation intrusion
  • Polycarbonate lens for thermal shock resistance
  • Emergency egress illumination per OSHA 1910.37

Recommended Specifications

40W / 5,200 lm for 8–10ft walk-in freezer ceilings4000K CCT for balanced visibility during inventory checksMotion-activated control to minimize heat contribution in freezer zonesBattery backup rated to -20°F for egress paths

Installation Notes

  • Use silicone-jacketed wiring rated for -40°F — standard PVC cracks below -4°F
  • Pre-condition fixtures at room temperature 2 hours before cold installation
  • Seal conduit wall penetrations with vapor-tight fittings to prevent warm-side moisture migration

Regional Compliance Notes

California Title 24 §120.6(a) requires automatic shut-off in refrigerated warehouses >1,000 sq ft

ASHRAE 90.1-2022 §9.4.1.1(h) mandates occupancy sensors in cold storage — use low-temp rated sensor

🚗

Car Wash & Wet Locations

Car wash tunnels subject fixtures to constant water spray, chemical foaming agents, extreme humidity, and 40°F–130°F temperature cycling that rapidly degrades non-sealed lighting. The AN-VF4FT 40W IP65-sealed gasketed housing and UV-stabilized polycarbonate lens withstand direct water jets and chemical exposure while delivering 5,200 lumens at 130 lm/W. This exceeds IES RP-7 requirements of 20–50 fc for vehicle service environments in a cost-effective 4ft package. Non-rated fixtures in car wash environments typically fail every 12–18 months, costing $150–250 per replacement in labor and materials — the VF4FT eliminates this cycle. Design your car wash tunnel lighting layout with LightSpec AI free tool to verify uniform coverage across wash and rinse zones.

Standard: UL 1598 Wet Location / IES RP-7 / NEC 511

Technical Requirements

  • UL 1598 Wet Location listing — mandatory for direct water exposure
  • IP65: dust-tight and water jet protected
  • UV-stabilized housing to resist chemical detergent degradation
  • Corrosion-resistant stainless steel mounting hardware
  • 20–50 fc on vehicle surfaces per IES RP-7
  • Surge protection ≥4kV for motor-induced transients

Recommended Specifications

40W / 5,200 lm for 8–12ft tunnel and bay ceilings5000K CCT for customer-perceived brightness and cleanlinessChain or V-hook suspension for vibration isolationPaired fixtures end-to-end for continuous tunnel illumination

Installation Notes

  • Use UL-listed wet-location junction boxes and liquid-tight flexible conduit
  • Mount at minimum 8ft height above vehicle path to prevent contact damage
  • Orient perpendicular to tunnel direction for even wash-zone coverage

Regional Compliance Notes

California Title 24 §140.7 requires automatic daylight controls for wash bays with >50% open walls or glazing

Local codes may require GFCI on all 120V circuits within 10ft of water — verify with AHJ

🅿️

Parking Garage & Stairwells

Parking garages suffer relentless moisture from vehicle exhaust condensation, rainwater intrusion, and seasonal temperature cycling that destroys non-sealed fixtures within 2–3 years. The AN-VF4FT 40W IP65-rated housing prevents moisture and particulate ingress, delivering 5,200 lumens at 130 lm/W — meeting IES RP-20 recommended 10–20 fc for covered parking in a budget-friendly 4ft compact package. ETL-listed with vandal-resistant polycarbonate lens, it eliminates glass breakage liability in stairwells and public areas. Facilities converting from T8 fluorescent achieve 55–65% energy savings. Verify your garage meets IES uniformity requirements with LightSpec AI free parking layout tool.

Standard: IES RP-20 / ASHRAE 90.1 / IBC 1008

Technical Requirements

  • 10–20 fc on parking deck per IES RP-20
  • 5–10 fc in stairwells per IBC 1008.2
  • IP65 sealed for condensation resistance
  • Emergency backup on egress paths per IBC 1008.3 / NFPA 101
  • 90-minute emergency runtime minimum
  • 0–10V dimming for occupied/unoccupied scheduling

Recommended Specifications

40W / 5,200 lm for standard 10ft garage ceilings5000K CCT for enhanced security camera performanceIntegral occupancy sensor for bi-level dimming (50% occupied / 25% vacant)Polycarbonate lens for vandal resistance in stairwells

Installation Notes

  • Surface mount to concrete with expansion anchors rated for overhead load
  • Wire emergency backup fixtures on dedicated unswitched circuit per NEC 700.12
  • Use LightSpec AI to verify ≥4:1 max-to-min uniformity per IES RP-20

Regional Compliance Notes

California Title 24 §140.7(b) requires parking garage LPD ≤0.19 W/sq ft with demand-responsive controls

ASHRAE 90.1-2022 §9.4.1.1(f) mandates occupancy sensors with auto-OFF in parking garages

⚗️

Chemical & Pharmaceutical

Chemical and pharmaceutical environments expose fixtures to corrosive vapors, aggressive sanitization protocols, and strict FDA contamination control. The AN-VF4FT 40W IP65 fully-sealed housing prevents chemical vapor ingress and allows GMP-compliant wipe-down decontamination without degradation. At 5,200 lumens and 130 lm/W, it delivers the 50–100 fc specified by IES RP-7 for chemical handling and FDA 21 CFR 211 visual inspection areas. The compact 4ft form factor fits between ductwork and piping in congested mechanical spaces where larger fixtures cannot be installed. Non-porous polycarbonate eliminates particle-harboring surfaces that trigger FDA audit findings costing $50,000+ per incident. Validate illumination levels with LightSpec AI free layout tool.

Standard: IES RP-7 / OSHA 1910.106 / FDA 21 CFR 211

Technical Requirements

  • IP65 sealed against corrosive vapors and chemical aerosols
  • 50–100 fc at work surfaces per IES RP-7 / FDA 21 CFR 211.44
  • Non-porous, non-shedding housing for GMP compliance
  • CRI ≥80 for quality inspection color accuracy
  • Chemical-resistant lens (IPA, bleach, quaternary ammonium)
  • NFPA 70 circuit classification where hazard area applies

Recommended Specifications

40W / 5,200 lm for 10–12ft utility and processing ceiling heights5000K CCT for pharmaceutical inspection stationsFully gasketed housing with no exposed fastenersEmergency battery backup for critical processing per OSHA 1910.37

Installation Notes

  • Verify chemical compatibility of housing materials with facility process chemicals before installation
  • Use chemical-resistant liquid-tight conduit (PVC-coated or stainless)
  • Coordinate fixture placement with laminar airflow to avoid disrupting cleanroom air change patterns

Regional Compliance Notes

California Title 24 §140.6 applies to pharmaceutical manufacturing; verify LPD with energy consultant

ASHRAE 90.1-2022 §6.5.3 may govern HVAC-integrated lighting loads in cleanroom settings

No accessories available for this product.

Quick Summary

The AN-VF4FT Vapor Tight Strip is a 40W fixture delivering 5,200 lumens at 130 lm/W, ETL certified, IP65/IK08 rated with 850°C glow wire fire resistance, CRI 80 at 5000K and 100-277V input.

Frequently Asked Questions

What fire safety rating does the AN-VF4FT have?
850°C glow wire tested, exceeding standard fire resistance requirements for use in commercial and industrial environments.
Is the AN-VF4FT suitable for harsh environments?
Yes, IP65 for water/dust protection and IK08 impact rating make it ideal for parking garages, loading docks, industrial washdown areas, and food processing.
What is the lumen output?
5,200 lumens from 40W at 130 lm/W efficacy, suitable for replacing traditional fluorescent vapor tight fixtures.
Is it ETL certified?
Yes, ETL certified for commercial and industrial safety compliance.
