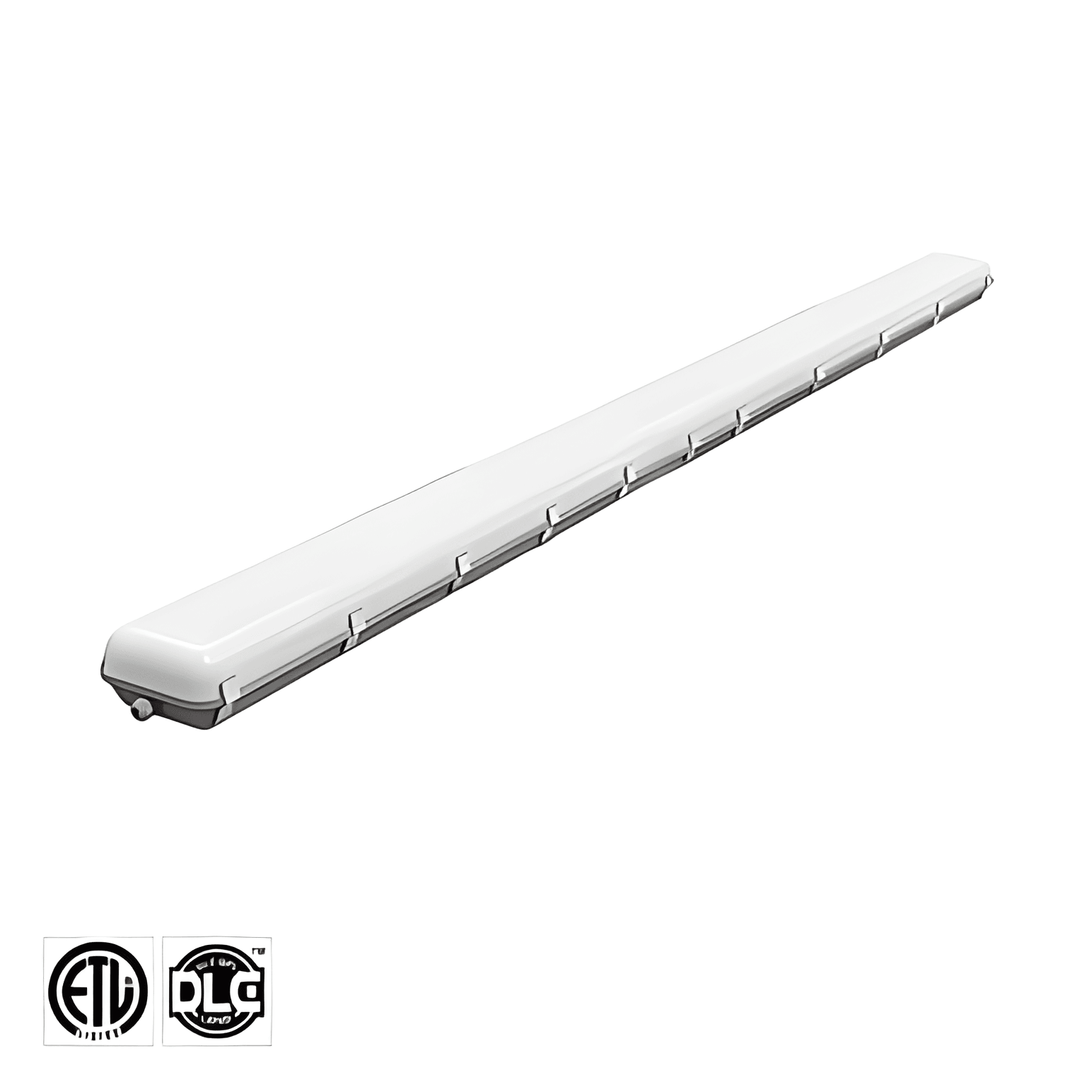

8FT IP65 LED vapor tight fixture full view with frosted polycarbonate lens, durable plastic housing and stainless steel toolless entry clips
AN-VT8FT 45/60/70/80W · Vapor Tights

Turnable Vapor Tight AN-VT8FT 45/60/70/80W

The One Fixture Rated for Cold Storage, Car Washes, and Agricultural Barns.

SKU: A-VT8FT80W-NV-345KS-120D-WH|
In Stock
ETL Listed
5-Year Warranty
$190.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 4. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

The One Fixture Rated for Cold Storage, Car Washes, and Agricultural Barns.

An 8FT IP65 vapor tight with field-tunable wattage (45/60/70/80W), 3CCT selection, 130 lm/W, and 12V auxiliary output for IoT sensors. When the environment is wet, cold, corrosive, or all three — this fixture was built for it.

IP65 — Sealed Against Water Jets, Dust, and Chemical Exposure

Car wash bays, food processing lines, cold storage freezers, and agricultural buildings generate conditions that destroy standard fixtures in months. IP65 sealing keeps water, dust, and airborne chemicals completely out.

Field-Tunable Wattage (45/60/70/80W) — Adapt to the Space

Set the wattage on-site to match actual ceiling height and required light levels. No over-lighting narrow aisles or under-lighting open processing areas — just dial in the right output per zone.

3CCT Selection for Food Processing Compliance

Food processing and inspection areas have specific color temperature requirements. Select 3500K, 4000K, or 5000K on the fixture to match the facility's FSMA or HACCP lighting requirements without special orders.

12V Auxiliary Output for IoT and Sensor Integration

Built-in 12V AUX powers occupancy sensors, temperature sensors, and IoT monitoring devices without separate wiring. In cold storage and agricultural facilities, this eliminates the need for dedicated low-voltage infrastructure.

Durable Polycarbonate Lens + High-Impact Housing

Frosted polycarbonate lens resists impact from pressure washing wands, falling product, and agricultural equipment contact. The housing material doesn't corrode in high-humidity and chemical-exposure environments.

Protection

IP65
Sealed for water jets, dust, chemicals, and freezer conditions

Efficacy

130 lm/W
Maximum light from minimum power in harsh environments

Length

8 Feet
Full-length coverage reduces fixture count per row

Warranty

5 Years
Full coverage even in demanding industrial environments

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
IP65
Protection
130 lm/W
Efficacy
8 Feet
Length
5 Years
Warranty

Electrical

Dimming3500/4000/5000K adjustable
Voltage120-277VAC

Optical

CRI80
Lumens10040lm
Luminous Efficacy130lm/W

Physical

Housing MaterialDurable plastic, frosted polycarbonate lens
IP RatingIP65
Mounting8FT vapor tight, stainless steel clips (toolless entry)

Warranty

Lifespan50,000 hours
Warranty5-Year Warranty

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
80W52.3 lbs52.3 lbs96.3" × 12.4" × 10.8"4

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Standards Compliance

Based on max wattage lumen output per optic. Actual compliance depends on layout design and fixture count.

🏆
FIFA A
≥ 2400 lux avg
120°
FIFA C
≥ 1000 lux avg
120°
🏈
IES RP-6 Class I
≥ 100 fc avg
120°
🎾
IES RP-6 Class III
≥ 30 fc avg
120°

Beam Pattern & CBCP

Peak Center Beam Candlepower and throw ratings by optic.

120°
120° optic
Peak CBCP3,196 cd
Beam Angle120°
Throw RatingWide Flood (<30ft)
Wide area coverage · Low-mount <30ft · Recreational

⚡ Quick Project Estimator

Select your sport and level for an instant fixture recommendation.

Recommended Optic
60°
Fixture Count
48-72
Pole Layout
4-6 poles
Target Level
500-1000 lux (FIFA C/D)
Mounting Height
50-60ft
Get Full Photometric Layout (Free) →

Custom AGi32-grade simulation with foot-candle grid, uniformity ratios, and pole spacing

Lumen Output (lm)

Tested per IESNA LM-79-19 at 25°C, EVERFINE GO-2000A goniophotometer

Optic45W60W70W80W
120° ()5,8507,8009,10010,040
Efficacy (lm/W)130130130126

Efficacy Comparison

lm/W — higher is better

AN-VT8FT 45/60/70/80W (this product)
130 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Vapor Tight Lighting for Harsh & Wet Environments

IP65-sealed, CCT tunable 45–80W vapor tight engineered for food processing, cold storage, car wash, parking, and chemical facilities — with free AI-powered layout design

🍖

Food Processing & Commercial Kitchens

Food processing lines and commercial kitchens demand IP65 wash-down-rated fixtures that survive daily high-pressure cleaning with caustic detergents at temperatures up to 140°F. The AN-VT8FT delivers 130 lm/W efficacy at 45–80W tunable wattage with CCT selection (3500K–5000K), producing 5,850–10,400 lumens to meet IES RP-28 recommendations of 75–100 fc on work surfaces. Stainless steel mounting clips resist corrosion in NSF-compliant environments. Facilities replacing legacy fluorescent T8 vapor tights typically see 55–65% energy reduction with under 2-year payback. Use LightSpec AI free layout tool to verify uniform coverage across processing zones and ensure OSHA-compliant illumination levels.

Standard: IES RP-28 / NSF/ANSI 2 / OSHA 1910.303

Technical Requirements

  • IP65 minimum for wash-down environments
  • 75–100 fc on food preparation surfaces per IES RP-28
  • NSF/ANSI 2 compliant fixture materials
  • CRI ≥80 for accurate food quality inspection
  • Operating temperature range: 0°F to 140°F
  • GFCI-protected branch circuits per NEC 210.8

Recommended Specifications

80W / 10,400 lm for high-ceiling processing areas5000K CCT for maximum visual acuity on inspection linesStainless steel mounting clips and hardwareEmergency battery backup for walk-in cooler egress0–10V dimming for energy management during off-shifts

Installation Notes

  • Mount with stainless steel clips — standard zinc hardware corrodes within 6 months in wash-down areas
  • Maintain 12" minimum clearance from steam sources and HVAC discharge
  • Seal all conduit entries with IP65-rated fittings to prevent moisture wicking
  • Verify GFCI protection before energizing per NEC 210.8(B)(2)

Regional Compliance Notes

California Title 24 §140.6(c) requires ≥110 lm/W for commercial kitchen lighting — AN-VT8FT at 130 lm/W exceeds this threshold

ASHRAE 90.1-2022 §9.4.5 mandates occupancy controls in storage areas; pair with occupancy sensor for compliance

❄️

Cold Storage & Walk-in Freezers

Cold storage facilities operating at -40°F destroy conventional lighting within months — ballast failure, lens cracking, and catastrophic lumen depreciation plague legacy fluorescent systems. The AN-VT8FT is rated for -40°F to 122°F continuous operation, delivering 130 lm/W with zero warm-up time even at extreme low temperatures. At 45–80W tunable wattage, it provides 5,850–10,400 lumens to achieve IES RP-29 recommended 15–25 fc in cold storage aisles. Frost-resistant polycarbonate lens eliminates condensation-related failures that cost facilities ,000–,000 annually in emergency maintenance. Run LightSpec AI free layout simulation to optimize fixture spacing for rack aisle visibility and forklift safety compliance.

Standard: IES RP-29 / OSHA 1910.37 / ASHRAE 90.1

Technical Requirements

  • Ambient rating: -40°F to 122°F continuous operation
  • 15–25 fc maintained in storage aisles per IES RP-29
  • Instant-on: zero warm-up time at -40°F
  • IP65 sealed against condensation and frost intrusion
  • Polycarbonate lens rated for thermal shock cycling
  • Emergency egress lighting per OSHA 1910.37

Recommended Specifications

60W–70W for standard 20ft cold storage aisles4000K CCT for balanced visibility in frozen inventory inspectionMotion-activated dimming to reduce heat load and energy useBattery backup rated for -20°F minimum for egress paths

Installation Notes

  • Pre-condition fixtures at room temperature for 2 hours before cold storage installation to prevent thermal shock
  • Use silicone-jacketed wiring rated for -40°F — standard PVC insulation cracks below -4°F
  • Install vapor-tight conduit seals at wall penetrations to prevent warm-side moisture migration

Regional Compliance Notes

California Title 24 §120.6(a) requires automatic shut-off controls in refrigerated warehouses >1,000 sq ft

ASHRAE 90.1-2022 §9.4.1.1(h) mandates occupancy sensors in cold storage — pair with low-temp rated sensor

🚗

Car Wash & Wet Locations

Car wash tunnels combine the worst conditions for lighting: constant water spray, chemical detergents, high humidity, and extreme temperature swings from heated wash cycles to freezing winters. The AN-VT8FT IP65-sealed gasketed housing with polycarbonate lens withstands direct water jets, chemical exposure, and vibration from conveyor systems. Delivering 130 lm/W at 45–80W tunable output (5,850–10,400 lm), it exceeds IES RP-7 requirements for 20–50 fc in vehicle service areas. Corrosion-resistant UV-stabilized housing eliminates the 12–18 month replacement cycle typical of non-rated fixtures in wet environments, saving 50–00 per fixture annually in labor and materials. Use LightSpec AI free layout tool to calculate optimal spacing for tunnel and bay configurations.

Standard: UL 1598 Wet Location / IES RP-7 / NEC 511

Technical Requirements

  • UL 1598 Listed for Wet Locations — mandatory for direct water exposure
  • IP65 minimum: dust-tight and protected against water jets
  • UV-stabilized housing and lens to resist degradation from chemical detergents
  • Corrosion-resistant mounting hardware (stainless steel or coated)
  • 20–50 fc on vehicle surfaces per IES RP-7
  • 20kA SCCR for service panel compatibility

Recommended Specifications

70W–80W for tunnel wash bays with 12–14ft ceilings5000K CCT for customer-perceived cleanliness and brightnessChain/V-hook suspension mount for vibration isolation from conveyor systemsSurge protection ≥6kV for motor-induced electrical noise

Installation Notes

  • Use UL-listed wet-location junction boxes and liquid-tight flexible conduit throughout
  • Maintain minimum 8ft mounting height above vehicle path to prevent physical contact damage
  • Orient fixtures perpendicular to tunnel direction for uniform wash-zone illumination

Regional Compliance Notes

California Title 24 §140.7 requires automatic daylight controls for car wash bays with >50% glazing or open walls

Local amendments may require GFCI protection on all 120V circuits within 10ft of water sources — verify with AHJ

🅿️

Parking Garage & Stairwells

Parking garages and stairwells present persistent moisture from vehicle exhaust condensation, rainwater intrusion, and temperature cycling that rapidly degrades non-sealed fixtures. The AN-VT8FT IP65-rated housing prevents moisture and particulate ingress while delivering 130 lm/W at 45–80W (5,850–10,400 lm) to meet IES RP-20 recommended 10–20 fc for covered parking and 5–10 fc for stairwell egress. CCT tunable from 3500K–5000K allows matching security-focused high-color-temperature lighting in stairwells with warmer tones in occupied parking levels. Vandal-resistant polycarbonate lens eliminates glass breakage liability. Facilities converting from T8 fluorescent typically achieve 60% energy savings with utility rebates accelerating payback to under 18 months. Model your garage layout free with LightSpec AI to verify IES uniformity ratios.

Standard: IES RP-20 / ASHRAE 90.1 / IBC 1008

Technical Requirements

  • 10–20 fc maintained on parking deck per IES RP-20
  • 5–10 fc in stairwells per IBC 1008.2
  • IP65 sealed for condensation and water intrusion resistance
  • Emergency battery backup on egress paths per IBC 1008.3
  • Minimum 90-minute emergency runtime per NFPA 101
  • 0–10V dimming for occupied/unoccupied scheduling

Recommended Specifications

45W–60W for standard 10–12ft garage ceilings5000K CCT for enhanced security camera color renderingIntegral motion sensor for bi-level dimming (IES recommends 50% occupied/25% vacant)Polycarbonate lens for vandal and impact resistance

Installation Notes

  • Surface mount to concrete deck using expansion anchors rated for overhead load — avoid toggle bolts in cracked concrete
  • Wire emergency battery backup fixtures on separate unswitched circuit per NEC 700.12
  • Space fixtures per LightSpec AI layout to maintain ≥4:1 max-to-min uniformity ratio per IES RP-20

Regional Compliance Notes

California Title 24 §140.7(b) requires parking garage LPD ≤0.19 W/sq ft with demand-responsive controls

ASHRAE 90.1-2022 §9.4.1.1(f) mandates occupancy sensors with auto-OFF in parking garages and stairwells

⚗️

Chemical & Pharmaceutical

Chemical processing and pharmaceutical manufacturing areas expose lighting to corrosive vapors, aggressive clean-down protocols, and strict contamination control requirements. The AN-VT8FT IP65 fully-sealed design prevents chemical vapor ingress and allows GMP-compliant surface decontamination without fixture degradation. At 130 lm/W and 45–80W tunable wattage (5,850–10,400 lm), it delivers the 50–100 fc required by IES RP-7 for chemical handling areas and FDA 21 CFR 211 visual inspection stations. Non-porous polycarbonate housing eliminates particle harboring that causes FDA audit findings — a single contamination event can cost 0,000+ in batch rejection and downtime. Validate your cleanroom-adjacent lighting layout with LightSpec AI free tool to ensure uniform illumination across critical work zones.

Standard: IES RP-7 / OSHA 1910.106 / FDA 21 CFR 211

Technical Requirements

  • IP65 sealed against corrosive chemical vapors and aerosols
  • 50–100 fc at work surfaces per IES RP-7 and FDA 21 CFR 211.44
  • Non-porous, non-shedding housing materials for GMP compliance
  • CRI ≥80 for accurate color discrimination in quality inspection
  • Chemical-resistant lens: withstands IPA, bleach, quaternary ammonium
  • NFPA 70 Class I Div 2 rated circuits where required by hazard classification

Recommended Specifications

80W / 10,400 lm for high-bay processing areas with 16–20ft ceilings4000K–5000K CCT for pharmaceutical inspection stationsFully gasketed housing with no exposed fasteners for easy decontaminationEmergency battery backup for critical processing areas per OSHA 1910.37DALI or 0–10V dimming for clean room pressure cascade integration

Installation Notes

  • Verify chemical compatibility of fixture housing with process chemicals before installation — request compatibility data sheet
  • Use chemical-resistant liquid-tight conduit and fittings (PVC-coated or stainless)
  • Install on dedicated clean-side circuits separate from process equipment to prevent voltage transients
  • Coordinate fixture placement with laminar airflow patterns — avoid disrupting ISO cleanroom air change requirements

Regional Compliance Notes

California Title 24 §140.6 applies to pharmaceutical manufacturing lighting; verify LPD compliance with local energy consultant

ASHRAE 90.1-2022 §6.5.3 may apply to HVAC-integrated lighting loads in cleanroom environments

No accessories available for this product.

Quick Summary

The AN-VT8FT Tunable Vapor Tight offers 45W to 80W selectable wattage at 130 lm/W, ETL certified, IP65 rated, with 3CCT selection (3000K/4000K/5000K), 10,040 lumens max, and 50,000-hour lifespan.

Frequently Asked Questions

What wattage options does the AN-VT8FT support?
45W, 60W, 70W, and 80W field-selectable wattage, allowing a single fixture to serve multiple lighting requirements.
Is the AN-VT8FT suitable for wet locations?
Yes, IP65 rated for wet, damp, and vapor-prone environments including car washes, parking garages, food processing, and cold storage.
What color temperatures can be selected?
3000K, 4000K, and 5000K field-selectable CCT to match different application requirements.
Is it ETL certified?
Yes, ETL certified for safe use in commercial and industrial wet/damp locations.
