A-SN09VR-PH-Z10 PIR Motion Sensor 0-10V Dimming Zhaga18 Z10 Base Compatible with Daylight Harvesting

12VDC Input IP65 Waterproof 120° Detection Angle 5-Year Warranty BLE App & Remote Control

A-SN09VR-PH-Z10

Core Functions, Adjustable Parameters & Installation Notes

Product Description:

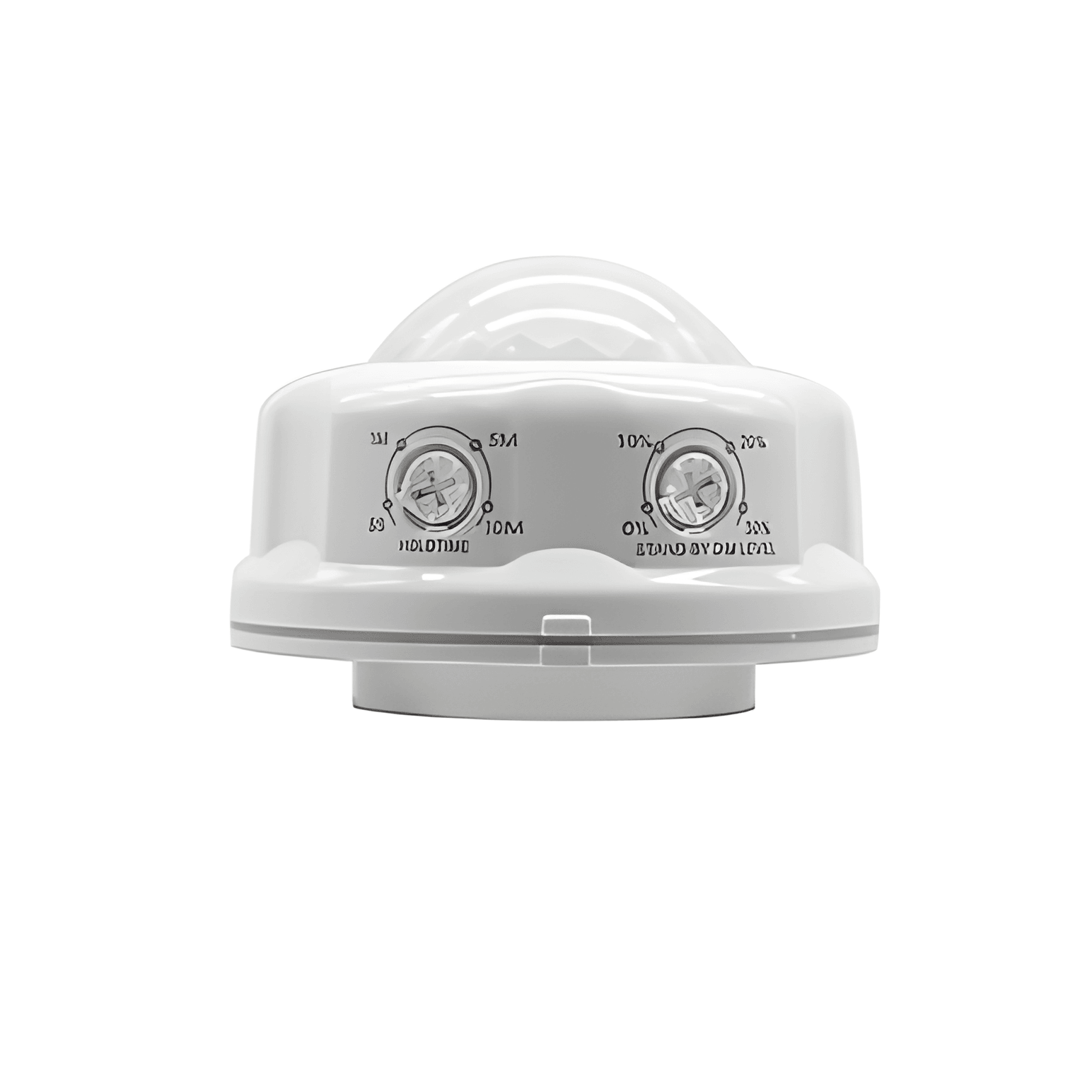

The A-SN09VR-PH-Z10 PIR motion sensor is a high-performance lighting control solution engineered for flexible and intelligent illumination management, compatible with both Zhaga18 and Z10 bases for seamless integration. Featuring 12VDC input and 0-10V dimming output, it delivers precise brightness control with multiple operation modes including rotator adjustment, remote control, and app control for the BLE version. Equipped with a built-in daylight harvesting function, the sensor automatically adjusts artificial light brightness based on ambient natural light levels, optimizing energy efficiency.

Boasting a 120° Fresnel lens detection angle, a maximum detection distance of 3m/9ft, and a ceiling mountable design with a maximum installation height of 12m/39ft, this PIR sensor offers wide and reliable motion detection with adjustable detection area (25%/50%/75%/100%, default 100%). It features customizable parameters including hold time (5s to 120min), daylight threshold (2Lux to 400Lux, disable option), standby dimming level (0%/10%/20%/30%/50%), and standby period (25min to +∞, default infinite), paired with a dusk/dawn sensing function that differentiates natural and artificial light for automatic on/off control.

Built for durability with an IP65 waterproof rating, the sensor operates in a wide temperature range of -20°C~+60°C and comes with a 5-year warranty for long-term reliability. Its warm-up period is 50s with a standby current of less than 30mA, complying with CE and ROHS standards. The sensor supports ON/OFF and 0-10V dimming output, with a memorization function for the last used settings for user convenience. Ideal for ceiling-mounted lighting control, it features a straightforward wiring design and professional performance for smart lighting applications.
