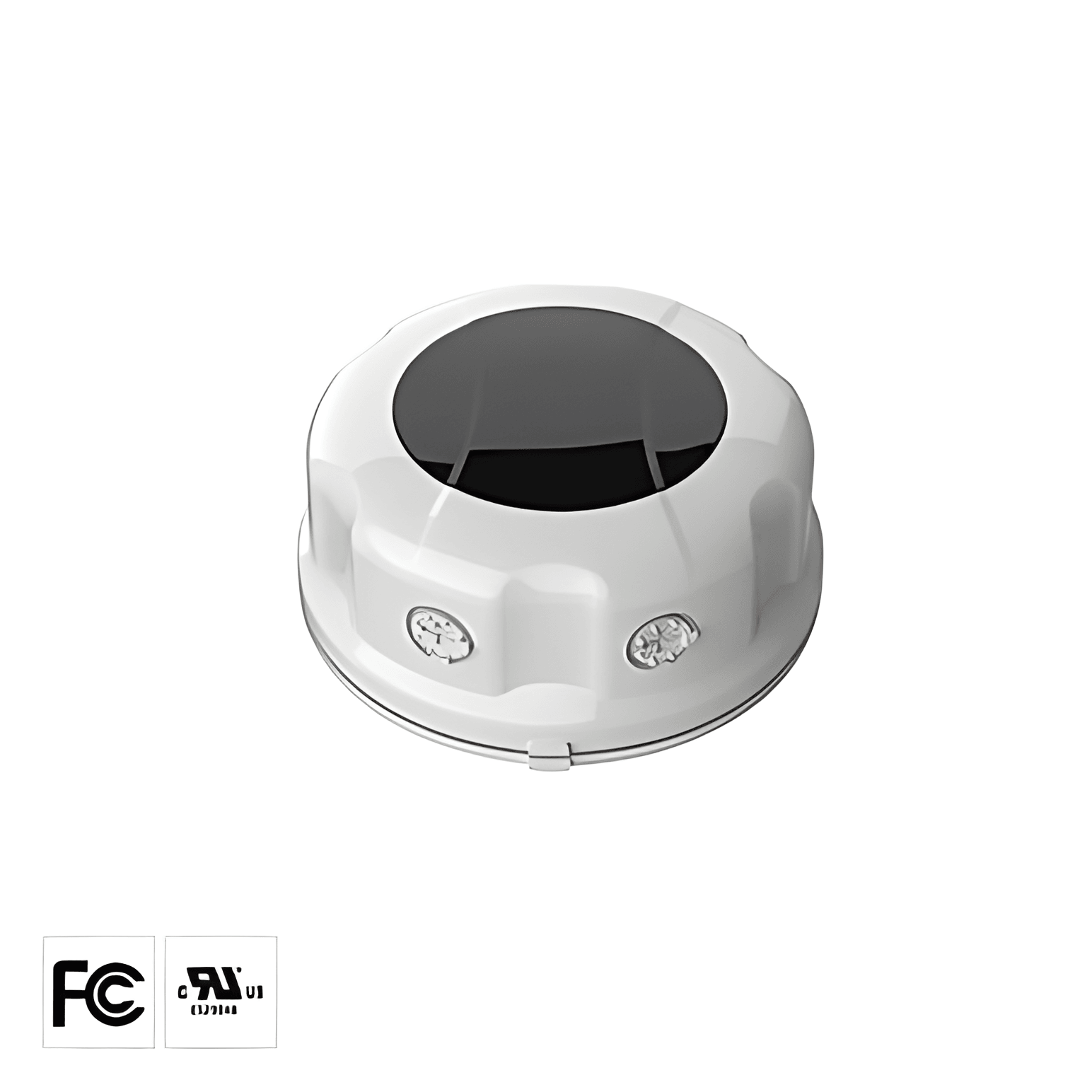

Classic round design A-SN09VR-MS-Z10 microwave sensor with programming rotators and compact dimensions
A-SN09VR-MS-Z10 · Occupancy Sensors

Microwave Sensor A-SN09VR-MS-Z10

Lights On When Someone's There. Off When They're Not. Energy Savings on Autopilo

SKU: A-SN09VR-MS-Z10|
In Stock
✓
$22.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

Create a Pro AccountRequest a Quote
Request Bulk QuoteFree Lighting Design
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Lights On When Someone's There. Off When They're Not. Energy Savings on Autopilot.

The A-SN09VR-MS-Z10 is a 5.8GHz microwave motion sensor with 15m range, 0-10V dimming output, and built-in daylight harvesting. Detects motion through light covers and fixture housings. Zhaga/Z10 compatible for plug-and-play installation on outdoor LED fixtures.

5.8GHz Microwave — Detects Through Covers

Radar-based detection penetrates light fixture housings and diffusers. PIR sensors can't do this. 15m (49ft) range covers large areas with one sensor.

Anti-Interference Patent

Patented technology prevents false triggers from HVAC, adjacent sensors, and environmental movement. Critical for warehouses and multi-sensor installations.

Daylight Harvesting + BLE App

Auto-dims when natural light is sufficient. Configure via Bluetooth app, rotator, or IR remote. No ladder needed for programming.

Request Free Photometric LayoutGet a Quote

Frequency

5.8 GHz
Microwave radar

Range

15m / 49ft
Max detection

Dimming

0-10V
Continuous output

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
5.8 GHz
Frequency
15m / 49ft
Range
0-10V
Dimming

Electrical

DimmingAnti-Interference with Daylight Harvesting
Input Voltage12-24VDC
Supply Current>50mA
Output Control0-10V DIM / Switching

Physical

Compatible BaseZ10
Frequency5.8GHz ±7MHz (microwave)
Detection Range15m / 49ft
FunctionsDaylight harvesting, photocell on/off, 0-10V dimming
Warm-up Period10seconds

Certification

CertificationsUL

No accessories available for this product.

Related Products

PIR Sensor A-SN09VR-PH-Z10

PIR Sensor A-SN09VR-PH-Z10

$22.00

Frequently Asked Questions

What is Microwave Sensor A-SN09VR-MS-Z10 best used for?
The Microwave Sensor A-SN09VR-MS-Z10 is a versatile LED lighting solution suitable for a wide range of commercial and industrial applications. Contact our team for a free lighting design to find the best configuration for your space.
How do I install Microwave Sensor A-SN09VR-MS-Z10?
Installation should be performed by a licensed electrician. Each Auvolar fixture includes detailed installation instructions and mounting hardware. Key steps: 1) Turn off power at the breaker, 2) Mount the bracket or housing, 3) Connect wiring per the included diagram, 4) Secure the fixture and restore power. Auvolar offers free photometric lighting design to help plan optimal fixture placement and spacing. Contact us at sales@auvolar.com or call (626) 364-9198 for assistance.
What is the warranty on Microwave Sensor A-SN09VR-MS-Z10?
Most Auvolar LED fixtures come with a standard 5-year warranty covering manufacturing defects. Our LED drivers are rated for 100,000+ hours of operation. Contact our support team for warranty details and claims.
Does this product qualify for utility rebates?
Many Auvolar products are DLC certified, which qualifies them for utility rebates ranging from $20 to $150+ per fixture depending on your local utility program. Check our Rebate Finder tool or contact us for assistance with your specific utility.
Do you offer volume pricing for contractors?
Yes! We offer competitive wholesale pricing for contractors, electricians, and distributors. Contact our sales team at sales@auvolar.com or call for a custom quote on bulk orders.
What is the shipping time?
In-stock items ship within 1-2 business days from our City of Industry, CA warehouse. Standard shipping takes 3-7 business days depending on your location. Expedited shipping options are available at checkout.
