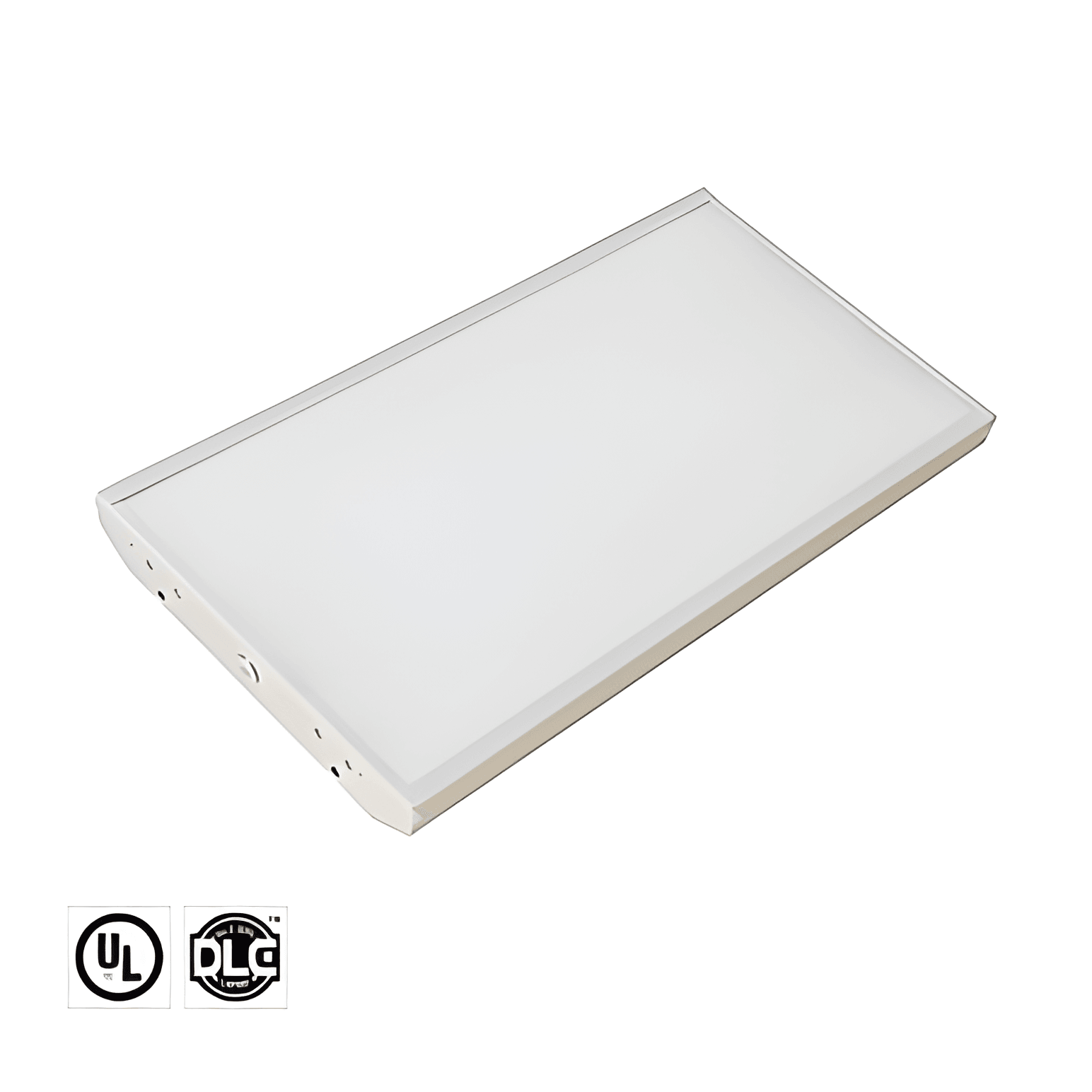

Linear High Bay Light A-LHB-NV(HV)xK-02

Third-party logistics (3PL) facilities with 40–50 ft clear heights and 5–6 ft VNA aisles represent the most demanding lighting application in warehousing — requiring high-lumen vertical illuminance deep into rack canyons where turret truck operators pick at heights exceeding 35 ft. The A-LHB-02 at 160–320W delivers up to 51,200 lumens in a linear form factor that directs output precisely down the aisle corridor, achieving the ≥1 fc vertical illuminance at the highest pick face mandated by IES RP-7-21. At these mounting heights, round UFO fixtures lose 40–60% of useful output to rack tops and cross-aisle spill. The 320W model replaces 750–1,000W metal halide with 55–68% energy savings, and the 0-10V dimming interface enables aisle-by-aisle occupancy switching that delivers an additional 35–45% savings in facilities with <50% aisle utilization at any given time. UL + ETL dual certification satisfies all U.S. jurisdictions including strict AHJ requirements. IP65 handles the significant airborne dust in high-traffic concrete-floor 3PL operations. Generate a free LightSpec AI vertical illuminance study with your exact rack height and aisle width to validate compliance before specifying.

Heavy manufacturing facilities with 30–45 ft bays housing large equipment — stamping presses, CNC machining centers, robotic welding cells — require high-output linear illumination that can be mounted above crane rails while still delivering 50–100 fc at the work surface 25–35 ft below. The A-LHB-02 at 320W produces approximately 51,200 lumens in a 4-foot linear body, creating continuous light lines that eliminate the inter-fixture dark zones where quality defects go undetected on moving production lines. IES RP-7-21 and IESNA DG-29 specify ≤2:1 uniformity for precision manufacturing — achievable with 12–15 ft row spacing at 30 ft mounting height. The IP65-rated housing withstands the metalworking fluid aerosol, grinding dust, and high-pressure cleaning common in heavy industrial environments without the seal degradation that forces premature replacement of lower-IP fixtures. At 160 lm/W class efficacy, the A-LHB-02 typically operates at 0.5–0.7 W/sf — well below the ASHRAE 90.1 manufacturing allowance of 0.85 W/sf. UL + ETL dual listing streamlines the permitting process across all jurisdictions. Run a free LightSpec AI simulation to model task-plane illuminance at each workstation before finalizing your fixture schedule.

Large-format home improvement and building supply retailers operate in 80,000–140,000 sf facilities with 25–35 ft open ceilings and 15–25 ft product racking that creates deep aisle canyons where traditional point-source lighting cannot maintain acceptable vertical illuminance on merchandise faces. The A-LHB-02 linear form factor directs light along the aisle corridor, delivering 50–75 fc at shelf face with CRI >80 for accurate color rendering of paint, flooring, tile, and lumber — product categories where color accuracy directly affects purchase decisions and return rates. At 160–320W producing up to 51,200 lumens, a single fixture covers 20–30 linear feet of aisle depending on mounting height, reducing total fixture count by 30–40% compared to UFO alternatives while achieving superior vertical uniformity. UL + ETL certification ensures seamless building permit approval across all jurisdictions. The 100,000-hour life eliminates the $20–$30/fixture re-lamping cost every 2–3 years that retail chains budget for HID technology. Design your aisle lighting layout free with LightSpec AI to optimize fixture count and minimize over-lighting in cross-aisle intersections.

Industrial cold chain distribution centers operating at -20°F to 35°F with narrow pick aisles between pallet racks present a dual challenge: extreme environmental conditions that destroy standard fixtures, and narrow aisle geometry that demands directional light distribution. The A-LHB-02 addresses both with IP65 fully gasketed construction rated to -40°F and a linear optical path that concentrates output down narrow freezer aisles instead of wasting lumens on pallet rack tops. At 160–320W delivering up to 51,200 lumens, the fixture provides the 15–25 fc required by IES RP-7 for cold storage while consuming 60–75% less power than the HPS and metal halide fixtures still operating 24/7 in legacy cold chain facilities. The die-cast aluminum housing with UV-stabilized powder coat resists ammonia refrigerant exposure and chlorinated wash-down chemicals that degrade painted-steel housings within 18 months. UL + ETL certification is mandatory for cold storage facility insurers and operators in most U.S. markets. At typical cold storage electricity rates and 24/7 operation, each 200W fixture saves $420–$550/year versus a 400W HPS — achieving ROI in under 12 months before utility rebates. Use LightSpec AI to model freezer aisle coverage free.

Large gymnasium vaults with 35–45 ft peak heights — common in high school, university, and community recreation centers — demand high-output fixtures that can deliver 50–75 fc at court level from extreme mounting distances while maintaining the strict glare control IES RP-6 requires for athletic spaces. The A-LHB-02 at 280–320W produces 44,800–51,200 lumens in a linear form factor that creates uniform light lines across court surfaces, eliminating the bright spot/dark gap scalloping pattern that UFO fixtures create at wide spacing. This uniformity is critical for ball tracking — IES RP-6 requires vertical illuminance ≥50% of horizontal at net and basket height to prevent "lost ball" visual interruptions during play. The linear form factor also integrates more aesthetically with the exposed steel structure common in modern gymnasiums, avoiding the "UFO invasion" appearance that architects reject. 0-10V dimming enables multi-scene programming: 100% for competition, 70% for practice, 40% for fitness classes, 20% for cleaning. At 160–320W the A-LHB-02 achieves 0.5–0.8 W/sf — well within ASHRAE 90.1's 1.1 W/sf gymnasium allowance. UL + ETL certified. Model your gymnasium free with LightSpec AI to confirm court-level uniformity and glare angles.
