Indoor Sports & Recreation
LED Lighting Solutions

IES Illuminance Standards for Indoor Sports

Recommended foot-candle levels by venue type per IES standards

Source: IES Lighting Handbook, IES RP-6 (Sports Lighting). Always verify with local AHJ — municipal codes and league requirements may impose stricter standards.

Lighting Solutions by Venue Type

Design parameters, example configurations, and recommended products for each sports & recreation application

🏀 School & University Gymnasium

Multi-purpose school gymnasiums host basketball, volleyball, assemblies, and community events — each with different lighting needs. Athletes looking upward (volleyball serves, basketball rebounds) are directly exposed to ceiling fixtures, making anti-glare optics essential. Legacy metal halide fixtures require 15 minutes to reach full brightness, disrupting event schedules. Schools need instant-on capability and dimmable fixtures for assemblies vs. competitive play.

Design Parameters

Target illuminance	50–75 fc
Min illuminance	30 fc
CRI	≥80
Uniformity	≤1.5:1 (avg:min)
Mounting height	20–30 ft
Key features	Anti-glare, instant-on, dimmable

Example Configuration

12,000 sq ft gymnasium: 24 × 200W UFO High Bay (oH Series) at 25ft, anti-glare lens, 0-10V dimming for assembly mode (30%) vs. game mode (100%)

Recommended Products

UFO High Bay oH Series

150W–240W

UFO High Bay HBA Series

100W–200W

PIR Sensor

Accessory

💪 Fitness Center & Health Club

Fitness centers combine cardio floors, free weight areas, and group exercise studios — each requiring different light levels and ambiance. Cardio zones need bright, energizing light (5000K), while yoga studios demand warm, dimmable settings. Weight rooms need shadow-free illumination so lifters can see form in mirrors. Operating 16–20 hours daily, energy costs are a major concern. Multi-zone dimming with occupancy sensors delivers both atmosphere control and substantial savings.

Design Parameters

Target illuminance	30–50 fc
Min illuminance	20 fc
CRI	≥70
Mounting height	15–20 ft
CCT	4000K–5000K
Key features	Multi-zone dimming, occupancy sensors

Example Configuration

25,000 sq ft health club: 30 × 150W HBA (cardio/weights) + 12 × 100W HBA (studios) with zone dimming — 40% less energy than fluorescent

Recommended Products

UFO High Bay HBA Series

100W–150W

UFO High Bay oH Series

60W–100W

PIR Sensor

Accessory

🏢 Community Recreation Center

Community recreation centers serve as multi-purpose facilities — gymnasiums, meeting halls, polling stations, and event venues. Lighting must adapt from bright athletic play to dimmed social events. These publicly funded facilities face strict energy budgets and long approval cycles, making utility rebate eligibility (DLC) critical for project approval. Occupancy sensors prevent lights burning in empty rooms during off-peak hours, a common waste issue in municipal buildings.

Design Parameters

Target illuminance	30–50 fc
Min illuminance	20 fc
CRI	≥70
Mounting height	20–30 ft
CCT	4000K–5000K
Key features	Occupancy sensor, DLC certified, dimmable

Example Configuration

18,000 sq ft multi-use hall: 30 × 200W oH Series with occupancy sensors, dimming to 30% for community events, 100% for basketball leagues

Recommended Products

UFO High Bay oH Series

150W–240W

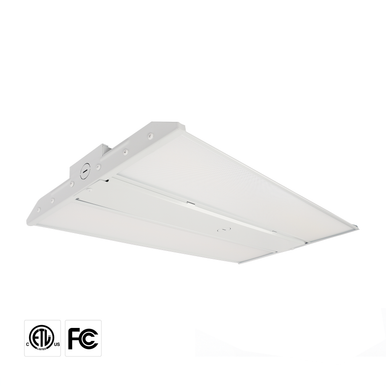

Linear High Bay AN-LB2/4FT

165W–300W

PIR Sensor

Accessory

🏊 Indoor Swimming Pool & Natatorium

Natatoriums present the harshest indoor lighting environment: constant high humidity (60–80% RH), chlorine-laden air that corrodes metal housings and degrades standard optics within 2–3 years, and reflection off the water surface that creates disabling glare for swimmers and lifeguards. IP65-rated vapor tight or specially sealed fixtures are mandatory — standard high bays will fail prematurely. Anti-corrosion housing (316 stainless or marine-grade coated) extends fixture life to match the 10+ year LED driver lifespan.

Design Parameters

Target illuminance	30–50 fc
Min illuminance	20 fc
CRI	≥70
IP rating	IP65 minimum
Mounting height	30–50 ft
Key features	Anti-corrosion, IP65, chlorine-resistant

Example Configuration

15,000 sq ft natatorium: 40 × 80W Vapor Tight VT8FT (pool deck) + 12 × 240W oH (spectator seating at 40ft), all IP65 rated

Recommended Products

Vapor Tight VT8FT

45–80W

UFO High Bay oH Series

200W–240W

Linear High Bay AN-LB2/4FT

200W–300W

🎾 Indoor Tennis & Pickleball Court

Tennis and pickleball demand the highest visual performance of any indoor recreation activity. Players must track a small, fast-moving ball (pickleball travels 25–40 mph, tennis serves exceed 100 mph) against varying backgrounds. Any lighting flicker creates a stroboscopic "frame-skip" effect (IEEE 1789) that makes the ball appear to jump or disappear mid-flight. Uniformity must be ≤1.5:1 — dark spots on the court create dangerous blind zones where players lose sight of the ball. High CRI (≥80) ensures court line colors remain distinguishable.

Design Parameters

Target illuminance	50–75 fc
Min illuminance	30 fc
CRI	≥80
Uniformity	≤1.5:1 (avg:min)
Mounting height	20–30 ft
Key features	Flicker-free (<1%), anti-glare, high uniformity

Example Configuration

8 pickleball courts (20,000 sq ft): 48 × 200W oH Series at 25ft with anti-glare optics, achieving 60 fc avg and 1.4:1 uniformity

Recommended Products

UFO High Bay oH Series

150W–240W

Linear High Bay AN-LB2/4FT

165W–300W

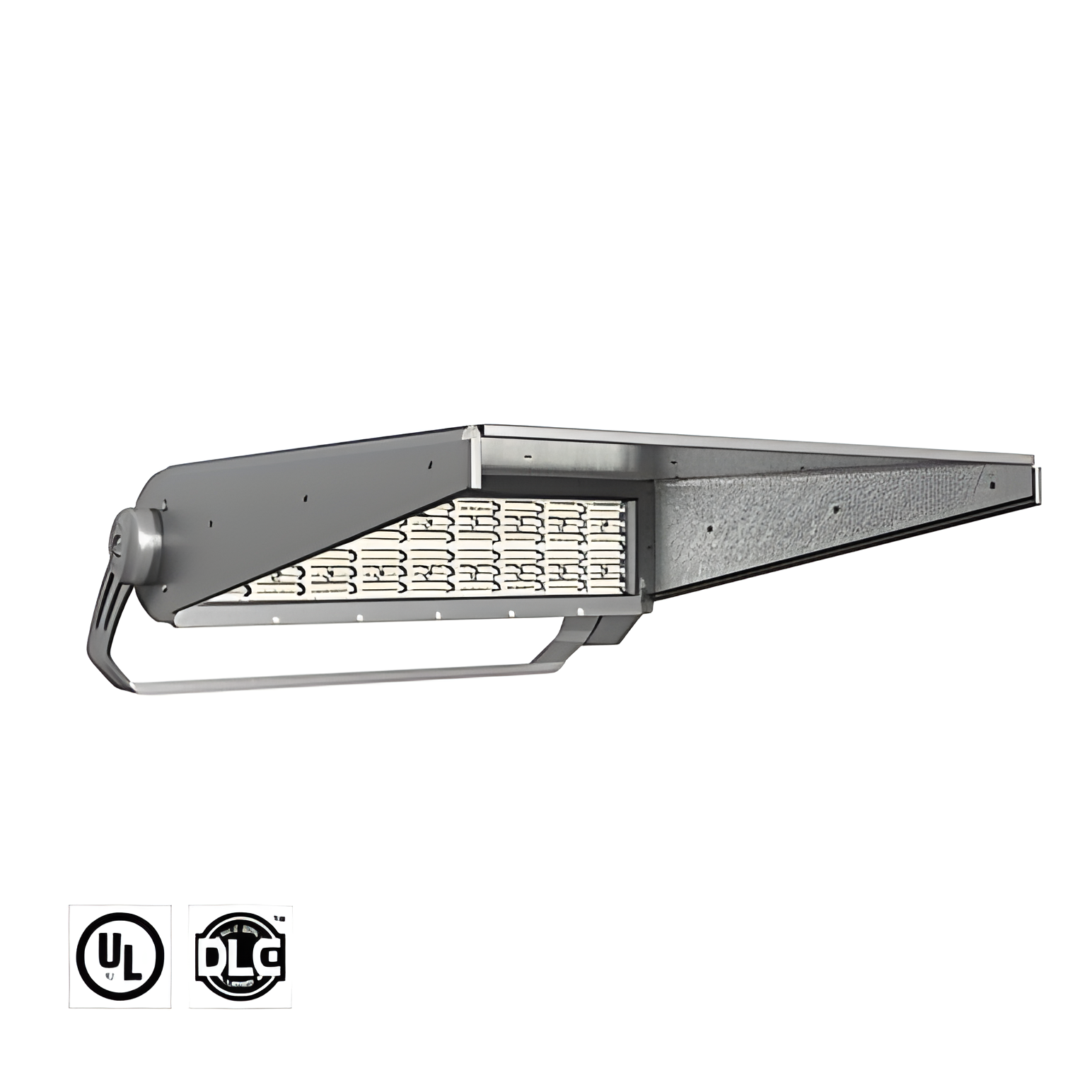

ISF Stadium Light

400W–1200W

LED vs Metal Halide: Sports Venue Energy Savings

Based on $0.12/kWh, 4,380 hrs/year (12 hrs/day × 365 days)

LED also eliminates the 15-minute metal halide warmup, enabling instant scheduling flexibility. DLC Premium certification qualifies for utility rebates of $30–$100 per fixture.
