IHL-Linear-High-Bay-01
IHL Series · Linear High Bay Lights

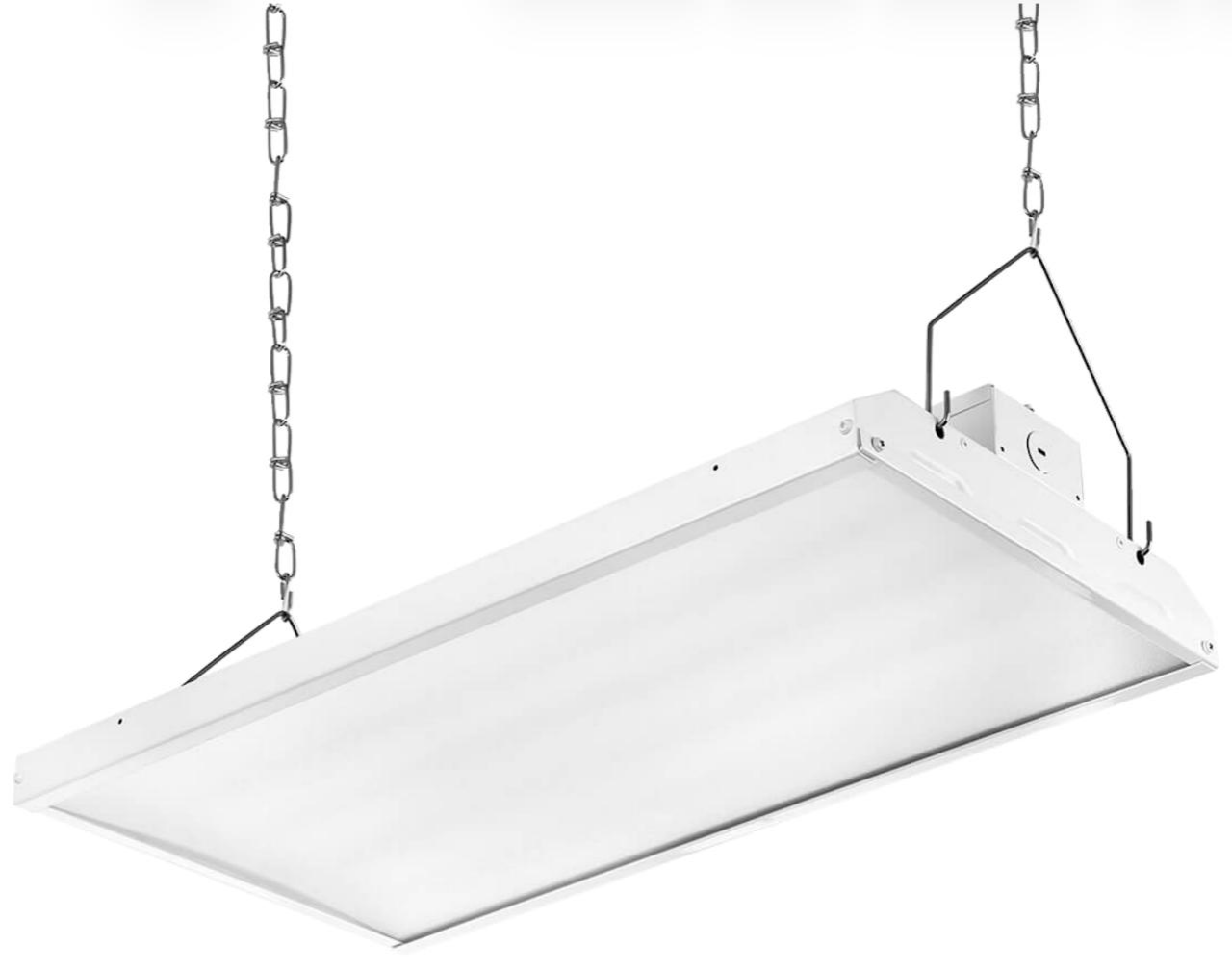

Linear High Bay Light IHL Series

110W 2 ft and 225W 4 ft LED linear high bay, 5000K, 120-277V, non-dimming, up to 130 lm/W.

SKU: AOK-110WIHL2-NV-L2-00-5080-120-A-WH|
Made to Order
✓5-Year Warranty
$55.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

Contact for Availability — Lead time varies; contact us for a delivery estimate
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com
IHL Series LED linear high bay light, 110W (2 ft) and 225W (4 ft), 5000K, 120-277V, non-dimming, up to 130 lm/W, IP40 / IK08, hook-chain mounting. Replaces up to 300W (110W) and 600W (225W) metal halide in warehouses, gyms and industrial spaces. 5-year limited warranty.
110W (2FT) / 225W (4FT)
Wattage Range
Up to 130 lm/W
Efficacy
14,300 lm (110W) / 29,250 lm (225W)
Max Lumens
IP40 / IK08
IP Rating
100,000 hr
L70 Lifespan
5-Year Limited Warranty
Warranty

Electrical

Wattage110W (2FT) / 225W (4FT)
VoltageAC 120-277V (347/480V special order)
DimmingNon-dimming

Optical

Lumens14,300 lm (110W) / 29,250 lm (225W)
EfficacyUp to 130 lm/W
CCT5000K
CRI80
Distribution120°
MH ReplacementUp to 300W (110W) / 600W (225W) metal halide

Physical

IP / IK RatingIP40 / IK08
HousingVented steel, natural-convection cooling
MountingHook chain
Dimensions2FT: 25.8 x 15.7 x 5.9 in carton / 4FT: 47.8 x 15.7 x 5.9 in carton
Operating Temperature-40°F to 122°F (-40°C to 50°C)

Warranty

Warranty5-Year Limited Warranty

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
110W ←8.82 lbs5.91 lbs25.79" × 15.71" × 5.91"1
225W17.64 lbs6.15 lbs47.8" × 15.71" × 5.91"1

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Photometric data for this product series. Contact sales@auvolar.com for detailed IES files and photometric reports.

Efficacy Comparison

lm/W — higher is better

IHL Series (this product)
150 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Commercial & Municipal Lighting Applications

Professional LED lighting solutions with IES standards compliance for nationwide installations. Request a free LightSpec AI photometric layout or request a project quote.

No accessories available for this product.

Frequently Asked Questions

What is Linear High Bay Light IHL Series best used for?
The Linear High Bay Light IHL Series is ideal for warehouses, manufacturing facilities, gymnasiums, and large indoor spaces that require powerful, uniform illumination. It delivers high lumen output with excellent energy efficiency, making it perfect for commercial and industrial applications.
How do I install Linear High Bay Light IHL Series?
Installation should be performed by a licensed electrician. Each Auvolar fixture includes detailed installation instructions and mounting hardware. Key steps: 1) Turn off power at the breaker, 2) Mount the bracket or housing, 3) Connect wiring per the included diagram, 4) Secure the fixture and restore power. Auvolar offers free photometric lighting design to help plan optimal fixture placement and spacing. Contact us at sales@auvolar.com or call (626) 364-9198 for assistance.
What is the warranty on Linear High Bay Light IHL Series?
Most Auvolar LED fixtures come with a standard 5-year warranty covering manufacturing defects. Our LED drivers are rated for 100,000+ hours of operation. Contact our support team for warranty details and claims.
Does this product qualify for utility rebates?
Many Auvolar products are DLC certified, which qualifies them for utility rebates ranging from $20 to $150+ per fixture depending on your local utility program. Check our Rebate Finder tool or contact us for assistance with your specific utility.
Do you offer volume pricing for contractors?
Yes! We offer competitive wholesale pricing for contractors, electricians, and distributors. Contact our sales team at sales@auvolar.com or call for a custom quote on bulk orders.
What is the shipping time?
In-stock items ship within 24 hours from our Ontario, CA warehouse. Standard shipping takes 3-7 business days depending on your location. Expedited shipping options are available at checkout.
