LED Government Lighting Guide
GSA P100 & Buy American Compliant
Complete design guide for federal offices, military bases, municipal buildings, and public safety facilities — from GSA P100 standards to fixture selection
65%
Energy Savings vs Legacy
BAA
Buy American Eligible
DLC
Premium Certified
Government Facility Illuminance Standards
Recommended foot-candle levels per GSA P100, IES RP-1, and UFC 3-530-01
General Office (Open Plan)
IES RP-1 office standard; GSA P100 §6.6
Private Office / Conference
Dimmable for AV/video conferencing
Corridors & Lobbies
ADA compliant controls required
Parking Lots & Garages
IES RP-20; security camera compatibility
Building Perimeter
IESNA full cutoff for Dark Sky zones
Military Barracks
Tamper-resistant fixtures required
Correctional Cells
Vandal-proof IK10 housing; ligature-resistant
Fire Station Apparatus Bay
Instant-on critical for emergency response
Pathways & Pedestrian Areas
Bollard or post-top fixtures; ADA compliant
Source: GSA P100, IES RP-1-22, UFC 3-530-01. Always verify with facility-specific requirements and local AHJ.
💡ESPC financing available. Energy Savings Performance Contracts allow federal agencies to fund LED upgrades from guaranteed energy savings — no upfront capital budget required. GSA and DOE provide contract vehicles specifically for lighting retrofits.
Fixture Selection Guide by Government Space
Match each government facility type to the right fixture, wattage, and specifications
Federal Offices
GSA standard office ⭐
Building Perimeter
Entrances, loading docks, security
Parking & Roadways
Lots, streets, base roads
Pathways & Grounds
Pedestrian walkways, campus paths
Corridors & Utility
Budget retrofit for hallways
Compliance & Procurement Requirements
Key regulations for government facility lighting procurement and design
GSA P100 §6.6
Facilities Standards for PBS: lighting power density & control requirements
Mandatory for all GSA-managed facilities
EISA 2007 §433
Energy Independence and Security Act: 30% energy reduction (2015 baseline)
Federal building energy mandate
Executive Order 14057
Federal sustainability — 100% carbon-free electricity by 2030
Accelerates LED conversion across agencies
Buy American Act (41 USC §§8301-8305)
Domestic end-product preference for federal procurement
Assembled-in-USA options available
IES RP-1-22
Recommended Practice for Office Lighting
Industry benchmark for government offices
ASHRAE 90.1-2022
Energy standard — occupancy sensors, daylight harvesting
Referenced by GSA P100 for new construction
DLC / DLC Premium
Utility rebate eligibility
$15–$100/fixture rebate potential
IESNA Full Cutoff
No upward light emission for Dark Sky & military OPSEC
Required at many DoD installations
⚠️Buy American Act compliance is non-negotiable for federal procurement. All fixtures must document domestic content. Auvolar provides Buy American compliance documentation and COO (Country of Origin) certificates for government orders. Contact us for GSA Schedule and ESPC pricing.
Lighting Solutions by Government Facility Type
Design parameters, example configurations, and recommended products for each government application
🏛️ Federal Office Buildings
Federal office buildings house thousands of employees working 8–10 hour days at computer workstations. GSA P100 mandates specific lighting power density (LPD) limits — typically 0.82 W/sq ft for offices — that legacy fluorescent systems often exceed. Executive Order 14057 requires agencies to reach 100% carbon-free electricity by 2030, accelerating LED retrofits across the GSA portfolio of 8,700+ buildings. The procurement process adds complexity: Buy American Act compliance, GSA Schedule pricing, and multi-year ESPC (Energy Savings Performance Contract) financing require products with documented domestic content and DLC certification.
Design Parameters
| Target illuminance | 30–50 fc |
| Min illuminance | 30 fc |
| Uniformity | 2:1 (avg:min) |
| Ceiling height | 9–12 ft |
| CCT | 3500K–4000K |
| Controls | Occupancy + daylight harvesting (GSA P100 req.) |
Example Configuration
Recommended Products
🎖️ Military Installations
Military bases operate 24/7 with a mix of office buildings, barracks, hangars, motor pools, and outdoor training areas covering thousands of acres. Operational security (OPSEC) requires full cutoff fixtures that emit zero upward light — preventing visibility from aircraft or satellites. Base housing and barracks need tamper-resistant, energy-efficient fixtures that withstand hard use. Outdoor lighting must balance security visibility with Dark Sky compliance, as many bases are located near sensitive astronomical or ecological areas. DoD Unified Facilities Criteria (UFC 3-530-01) governs lighting design standards.
Design Parameters
| Target illuminance | 20–50 fc (interior) / 2–5 fc (exterior) |
| Min illuminance | 15 fc (interior) / 1 fc (exterior) |
| Uniformity | 3:1 (avg:min) |
| CCT | 4000K (interior) / 4000K–5000K (exterior) |
| Optics | Full cutoff (BUG U0) — OPSEC mandatory |
| Procurement | Buy American Act + Berry Amendment |
Example Configuration
Recommended Products
🏢 Municipal Buildings
City halls, courthouses, libraries, and public works facilities are funded by taxpayers — every dollar saved on energy is a dollar available for services. Municipal buildings often have deferred maintenance with 20–30 year old fluorescent systems that waste 40–60% more energy than modern LED. Many municipalities lack capital budgets for lighting upgrades, making utility rebate programs and performance contracting (ESPC) essential funding mechanisms. Public-facing spaces like council chambers and courtrooms need professional-quality, dimmable lighting that supports video recording and AV systems.
Design Parameters
| Target illuminance | 30–50 fc (offices) / 50–75 fc (courtrooms) |
| Min illuminance | 30 fc |
| Uniformity | 2:1 (avg:min) |
| Ceiling height | 9–14 ft |
| CCT | 3500K–4000K |
| Controls | Occupancy + dimming (Title 24 if CA) |
Example Configuration
Recommended Products
🔒 Correctional Facilities
Prisons and jails present the most demanding lighting environment in government: fixtures must be vandal-proof (IK10 rated), ligature-resistant (no attachment points), and tamper-proof (security screws, sealed housings). Cells require 24/7 illumination for inmate monitoring, driving enormous energy costs. Outdoor recreation yards and perimeter fencing need bright, uniform security lighting with zero dark spots. The combination of harsh use, 24/7 operation, and massive facility footprints makes LED conversion one of the highest-ROI projects in government lighting. Many facilities still operate 1990s-era HID and fluorescent systems costing millions in annual electricity.
Design Parameters
| Target illuminance | 20–30 fc (cells) / 30–50 fc (common areas) |
| Min illuminance | 20 fc |
| Uniformity | 2:1 (avg:min) |
| Impact rating | IK10 minimum — vandal-proof housing |
| CCT | 4000K (interior) / 5000K (perimeter) |
| Special req. | Ligature-resistant, security-screw access |
Example Configuration
Recommended Products
🚒 Public Safety & Fire Stations
Fire stations and police precincts operate around the clock with unique lighting requirements. Apparatus bays need instant-on, high-output lighting for rapid vehicle deployment — the 15-minute restrike delay of metal halide is a safety hazard during emergency calls. Bunk rooms require dimmable, warm-CCT lighting that supports circadian rhythms for shift workers. Office areas for report writing follow standard office illuminance levels. Exterior bay aprons and parking areas need bright, uniform lighting for nighttime operations. The combination of 24/7 operation, high ceilings in apparatus bays, and energy-conscious municipal budgets makes LED an ideal solution.
Design Parameters
| Target illuminance | 30–50 fc (apparatus bay) / 30–50 fc (office) |
| Min illuminance | 20 fc |
| Uniformity | 3:1 (avg:min) |
| Bay ceiling height | 16–24 ft |
| CCT | 5000K (bays) / 3500K (bunk rooms) |
| Controls | Instant-on, bi-level dimming for bunk areas |
Example Configuration
Recommended Products
Recommended Products for Government Lighting

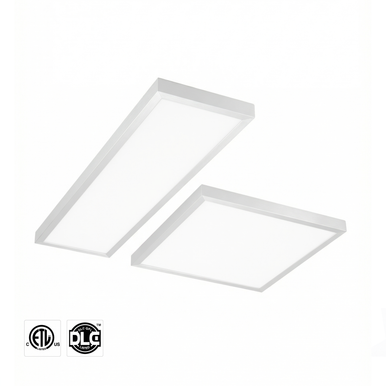

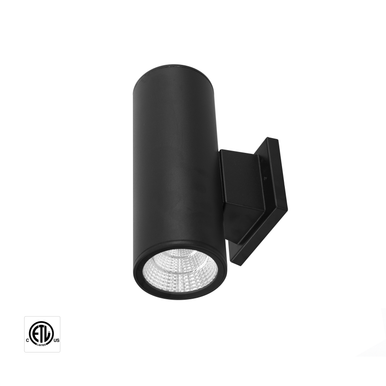

DLC certified, Buy American eligible troffers, area lights, wall packs, and bollards for government facilities
LED vs Legacy: Government Energy Savings Comparison
Based on $0.12/kWh, 4,380 hrs/year (12 hrs/day × 365 days for 24/7 facilities)
2×4 4-Lamp T8 Fluorescent
2×4 3-Lamp T8 Fluorescent
250W Metal Halide Wall Pack
400W Metal Halide Shoebox
100W HPS Bollard
ESPC financing allows agencies to fund upgrades from guaranteed savings. DLC-certified fixtures qualify for utility rebates of $15–$100 per fixture, further reducing payback.
Case Study
120,000 sq ft Federal Office Complex — Washington, D.C. Metro
Replaced 960 × 4-lamp T8 fluorescent troffers with Auvolar 40W LED Troffers (AN-TF24) across 6 floors of office space. Exterior upgraded with 80 × 150W LED Area Lights (OT Series) replacing 400W metal halide shoebox fixtures. Project funded through ESPC with zero upfront capital. GSA-approved, Buy American compliant. Facility exceeded EISA 2007 §433 energy reduction target by 18%. Occupancy sensors in restrooms and conference rooms provided additional 25% savings over LED baseline.
$72,000
Annual Energy Savings
22 mo
Payback (ESPC financed)
64%
Energy Reduction
Ready to upgrade your government facility lighting?
Get a free photometric layout, GSA P100 compliance review, Buy American documentation, and energy savings analysis for your government facility.
