200W-300W UL DLC LISTED AOK PLB series LED area light installed in a public square, delivering uniform, glare-free illumination with its zero uplight (BUG Rating U=0) design.
75-300W Area Lights · PLB Series

75W-300W Area / Shoebox Light PLB Series

Efficient lighting with up to 160 lm/W efficacy, covering 75W-300W range.

SKU: A-PLB150WS-NV-345KS-BZ|
In Stock
DLC Premium
UL Listed
5-Year Warranty
$150.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

🔧

⚠️ MOUNTING REQUIRED: Please select a mounting bracket from the to complete your installation.

In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Performance Meets Precision.

The PLB Series is engineered for parking lots and commercial areas where clean lines, tight beam control, and controlled light distribution matter. Built for contractors who need reliable performance without the complexity.

Tool-Free Lens Replacement — Maintenance Without the Hassle

Lenses click in and out without tools — faster field service, simpler component recycling, and no specialized labor for routine maintenance. When a lens needs replacing in year five, your crew handles it in under two minutes.

IES-Certified Optical Distribution — Zero Uplight (U0)

Optimized specifically for parking lot uniformity. Zero uplight (U0) eliminates all light above the horizontal plane. Controlled forward-throw optics minimize backlight and glare spillage onto adjacent properties.

Six Optional Installation Brackets

Providing flexibility and convenience to meet various installation requirements.

75W to 300W — Right-Sized for Mid-Scale Commercial

Three wattage tiers with field-selectable output cover everything from small retail plazas to multi-story parking structures. DLC qualified for utility rebate programs. Dual voltage (100-277V / 200-480V) for all commercial electrical systems.

Built to the Same Standard as the OT Series

Same LED platform, same driver quality, same surge protection, same 5-year warranty. The PLB is the OT's focused little brother — purpose-built for the most common commercial parking lot application.

Uplight Rating

U0
Zero uplight emission

Wattage Range

75–300W
Field-selectable output

Weight

< 15 lbs
Compact die-cast aluminum

Warranty

5 Years
Full replacement

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
Up to 160 lm/W
Efficacy
75-300W
Wattage
5-Year
Warranty
IP66
IP Rating

Electrical

Input Voltage100-277V AC (NV) / 277-480V AC (HV)

Optical

Distribution TypeType V
Beam DistributionType III / Type IV / Type V
CRIRa70 / Ra80 (optional Ra90)
EfficacyUp to 160lm/W
Lumen12,000 – 45,000 lm
Wattage75-300W

Physical

Finish / ColorPowder Coated (Bronze / Black / White)
IP/IK RatingIP66 / IK10
Lens MaterialPolycarbonate
Mounting OptionsType A–G Brackets (slip fitter, yoke, wall, pole adapter)
Operating Temperature-40°C to +50°C (-40°F to +122°F)

Certification

DLC ListedYes
UL ListedYes

Warranty

Warranty5 Years

Custom

HousingHeavy-duty die-cast aluminum

Features

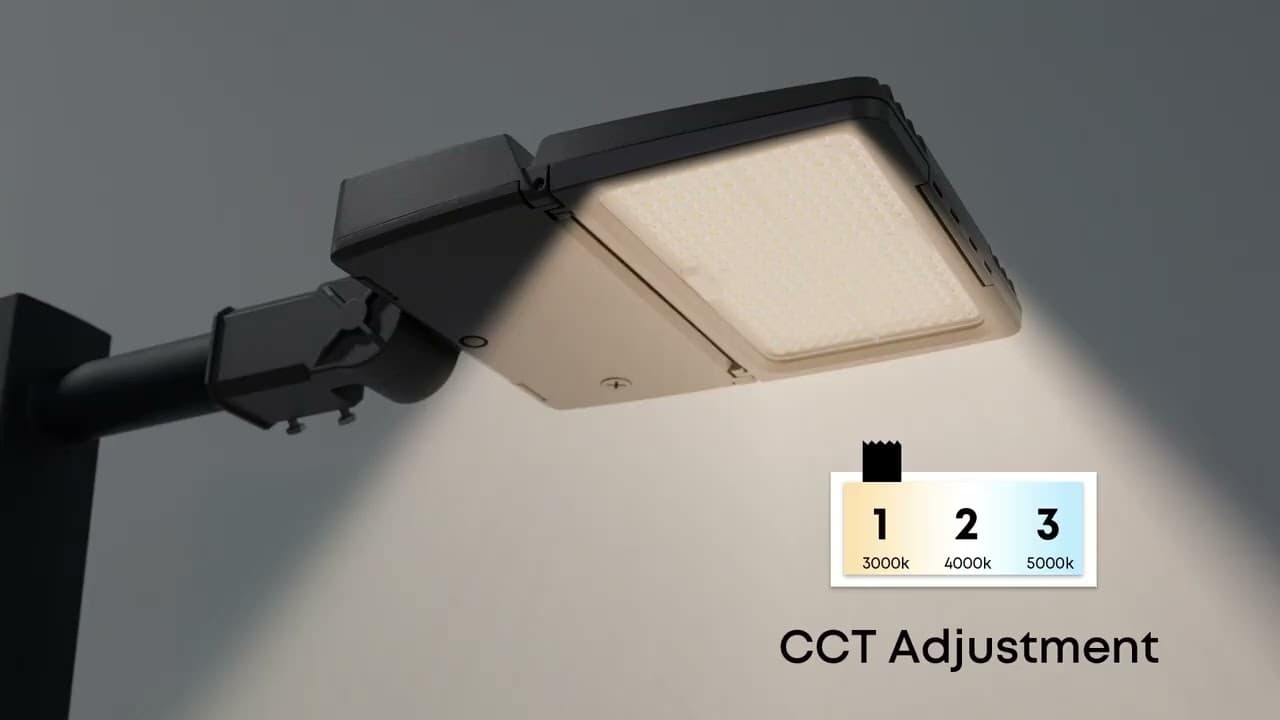

CCT Selectable3000K / 4000K / 5000K
Photocell ReceptacleBuilt-in + External
Surge Protection10KV/20KV Optional

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
150W7.05 lbs8.82 lbs22.63" × 13.97" × 5.71"1
300W8.82 lbs10.8 lbs29.33" × 14.37" × 5.71"1

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Lumen Output (lm)

Tested per IESNA LM-79-19 at 25°C, EVERFINE GO-2000A goniophotometer

Optic75W100W150W200W250W300W400W500W600W
Type III (Forward Throw (Asymmetric))12,04315,43121,64031,39937,34342,95058,05972,21586,370
Type IV (Semi-Circular (Forward))12,41515,90822,30932,37038,49844,27859,85574,44889,041
Type V (Circular (360° Symmetric))12,78716,38522,97833,34139,65345,60661,65176,68191,712
Efficacy (lm/W)170164153167159152154153153

Efficacy Comparison

lm/W — higher is better

PLB Series (this product)
170 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Versatile Lighting Solutions for Commercial Spaces

Explore tailored lighting configurations for diverse commercial environments

🏢

Parking Lot Illumination

Ensure safety and visibility in parking areas with the PLB Series, offering up to 160 lm/W efficacy and wattage options from 150W to 300W.

Standard: IES RP-20-98

Technical Requirements

  • Minimum 1.0 fc for parking areas

Recommended Specifications

300W with Type III distribution, 5000K CCT, 277-480V AC input
🏬

Retail Exterior Lighting

Enhance storefront visibility and attract customers with the PLB Series, featuring CCT selectable options of 3000K, 4000K, and 5000K.

Standard: IES RP-33-14

Technical Requirements

  • Minimum 5.0 fc for building facades

Recommended Specifications

150W with Type IV distribution, 4000K CCT, 100-277V AC input
🏗️

Construction Site Lighting

Provide reliable lighting in construction zones with heavy-duty die-cast aluminum housing and optional 20kV surge protection.

Standard: IES RP-7-17

Technical Requirements

  • Minimum 3.0 fc for active construction areas

Recommended Specifications

300W with Type V distribution, 5000K CCT, 277-480V AC input
🏞️

Park and Recreation Area Lighting

Illuminate pathways and recreational spaces with IP66 and IK10 rated PLB Series lights, ensuring durability and performance.

Standard: IES RP-6-15

Technical Requirements

  • Minimum 0.5 fc for pathways

Recommended Specifications

150W with Type III distribution, 3000K CCT, 100-277V AC input
🏢

Warehouse Perimeter Lighting

Secure warehouse perimeters with high lumen output of up to 45,000 lm and built-in photocell receptacle for automatic control.

Standard: IES RP-33-14

Technical Requirements

  • Minimum 2.0 fc for perimeter security

Recommended Specifications

300W with Type V distribution, 4000K CCT, 277-480V AC input

Quick Summary

The Auvolar PLB Series Area Light offers a wattage range of 75-300W with an efficacy of up to 160 lm/W, and is UL and DLC certified.

Frequently Asked Questions

What is the wattage range for the Auvolar PLB Series Area Light?
The wattage range for the Auvolar PLB Series Area Light is 75-300W.
What is the efficacy of the Auvolar PLB Series Area Light?
The efficacy of the Auvolar PLB Series Area Light is up to 160 lm/W.
What certifications does the Auvolar PLB Series Area Light have?
The Auvolar PLB Series Area Light is UL and DLC certified.
What is the operating temperature range for the Auvolar PLB Series Area Light?
The operating temperature range for the Auvolar PLB Series Area Light is -40°F to +122°F (-40°C to +50°C).
What is the lumen output for the Auvolar PLB Series Area Light?
The lumen output for the Auvolar PLB Series Area Light ranges from 11,250 to 45,000 lm.
