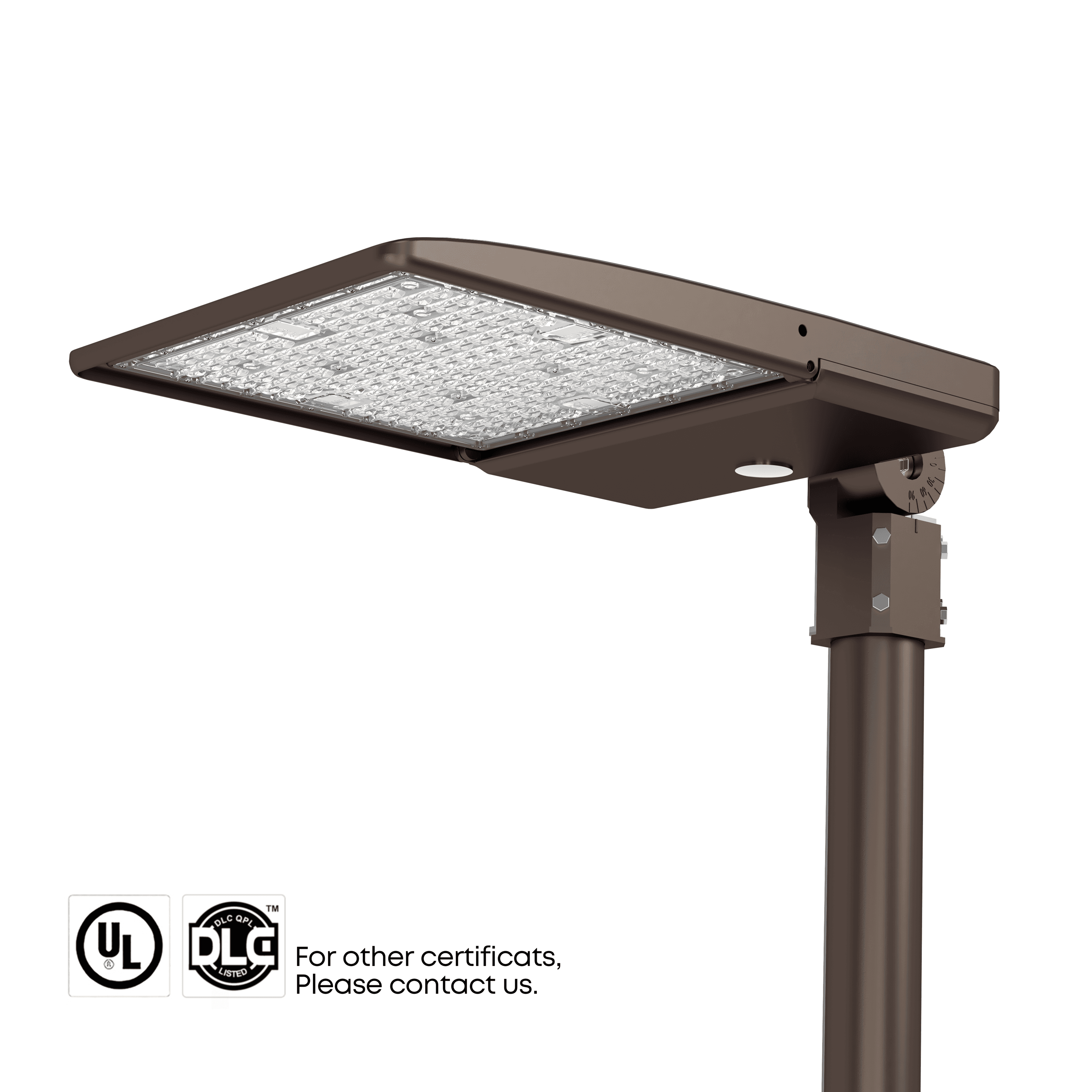

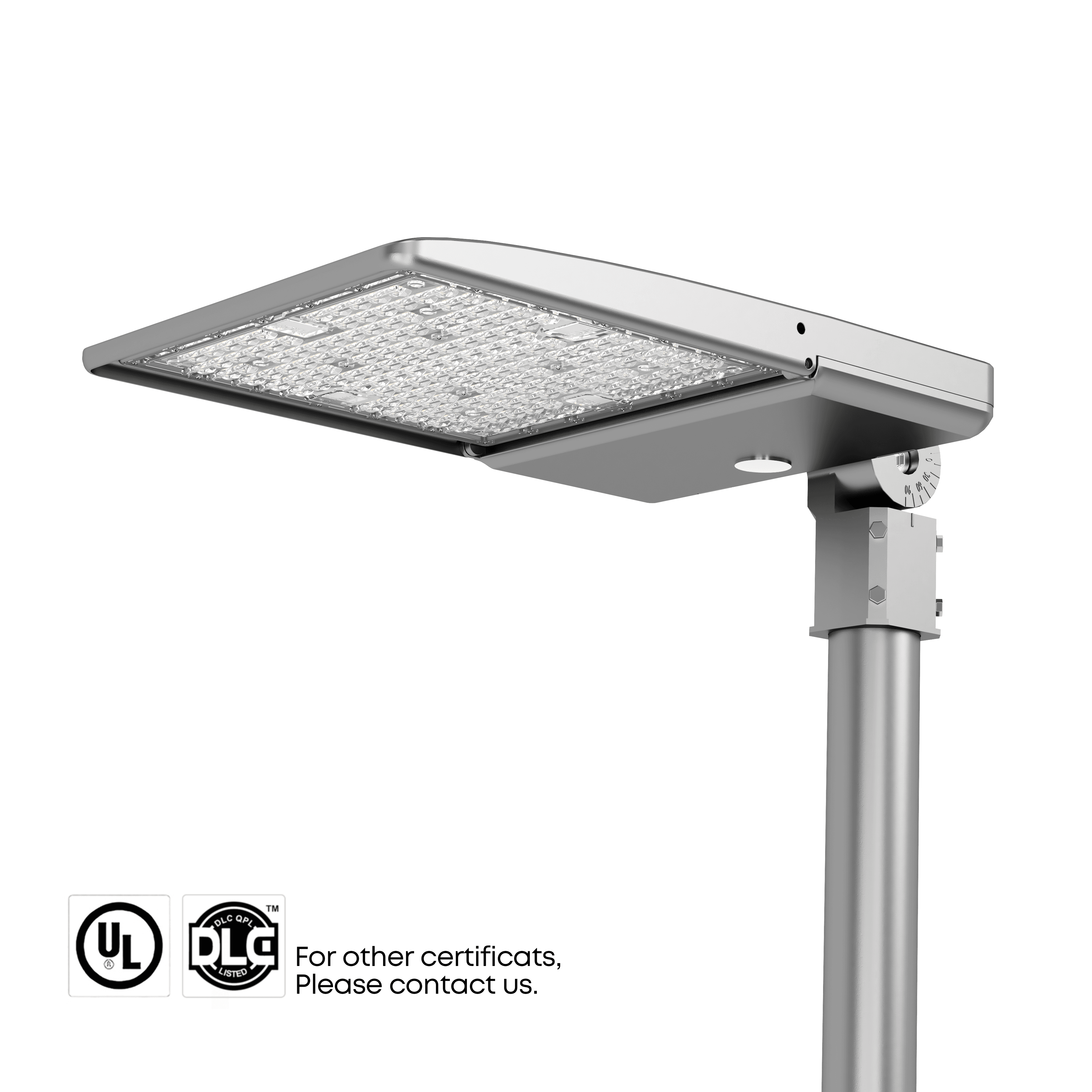

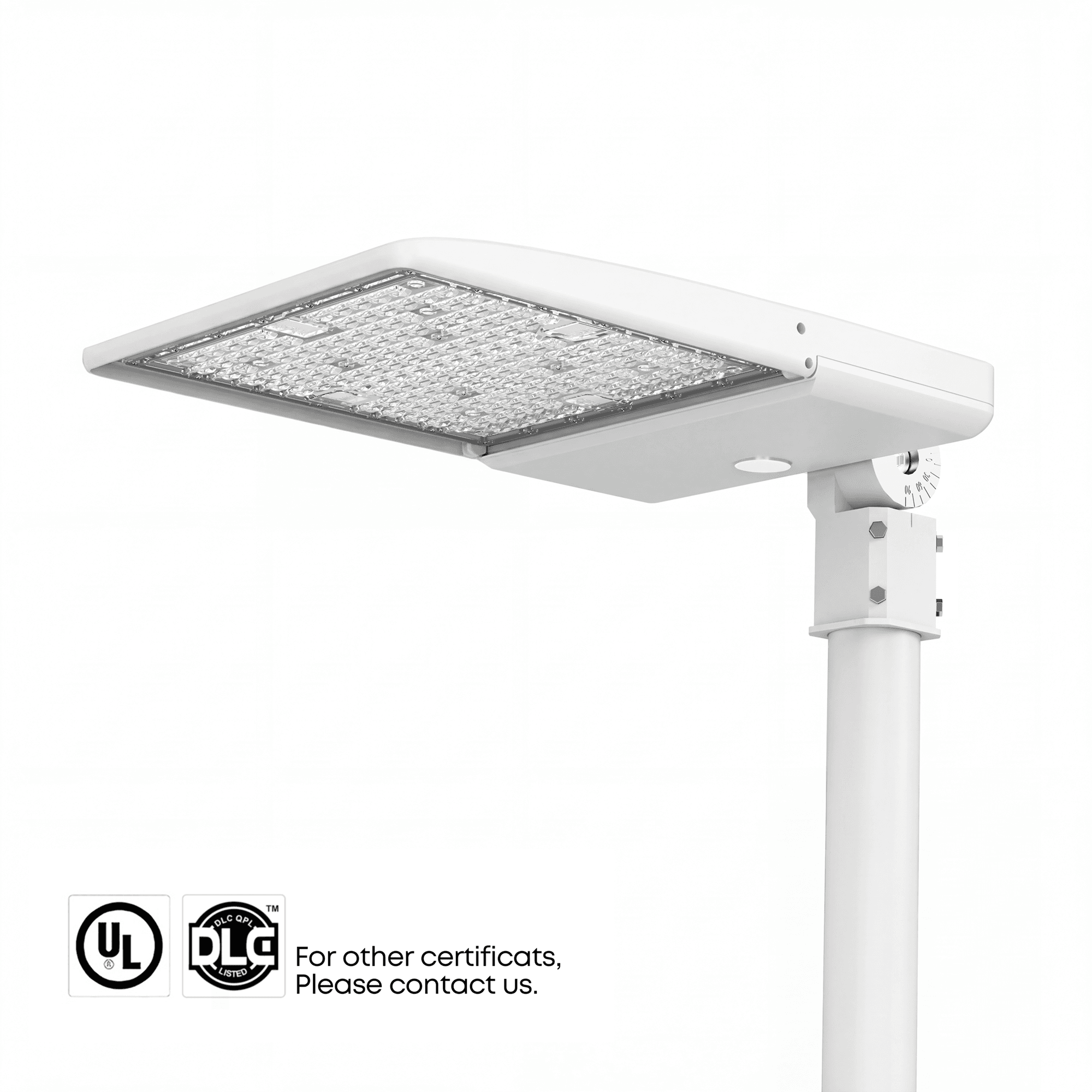

75W-800W Area Light / Tennis Light OT Series is a professional-grade LED luminaire engineered for outdoor area lighting for parking lots, roadways, sports facilities, and commercial properties. Designed for parking lots, municipal roadways, sports facilities, commercial plazas, and perimeter security lighting, this fixture delivers Up to 109,600 lm-lumen performance at Up to 172 lm/W efficacy — dramatically reducing energy consumption and maintenance costs compared to conventional HID, fluorescent, or incandescent alternatives.
Why 75W-800W Area Light /? LED Area Light UL Listed for Parking Lots and Roadways — built with Die-Cast Aluminum + Tempered Glass, Type III / Type IV / Type V (Rotatable 90°) photometric distribution for precise light placement, and backed by a 5-Year Limited Warranty warranty and L90B10 100,000 hours+ hour rated lifespan. UL Listed, DLC Premium Listed certified for safety and compliance with North American electrical codes.
Key Technical Features:
- Max Lumens: Up to 109,600 lm lm
- Efficacy: Up to 172 lm/W
- CRI: Ra70 / Ra80 (optional Ra90)
- IP Rating: IP66
- Input Voltage: 100-277V AC (NV) / 277-480V AC (HV)
- Dimming: 0-10V / PWM / DALI (Dim-to-Off ≤ 0.5W)
- Surge Protection: 10kV / 20kA (optional 20kV)
- LED Source: Seoul Semiconductor 5050
- Distribution: Type III / Type IV / Type V (Rotatable 90°)
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Mounting: Type A–G Brackets (slip fitter, yoke, wall, pole adapter)
- Warranty: 5-Year Limited Warranty
- Rated Life: L90B10 100,000 hours hours
Performance & Efficiency: Operating at Up to 172 lm/W luminous efficacy means this fixture delivers substantially more light per watt than legacy technology. Up to Up to 109,600 lm lumens of high-quality output ensures adequate illuminance levels while minimizing operating costs — with typical energy savings of 50–75% versus HID or fluorescent predecessors.
Build Quality & Durability: The Die-Cast Aluminum + Tempered Glass housing is engineered for IP66-rated weather and dust protection, reliable long-term outdoor or industrial operation. 10kV / 20kA (optional 20kV) surge protection guards against voltage spikes that can shorten LED driver life in commercial installations. With an operating range of -40°F to 140°F (-40°C to 60°C), this fixture maintains consistent performance across harsh seasonal temperature extremes.
Certifications & Compliance: UL Listed, DLC Premium Listed — meeting the requirements of commercial procurement specifications, energy codes (ASHRAE 90.1, Title 24), and utility rebate programs. DLC Premium listing qualifies this product for maximum utility incentives across the US and Canada.
Application Summary: Whether you are upgrading parking lots, municipal roadways, sports facilities, commercial plazas, and perimeter security lighting, the 75W-800W Area Light / Tennis Light OT Series delivers the performance, durability, and compliance needed for professional commercial and industrial installations. Backed by Auvolar's 5-Year Limited Warranty warranty and technical support, it is the reliable, code-compliant choice for specifiers, contractors, and facility managers.
