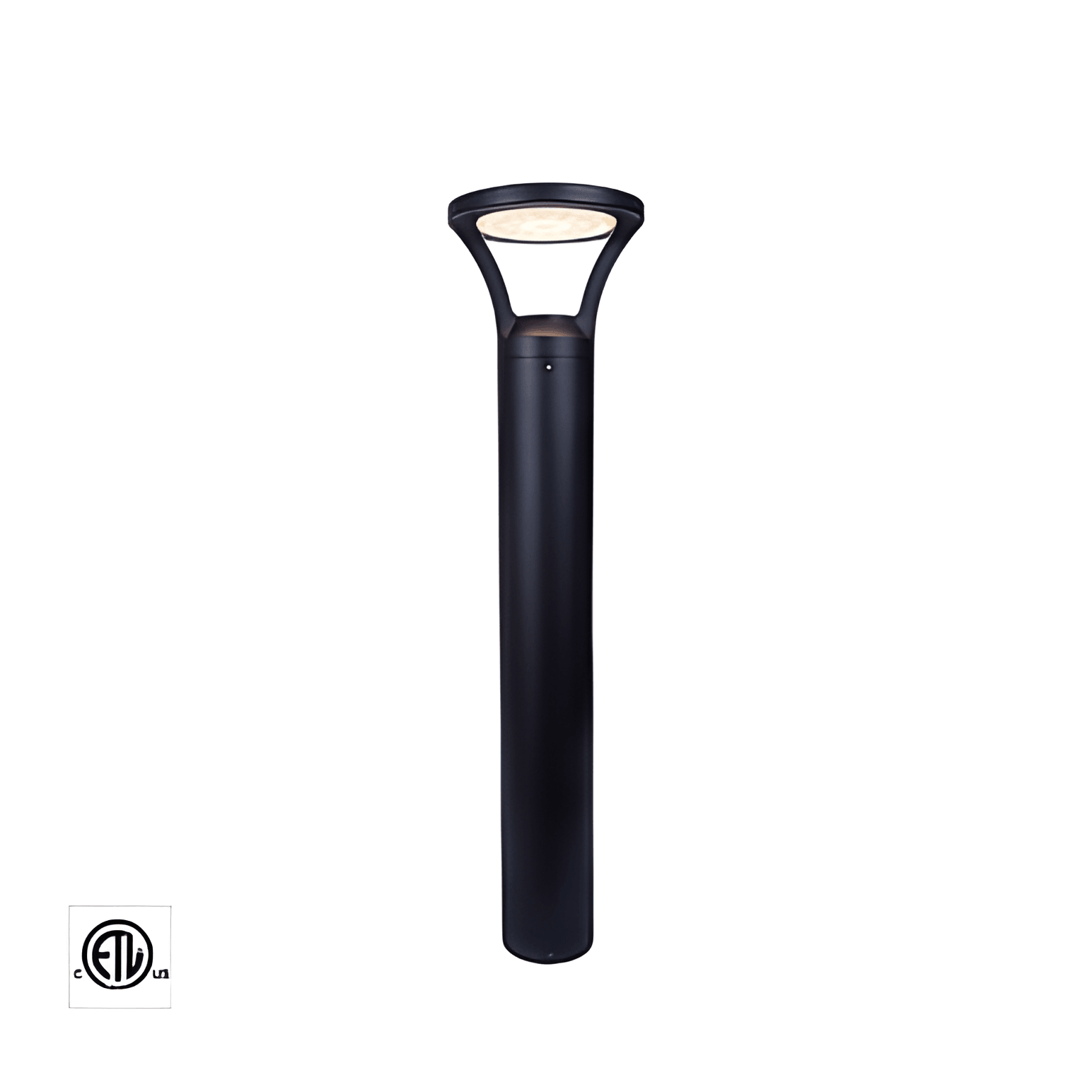

Adjustable 10W 18W 25W LED bollard light for outdoor pathway lighting.
A-B · Bollard Lights

LED Bollard Light A-B Series

Pathway Bollard That Survives Landscaping Crews and Northeast Winters

SKU: A-B25WS-NV-345KS-BZ|
In Stock
ETL Listed
5-Year Warranty
$224.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Pathway Bollard That Survives Landscaping Crews and Northeast Winters

The A-B series LED bollard light delivers 10W–25W of selectable output with IK08 impact resistance, IP65 weatherproofing, and 0-10V dimming — built for the real-world abuse that commercial landscape lighting endures.

IK08 Impact Protection — Because Landscapers Hit Things

Commercial bollards get struck by mowers, snow plows, hand trucks, and car bumpers. IK08-rated construction handles 5 joules of impact — equivalent to a 1.7kg weight dropped from 300mm. The bollard survives what kills cheap landscape fixtures within their first season.

10W/18W/25W Selectable — One Bollard for Every Spacing

Tight 15-foot spacing along a building entry? Use 10W. Wide 30-foot spacing along a parking lot pathway? Use 25W. Adjustable wattage with 3CCT selection (3000K/4000K/5000K) means contractors order one SKU and tune each bollard to its location at install.

0-10V Dimming — Save Energy After Midnight

Connect to a building automation system or standalone dimmer to reduce output during low-traffic hours. A property running bollards at 50% from midnight to 5 AM saves proportional energy every night, compounding savings over the 50,000+ hour fixture life.

143° Beam — Lights the Full Walkway from a 42-Inch Post

The wide 143° beam distribution pushes light outward across pathways rather than straight down. This means broader coverage between bollards, fewer units needed per run, and more uniform foot-candle levels across the walking surface.

IP65 + 120–277V — Weather and Voltage Proof

Sealed IP65 against rain, irrigation spray, and dust. Universal 120–277V input handles any commercial landscape lighting circuit. Available in Bronze and Black to match building and landscape design palettes.

Impact Rating

IK08
5J impact resistance

Wattage

10/18/25W
3-wattage adjustable

Beam Angle

143°
Wide path coverage

IP Rating

IP65
CRI 80, PF 0.92

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
IK08
Impact Rating
10/18/25W
Wattage
143°
Beam Angle
IP65
IP Rating

Electrical

Power Factor0.92
Dimming3CCT Selectable (3000K/4000K/5000K)
Voltage100-277V
Frequency50Hz

Optical

CCTSelectable (3000K/4000K/5000K)
CRI80
Beam Angle143 beam angle
Distribution TypeNarrow
LED ChipEverlite 2835 (120pcs)
Distribution143°

Physical

IP RatingIP65
IK RatingIK08
MountingGround mount bollard

Certification

CertificationsUL

Warranty

Warranty5-year warranty

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
25W11.2 lbs13.2 lbs10.6" × 10.6" × 40.6"1

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Standards Compliance

Based on max wattage lumen output per optic. Actual compliance depends on layout design and fixture count.

🏆
FIFA A
≥ 2400 lux avg
143°
FIFA C
≥ 1000 lux avg
143°
🏈
IES RP-6 Class I
≥ 100 fc avg
143°
🎾
IES RP-6 Class III
≥ 30 fc avg
143°

Beam Pattern & CBCP

Peak Center Beam Candlepower and throw ratings by optic.

143°
143° optic
Peak CBCP583 cd
Beam Angle143°
Throw RatingWide Flood (<30ft)
General sports lighting application

⚡ Quick Project Estimator

Select your sport and level for an instant fixture recommendation.

Recommended Optic
60°
Fixture Count
48-72
Pole Layout
4-6 poles
Target Level
500-1000 lux (FIFA C/D)
Mounting Height
50-60ft
Get Full Photometric Layout (Free) →

Custom AGi32-grade simulation with foot-candle grid, uniformity ratios, and pole spacing

Lumen Output (lm)

Tested per IESNA LM-79-19 at 25°C, EVERFINE GO-2000A goniophotometer

Optic10W18W25W
143° ()1,0001,8002,500
Efficacy (lm/W)100100100

Efficacy Comparison

lm/W — higher is better

A-B Series (this product)
100 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Commercial & Municipal Lighting Applications

Professional LED lighting solutions with IES standards compliance for nationwide installations. Request a free LightSpec AI photometric layout or request a project quote.

No accessories available for this product.

Quick Summary

The Auvolar LED Bollard Light A-B Series offers a 25W wattage range with ETL certification and a 5-year limited warranty, supporting 120-277VAC.

Frequently Asked Questions

What is the wattage of the Auvolar LED Bollard Light A-B Series?
The Auvolar LED Bollard Light A-B Series has a wattage of 25W.
What color temperatures are available for the Auvolar LED Bollard Light A-B Series?
The Auvolar LED Bollard Light A-B Series offers selectable color temperatures of 3000K, 4000K, and 5000K.
Is the Auvolar LED Bollard Light A-B Series ETL listed?
Yes, the Auvolar LED Bollard Light A-B Series is ETL Listed.
What is the warranty period for the Auvolar LED Bollard Light A-B Series?
The Auvolar LED Bollard Light A-B Series comes with a 5-Year Limited Warranty.
What is the IP rating of the Auvolar LED Bollard Light A-B Series?
The Auvolar LED Bollard Light A-B Series has an IP65 rating.
