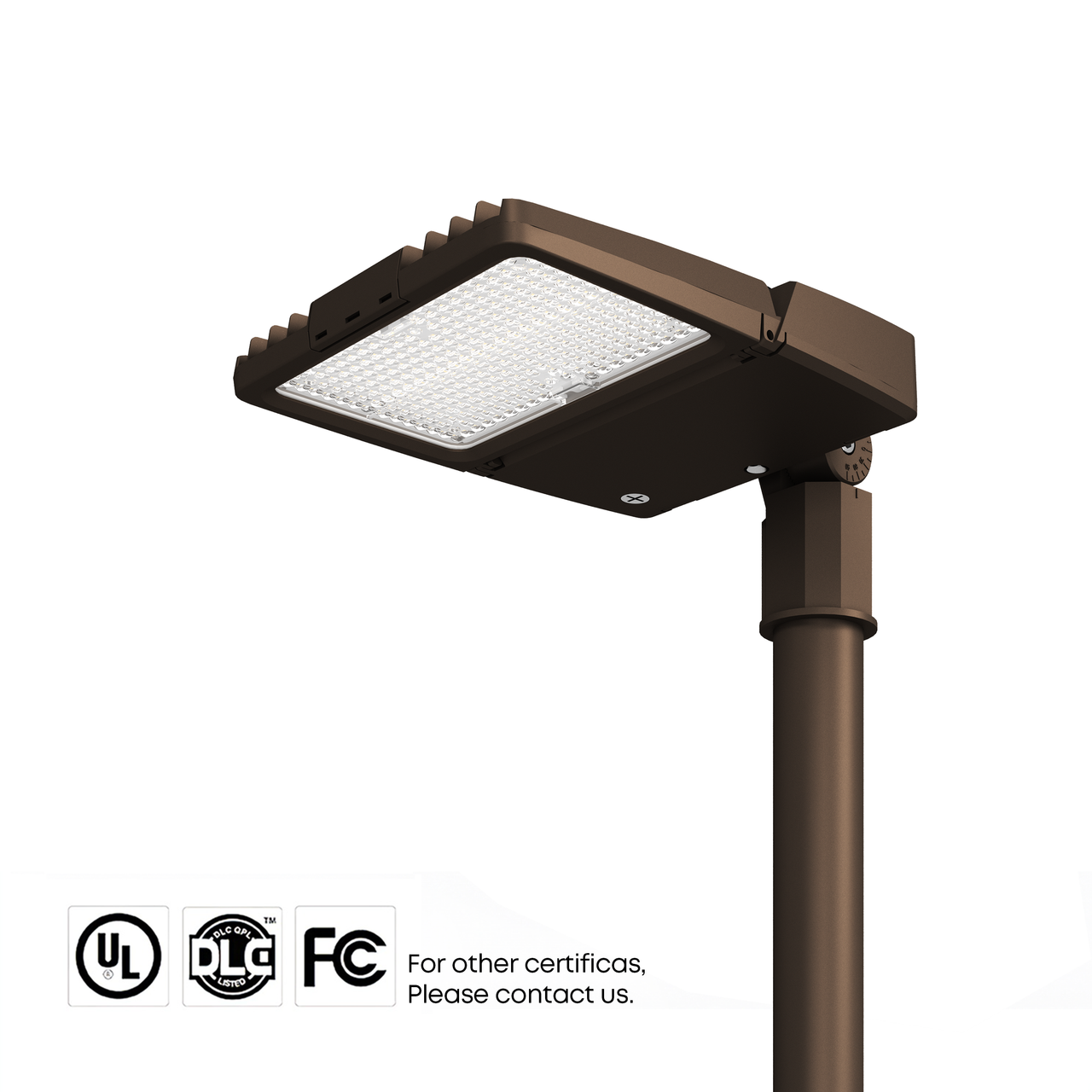

75W-150W Area/Shoebox Light PLB Series - Image 1
Save 29%

75W-150W Area/Shoebox Light PLB Series

SKU: AOK-PLB-75W-NV-T4-30-(BZ)|
In Stock
$200.00$280.00-29%

Next-Generation Parking Lot Lighting with Tool-Free Maintenance

Engineered for quick lens replacement, professional optical distribution with BUG rating of 0, and 6 mounting bracket options for maximum installation flexibility.

Learn more
•
Tool-Free Lens Replacement — Quick and convenient lens replacement for easy maintenance and component recycling.
•
Professional Optical Distribution — Optimized for parking lots with exceptional uniformity and BUG rating of 0.
•
Premium LED Chips — High-performance LED sources ensuring reliable output and long-term stability.
•
Pre-Reserved Sensor Positions — Spacious internal design with dedicated locations for seamless sensor integration.
•
Six Mounting Brackets — Multiple configurations for installation flexibility across various project requirements.

SKU: AOK-PLB-75W-NV-T4-30-(BZ)

1
Request Volume Quote

Downloads & Resources

Free Shipping on $500+
5-Year Warranty
DLC Certified
UL/ETL Listed

Need help choosing?

sales@auvolar.com (626) 342-8856

Compatible Accessories

Build your complete 75W-150W Area/Shoebox Light PLB Series system — order together or separately

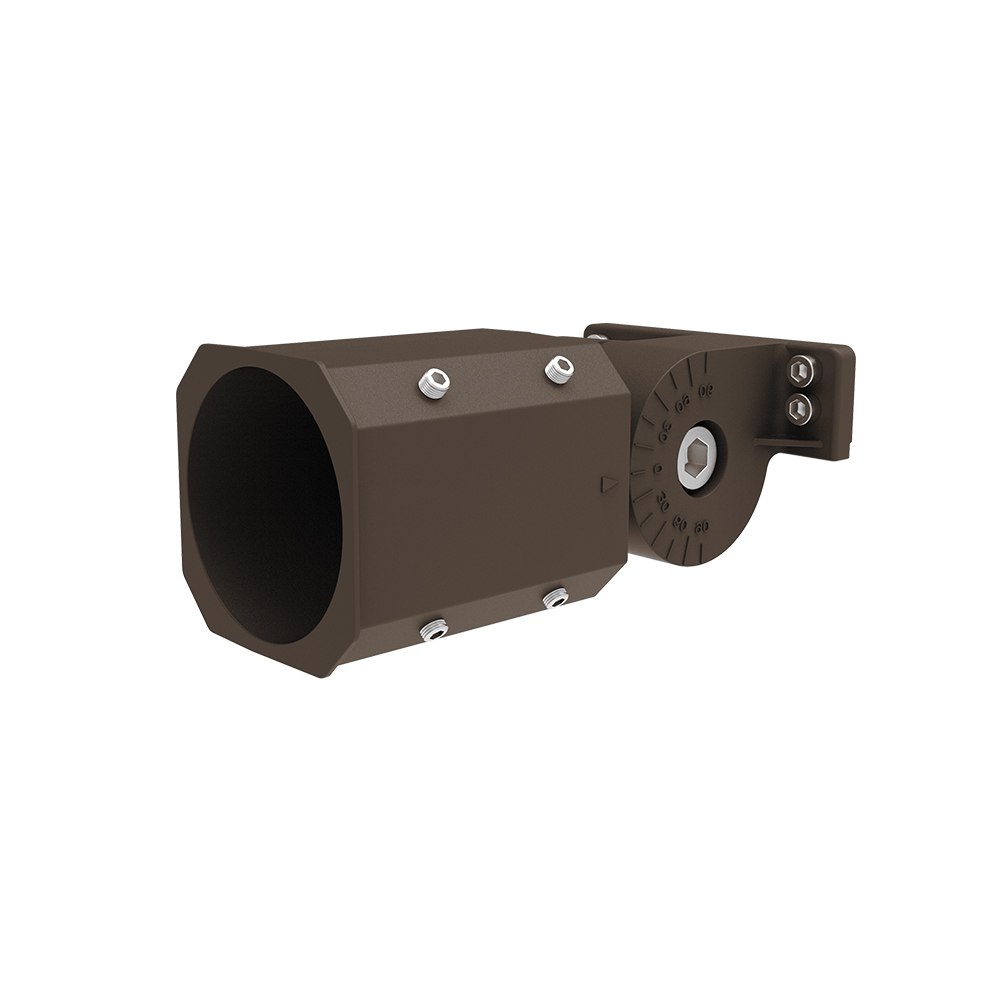

Bracket A — Slip Fitter

Bracket A — Slip Fitter

Contact for price

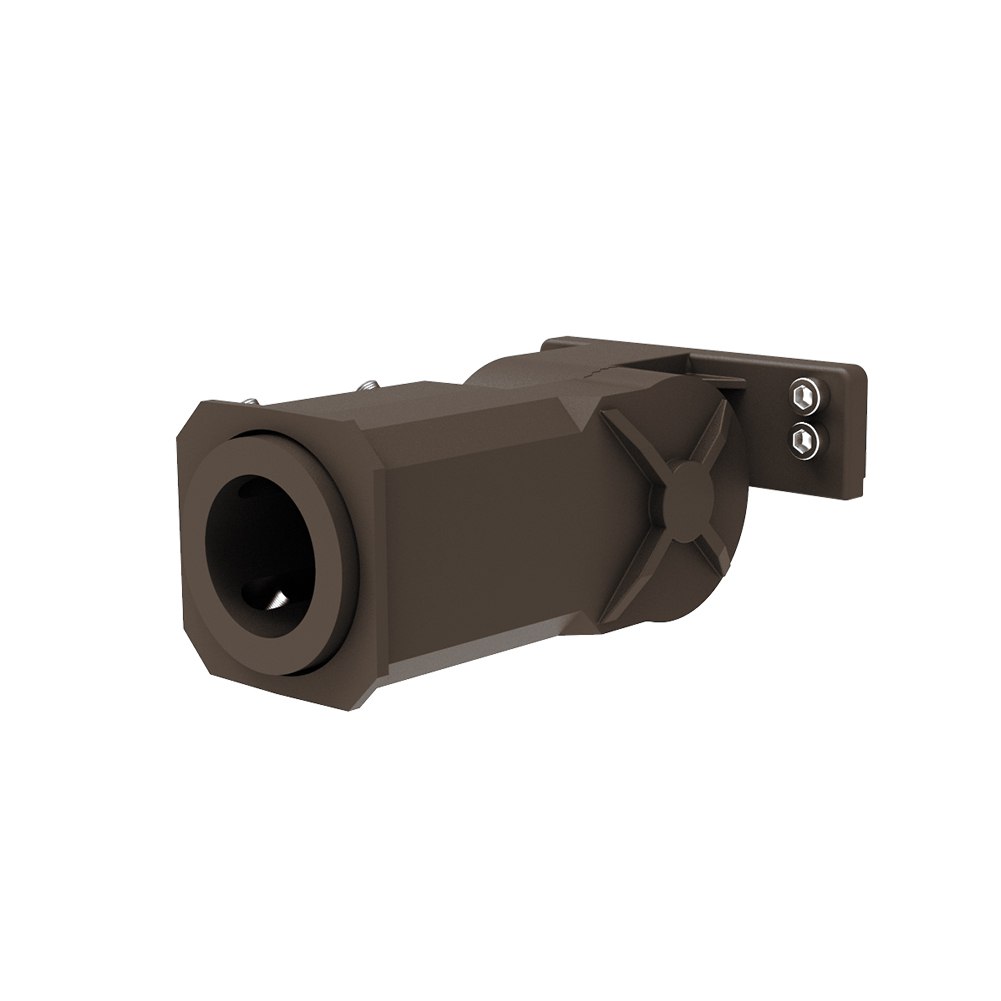

Bracket A2 — Compact Slip Fitter

Bracket A2 — Compact Slip Fitter

Contact for price

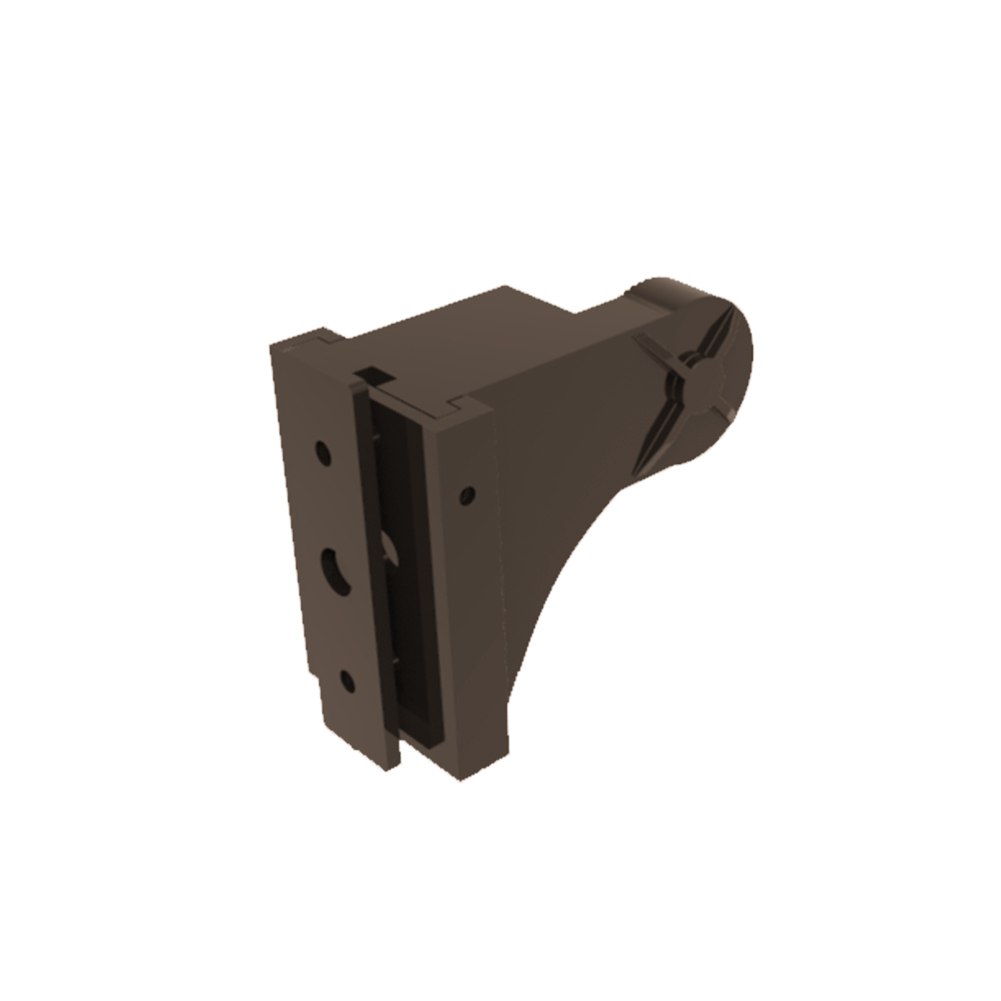

Bracket B — Adjustable Arm Mount

Bracket B — Adjustable Arm Mount

Contact for price

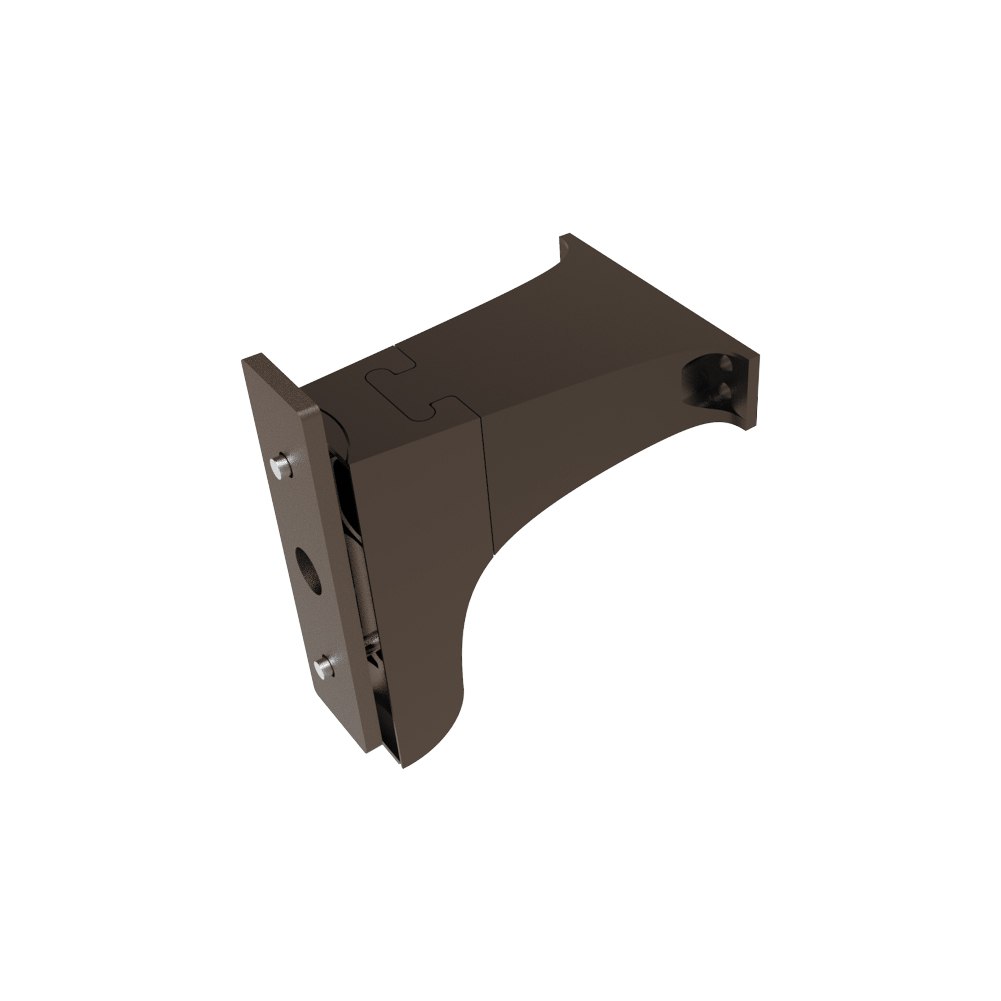

Bracket D — Pole Adapter

Bracket D — Pole Adapter

Contact for price

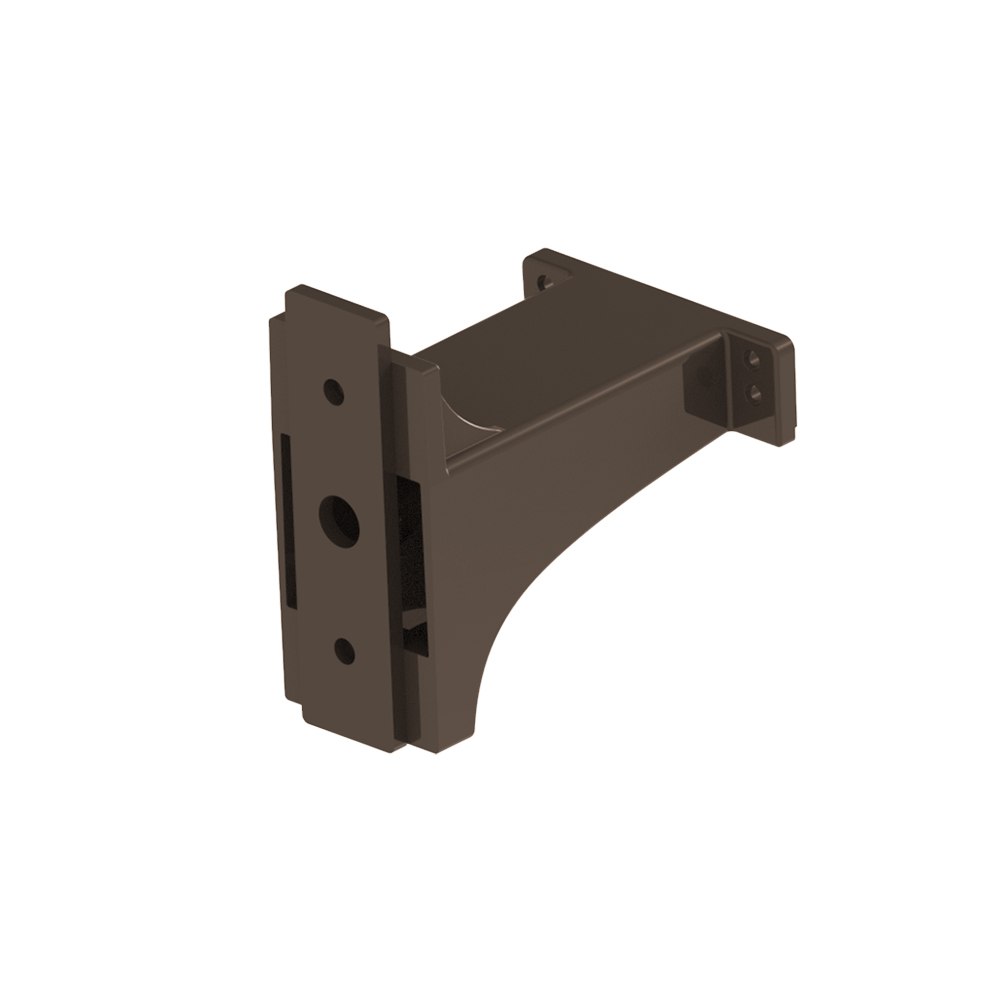

Bracket E — Side-Entry Mount

Bracket E — Side-Entry Mount

Contact for price
Bracket F — Extended Arm

Bracket F — Extended Arm

Contact for price

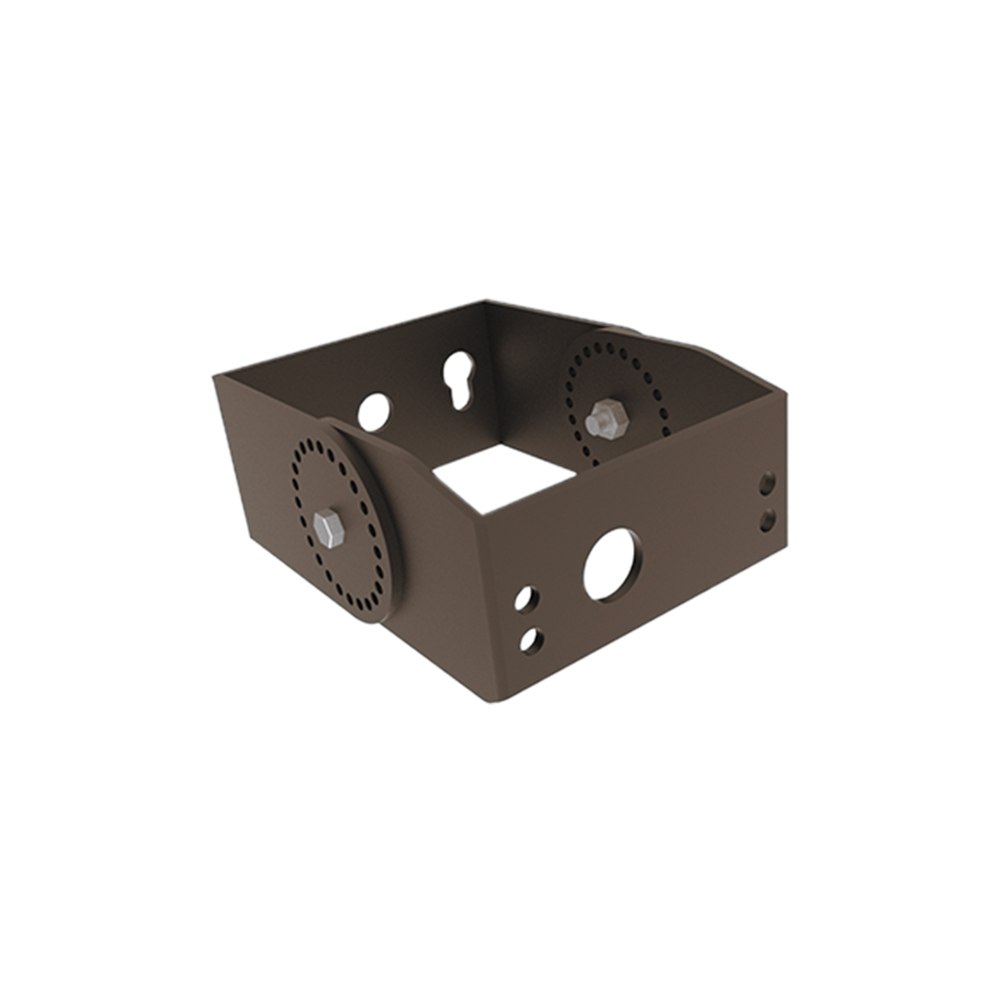

Bracket G — Junction Box

Bracket G — Junction Box

Contact for price

Photocell Sensor

$15

Motion/Occupancy Sensor

$29

Product Details

Features

• Utilizes a precision-engineered lens crafted from optical grade Mitsubishi PMMA to maximize light intensity.

• Features a range of light distributions and designs specifically tailored for parking lots.

• Enhances visual comfort by reducing glare and delivering a wider, smoother, and more uniform light output. Complies with BUG=0 standards.



STANDARD SYSTEM SPECIFICATIONS

Housing Material: Heavy-duty die-cast aluminum, powder coated

System Watts: 100W- 420W

Efficacy: Up to 200lm/W

CCT: 3000K~6500K CRI: Ra70 / Ra80 / Ra90

Input Voltage: 100-277V / 200-480V optional

Weight of Fixture: 3.7KG~9.6KG

Control: Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

Power Factor: 0.97

Surge Protection: 10kV SPD

Operating Temp Range: -40°C to +50°C

IP&IK Rating: IP66 / IK10

LED Chips: A2835, A5050 optional

Beam Angle: T401(110*155°),T402(90°x150°)

SCx (EPA): 0.113168m2-0.173087m2 , top view

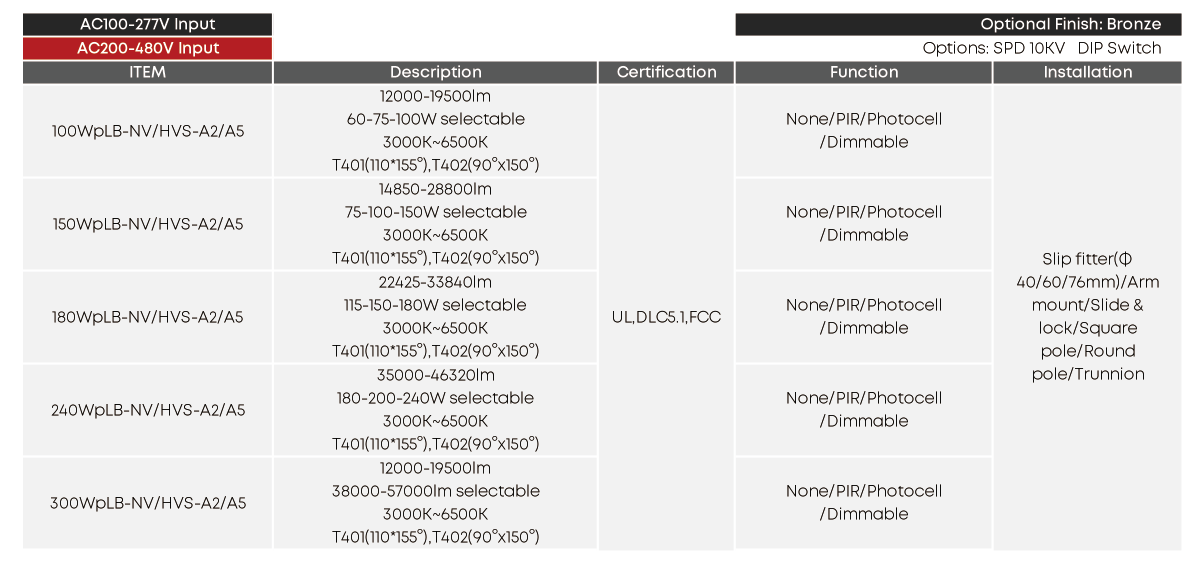

Parameter Table Reference

Why Choose Auvolar Parking Lot?

DLC Certified

Qualify for utility rebates of $20-$150+ per fixture

Wholesale Pricing

Contractor and distributor volume discounts available

Energy Efficient

Up to 150+ lumens per watt, save 50-70% on energy

5-Year Warranty

100,000-hour rated life with comprehensive warranty

Related Products

75W-145W Area Lighting/Shoebox OT Series (S)

75W-145W Area Lighting/Shoebox OT Series (S)

$106.00

AL 100W-300W Area Parking Lot Light

AL 100W-300W Area Parking Lot Light

$85.00

180W-230W Area Lighting/Shoebox OT Series (M)

180W-230W Area Lighting/Shoebox OT Series (M)

$106.00

300W-420W Area Lighting/Shoebox OT Series (L)

300W-420W Area Lighting/Shoebox OT Series (L)

$200.00

Frequently Asked Questions

What is 75W-150W Area/Shoebox Light PLB Series best used for?
The 75W-150W Area/Shoebox Light PLB Series is designed for parking lots, roadways, commercial properties, and outdoor areas requiring wide-area illumination. Its Type III/V distribution ensures optimal light coverage for safety and security.
How do I install 75W-150W Area/Shoebox Light PLB Series?
Installation should be performed by a licensed electrician. Each Auvolar fixture includes detailed installation instructions and mounting hardware. Key steps: 1) Turn off power at the breaker, 2) Mount the bracket or housing, 3) Connect wiring per the included diagram, 4) Secure the fixture and restore power. Auvolar offers free photometric lighting design to help plan optimal fixture placement and spacing. Contact us at sales@auvolar.com or call (626) 342-8856 for assistance.
What is the warranty on 75W-150W Area/Shoebox Light PLB Series?
All Auvolar LED fixtures come with a standard 5-year warranty covering manufacturing defects. Our LED drivers are rated for 100,000+ hours of operation. Contact our support team for warranty claims.
Does this product qualify for utility rebates?
Many Auvolar products are DLC certified, which qualifies them for utility rebates ranging from $20 to $150+ per fixture depending on your local utility program. Check our Rebate Finder tool or contact us for assistance with your specific utility.
Do you offer volume pricing for contractors?
Yes! We offer competitive wholesale pricing for contractors, electricians, and distributors. Contact our sales team at sales@auvolar.com or call for a custom quote on bulk orders.
What is the shipping time?
In-stock items ship within 1-2 business days from our City of Industry, CA warehouse. Standard shipping takes 3-7 business days depending on your location. Expedited shipping options are available at checkout.
