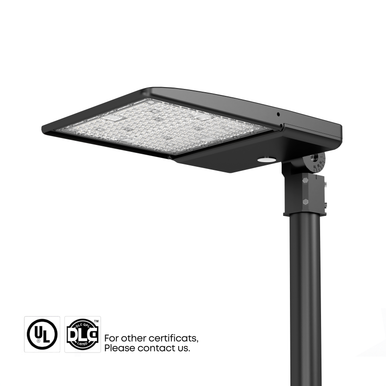

180W-230W Area Lighting/Shoebox OT Series (M)
A Proven Benchmark in Commercial Parking Lot Lighting
Deployed nationwide — serving CarMax (240+ locations), The Home Depot, Ontario International Airport, and 100+ auto dealerships. Installed since 2017 with near-zero failure rate. View case studies →
Learn more
7+ Years of Proven Reliability
First installed at CarMax locations nationwide in 2017–2018. After 7+ years of continuous operation with near-zero failure rates:
- High lumen output with uniform light distribution
- Low glare for enhanced visual comfort
- Stable thermal management for long lifespan
- Reliable in diverse climate conditions
Engineered for commercial-grade durability and long-term ROI.
Complete Integrated Lighting System
Not just a fixture — a fully engineered lighting platform:
- Glare shields for dealership-grade visual control
- Motion/occupancy sensors for energy optimization
- 7 mounting brackets and electrical adapters
- Dedicated light poles and intelligent controls
Every component designed for seamless compatibility.
SKU: AOK-OT-180W-NV-T3-40-(S)
Downloads & Resources
Need help choosing?
Compatible Accessories
Build your complete 180W-230W Area Lighting/Shoebox OT Series (M) system — order together or separately
Bracket A — Slip Fitter
Bracket B — Arm Mount with Visor
Bracket C — Wall/Ceiling Mount
Bracket D — Round/Square Pole Adapter
Bracket E — Side-Entry Pole Mount
Bracket F — Extended Arm Adapter
Bracket G — Trunnion/Yoke Mount
Light Shields (Set)
Photocell Sensor
Motion/Occupancy Sensor
Product Details
Features
• It features a lens that is precision engineered using optical grade Mitsubishi PMMA for maximum light intensity.. • A variety of light distributions including Type III, Type IV, and Type V, ensuring precise photometrics for the right project. • A buckle design and tool-free maintenance, making it easy to maintain. The top cover is reserved for a photocell sensor, and the bottom is reserved for an occupancy or PIR sensor with a waterproof seal.
• Minimum CRI of 70, 80, and 90 optiona (Non-standard products, custom-made required)l.
• Cutoff classification: Cut-off, no up light pollution.
• With 7 different mounting brackets, it makes installation to any style of pole quicker and easier. This simplifies the installation job and saves time (Non-standard products, custom-made required).
• It offers the option of customized pole adapters for special installations. This allows for greater flexibility and customization during the installation process.
STANDARD SYSTEM SPECIFICATIONS
Housing Material: Heavy-duty die-cast aluminum, powder coated
System Watts: 75W / 115W / 145W / 180W / 200W / 230W / 300W / 420W
Efficacy: Up to 175lm/W
CCT: 3000K~6500K
CRI: >70Ra / >80Ra
Input Voltage: 100-277V / 277-480V optional
Weight of Fixture: 3.7KG~9.6KG
Control: DAIL, 1-10V, PWM, NEMA, ZHAGA, Presence detection sensor supported. DIP switch.
Power Factor: >0.98~0.99
THD: <20%
Surge Protection: 10kV~20kV SPD available
Operating Temp Range: -40°C to +50°C
IP&IK Rating: IP66 / IK10
LED Chips: Lumileds / Seoul Beam
Angle: Type III / Type IV / Type V / Type 512
SCx (EPA): 0.11m2 / 0.18m2 / 0.20m2 , top view

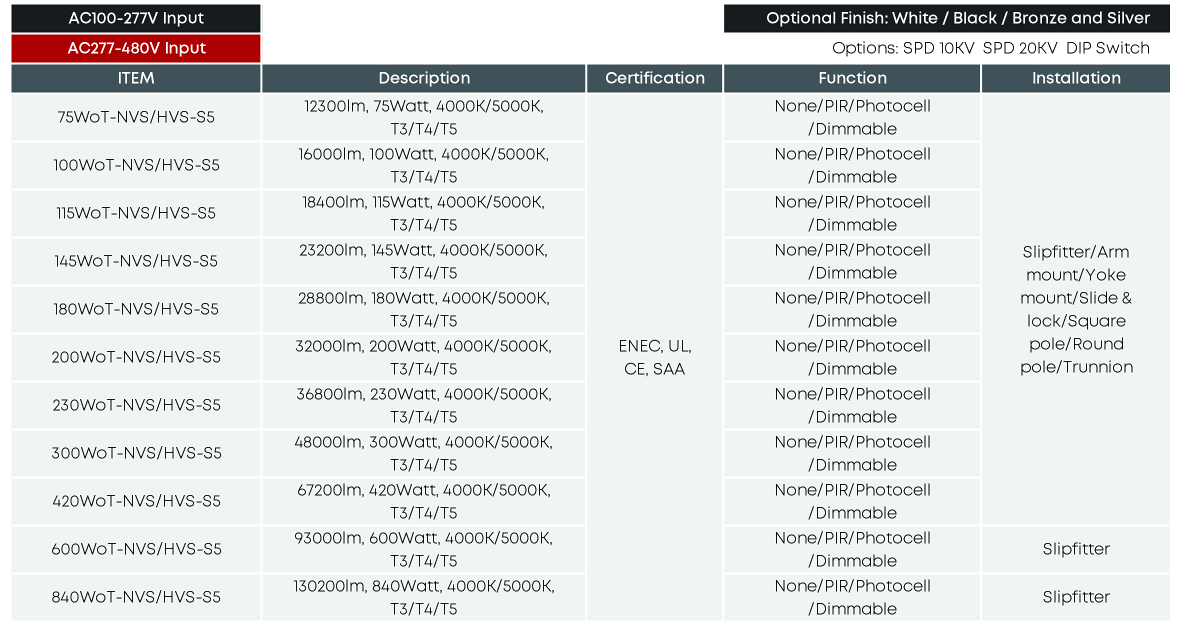

Parameter Table Reference
Why Choose Auvolar Area Lights?
DLC Certified
Qualify for utility rebates of $20-$150+ per fixture
Wholesale Pricing
Contractor and distributor volume discounts available
Energy Efficient
Up to 150+ lumens per watt, save 50-70% on energy
5-Year Warranty
100,000-hour rated life with comprehensive warranty
