All-in-one solar LED street light aluminum housing with 0-90° adjustable Grade-A mono solar panel for outdoor installation
Premium LED Lighting

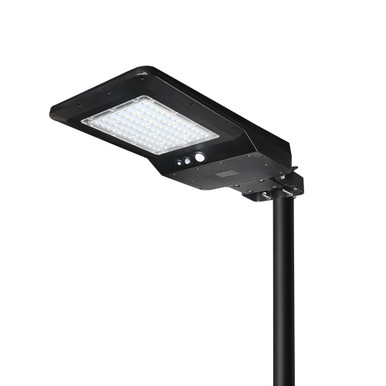

Solar LED Light AN-SSL-60/80W

Solar LED Light AN-SSL-60/80W is a professional-grade LED luminaire engineered for self-contained solar LED lighting sol...

SKU: AN-SSL-60W-A-4K|
Available by Quote
✓3-Year Warranty
✓

Price on Request

This configuration is not stocked in our US warehouse. Request a quote for pricing and lead time.

Request a Quote
Contact for Availability — Lead time varies; contact us for a delivery estimate
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Street-Grade Solar Lighting. No Grid. No Trenching. No Monthly Bill.

The AN-SSL-60/80W is an all-in-one solar street light for roads, pathways, and parking areas where grid connection is either impossible, impractical, or too expensive to justify. One pole, one fixture, one installation — then years of autonomous operation at 170 lm/W. MPPT charging squeezes 25% more power from every hour of sunlight.

170 lm/W — More Light Per Watt Than Most Grid-Powered Street Lights

Dual-chip LEDs with scientific optical lenses deliver uniform, anti-glare illumination across a 140°×70° beam (Type III roadway distribution). Covers 232-582 sq.m depending on wattage — without a single foot of buried cable.

MPPT Charging — 25% More Efficiency Than Conventional Solar Controllers

Maximum Power Point Tracking continuously optimizes panel output regardless of clouds, partial shade, or temperature swings. On a cloudy day when standard controllers lose 30% of potential charge, MPPT keeps the battery full.

LiFePO4 Battery — 2,000 Cycles, Not the 500 You Get From Cheap Lithium

Up to 153.6Wh capacity (80W model) with over-charge and over-discharge protection. 35 hours in constant mode, 60 hours in sensor mode on a single charge. Fully recharges in 7 hours of strong sun.

3 Working Modes + Remote Control — Because Every Site Has Different Traffic

Keep Lighting Mode for high-traffic roads. Auto Sensor Mode for residential streets (full brightness on motion, dims after 20s). DIY mode for custom schedules. All adjustable from the ground via remote control.

Efficacy

170 lm/W
Industry-leading solar efficiency

Options

60W / 80W
115.2Wh or 153.6Wh battery

Coverage

Up to 582 m²
80W model at optimal spacing

Warranty

3 Years
Full product warranty

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
60W
Wattage Range
170lm/W
Efficacy
170lm
Max Lumens
IP65
IP Rating
35 hours
L70 Lifespan
3-year warranty
Warranty

Optical

Distribution TypeWide
Beam Angle70 beam angle
Distribution140°x70°
Efficacy170lm/W
Lumens170lm

Physical

BatteryLiFePO4, MPPT charging (25% higher efficiency)
IP RatingIP65
MountingPole or wall mount
Solar PanelGrade-A mono, 21%+ conversion, 20+ year lifespan, 0-90° adjustable

Warranty

Lifespan35 hours
Warranty3-year warranty

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
60W ←11 lbs13 lbs25" × 13.6" × 6.6"1
80W16 lbs18.3 lbs34.3" × 14.7" × 6.6"1

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Photometric data for this product series. Contact sales@auvolar.com for detailed IES files and photometric reports.

Efficacy Comparison

lm/W — higher is better

Light AN-SSL-60/80W (this product)
150 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Off-Grid & Solar Lighting Applications

All-in-one solar LED solutions for remote sites, pathways, and infrastructure without utility power.

🌿

Remote Pathways & Parks

Self-contained solar panel and lithium battery deliver 30W–80W-equivalent illumination on pedestrian paths, park walkways, and greenway trails without trenching utility power — reducing installation cost by up to 80%.

Standard: IES RP-5 / IDA Outdoor Lighting Criteria

Technical Requirements

  • • Autonomous operation 2–5 consecutive cloudy days
  • • Motion sensing for battery conservation
  • • IP65 weather protection

Recommended Specifications

Motion sensor mode3000K–4000K warm whiteTilt-adjustable panel
🅿️

Remote Parking Areas & Lots

Ideal for overflow parking, remote facilities, and temporary construction sites where grid extension is cost-prohibitive. Integrated photocell ensures automatic dusk-to-dawn operation without manual controls.

Standard: IES RP-20 / NEC 690 Solar Electrical Systems

Technical Requirements

  • • 0.5–1.0 fc average parking illuminance
  • • Dusk-to-dawn photocell control
  • • Pole-mount or direct-arm options

Recommended Specifications

30W–80W5000K for parking clarityAdjustable pole height 15–25 ft
🛤️

Rural Roads & Agricultural Sites

Farm roads, grain elevator access, and rural property lighting without costly utility extension. Robust IP65 housing withstands wind, rain, and agricultural dust environments with zero operating cost from the grid.

Standard: IES RP-8 Rural / NFPA 780 Lightning Protection

Technical Requirements

  • • Standalone operation without grid
  • • IP65 minimum
  • • Wind load rating per local code

Recommended Specifications

Higher wattage for roadway coverageAdjustable panel angle for latitude10-year battery lifecycle
🏕️

Construction Sites & Temporary Installations

Rapid deployment with no electrical contractor required makes solar lights the cost-effective choice for construction site safety lighting, temporary perimeter security, and event illumination.

Standard: OSHA 1926.56 Construction Lighting / NEC 690

Technical Requirements

  • • 0.5 fc minimum safety illuminance
  • • Portable pole or stake mount
  • • Vandal-resistant housing

Recommended Specifications

Motion activation to extend battery lifeIP65 rugged housingQuick-deploy stake mount

No accessories available for this product.

Quick Summary

The Auvolar Solar LED Light AN-SSL-60/80W offers 170lm/W efficacy within a 60-80W range, with no certifications listed.

Frequently Asked Questions

What is the wattage range for the Solar LED Light AN-SSL-60/80W?
The wattage range for the Solar LED Light AN-SSL-60/80W is 60-80W.
How efficient is the Solar LED Light AN-SSL-60/80W?
The Solar LED Light AN-SSL-60/80W has an efficacy of 170lm/W.
What is the lifespan of the Solar LED Light AN-SSL-60/80W?
The lifespan of the Solar LED Light AN-SSL-60/80W is 35 hours.
What are the CCT options for the Solar LED Light AN-SSL-60/80W?
The CCT options for the Solar LED Light AN-SSL-60/80W are 4000K and 6000K.
What is the IP rating of the Solar LED Light AN-SSL-60/80W?
The IP rating of the Solar LED Light AN-SSL-60/80W is IP65.
