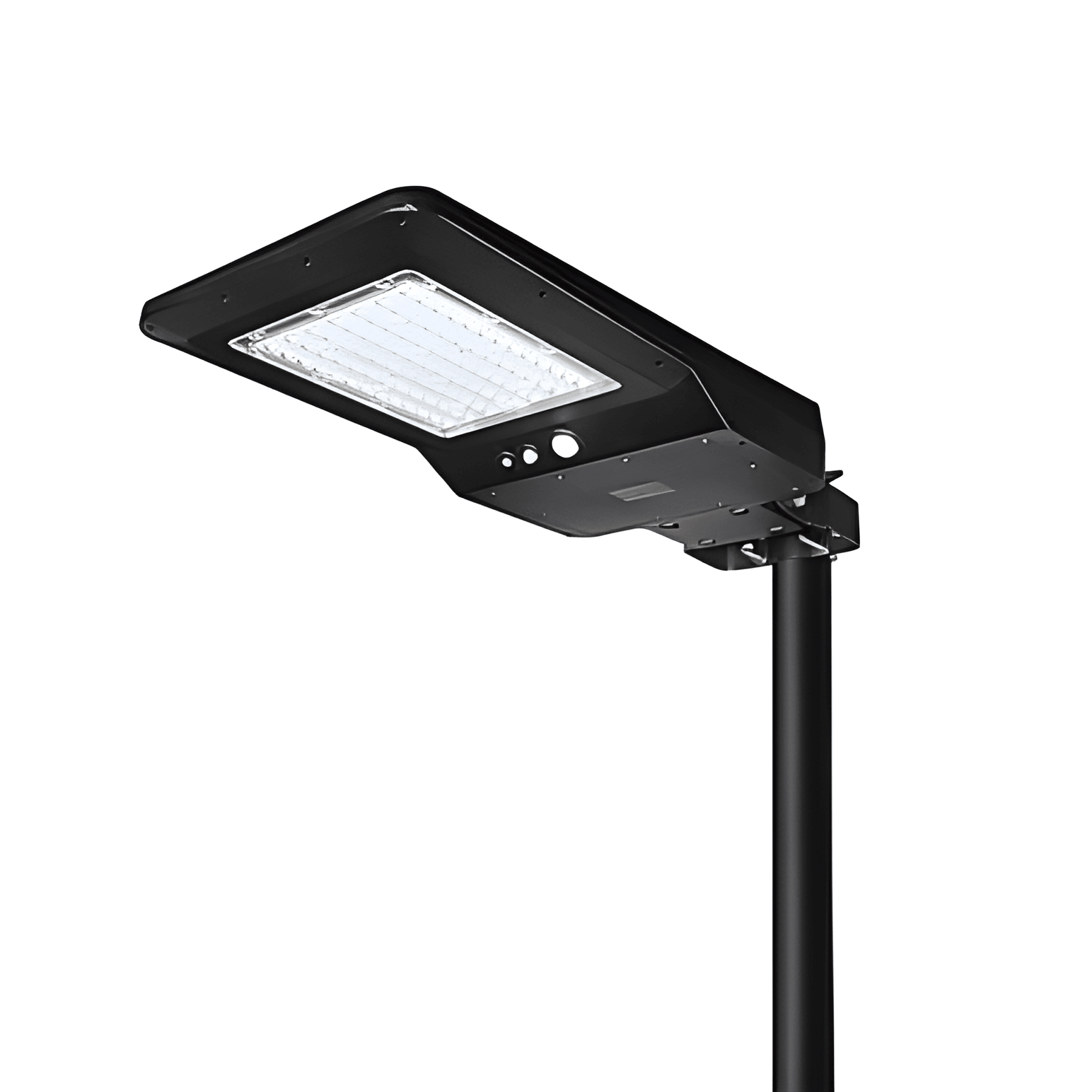

40W solar LED street light with slim modern patent design, black finish, ABS+PC and aluminum anti-UV housing for outdoor use
AN-SSL-40W-P · Solar Street Lights

Solar LED Light AN-SSL-40W-P

One Pole. One Fixture. Zero Infrastructure. Roadway-Grade Light.

SKU: A-SSL40W-4K-T3-BK-21W135V-1152Wh96V12A|
In Stock
3-Year Warranty
$238.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 4. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

One Pole. One Fixture. Zero Infrastructure. Roadway-Grade Light.

The AN-SSL-40W-P delivers 4,800 lumens of professional street lighting without a grid connection. Three installation modes (straight pole, curved pole, wall mount) fit whatever infrastructure already exists. When trenching costs $20-50 per linear foot, a self-powered street light pays for itself before the first electric bill would arrive.

4,800 Lumens at 120 lm/W — Real Street Light Output, Not Decorative Glow

140°×70° professional optical lens delivers Type III distribution optimized for roads and pathways. This is functional roadway lighting, not a garden accent — 4,800 lumens covers 3-6 meter pole heights at proper spacing.

3 Installation Modes — Because Every Site Has Different Existing Infrastructure

Straight pole, curved pole, and wall mount configurations with all hardware included. Whether you have existing poles, building walls, or need new poles, the same fixture adapts to what's already there.

115.2Wh LiFePO4 Battery — Multi-Night Operation on a Single Charge

9.6V / 12,000mAh LiFePO4 battery with 2,000+ cycle life. Charges in 8-10 hours under strong sun via 21W mono-crystalline panel. Smart modes extend runtime across multiple consecutive cloudy days.

5° Solar Panel Tilt — Better Charging, Self-Cleaning, and Rain Drainage

Engineered 5° downward tilt on the solar panel improves sun absorption angle, lets rain wash away dust naturally, and prevents water pooling. Small detail, big impact on long-term charging reliability.

Light Output

4,800 lm
120 lm/W professional output

Battery

115.2 Wh
LiFePO4 9.6V / 12Ah

Solar Panel

21W
Mono-crystalline @ 13.5V

Warranty

3 Years
Full product warranty

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
4,800 lm
Light Output
115.2 Wh
Battery
21W
Solar Panel
3 Years
Warranty

Electrical

Wattage40W

Optical

Distribution TypeType V
Beam Angle70 Beam Angle
Distribution140°x70°
Efficacy120lm/W
LED ChipSMD2835
Lumens120lm

Physical

BatteryLiFePO4, 9.6V/12000mAh
IP RatingIP65
MountingStraight pole / curved pole / wall mount (3 options)
Solar PanelGrade-A monocrystalline, high efficiency, tilt -5° design

Warranty

Lifespan10 hours
Warranty3-Year Warranty

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
40W53 lbs56.1 lbs29.5" × 15.2" × 13.8"4

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Photometric data for this product series. Contact sales@auvolar.com for detailed IES files and photometric reports.

Efficacy Comparison

lm/W — higher is better

Light AN-SSL-40W-P (this product)
150 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Off-Grid & Solar Lighting Applications

All-in-one solar LED solutions for remote sites, pathways, and infrastructure without utility power.

🌿

Remote Pathways & Parks

Self-contained solar panel and lithium battery deliver 40-equivalent illumination on pedestrian paths, park walkways, and greenway trails without trenching utility power — reducing installation cost by up to 80%.

Standard: IES RP-5 / IDA Outdoor Lighting Criteria

Technical Requirements

  • Autonomous operation 2–5 consecutive cloudy days
  • Motion sensing for battery conservation
  • IP65 weather protection

Recommended Specifications

Motion sensor mode3000K–4000K warm whiteTilt-adjustable panel
🅿️

Remote Parking Areas & Lots

Ideal for overflow parking, remote facilities, and temporary construction sites where grid extension is cost-prohibitive. Integrated photocell ensures automatic dusk-to-dawn operation without manual controls.

Standard: IES RP-20 / NEC 690 Solar Electrical Systems

Technical Requirements

  • 0.5–1.0 fc average parking illuminance
  • Dusk-to-dawn photocell control
  • Pole-mount or direct-arm options

Recommended Specifications

405000K for parking clarityAdjustable pole height 15–25 ft
🛤️

Rural Roads & Agricultural Sites

Farm roads, grain elevator access, and rural property lighting without costly utility extension. Robust IP65 housing withstands wind, rain, and agricultural dust environments with zero operating cost from the grid.

Standard: IES RP-8 Rural / NFPA 780 Lightning Protection

Technical Requirements

  • Standalone operation without grid
  • IP65 minimum
  • Wind load rating per local code

Recommended Specifications

Higher wattage for roadway coverageAdjustable panel angle for latitude10-year battery lifecycle
🏕️

Construction Sites & Temporary Installations

Rapid deployment with no electrical contractor required makes solar lights the cost-effective choice for construction site safety lighting, temporary perimeter security, and event illumination.

Standard: OSHA 1926.56 Construction Lighting / NEC 690

Technical Requirements

  • 0.5 fc minimum safety illuminance
  • Portable pole or stake mount
  • Vandal-resistant housing

Recommended Specifications

Motion activation to extend battery lifeIP65 rugged housingQuick-deploy stake mount

No accessories available for this product.

Quick Summary

The Solar LED Light AN-SSL-40W-P by Auvolar offers 40W power with an efficacy of 120lm/W, featuring no listed certifications.

Frequently Asked Questions

What is the wattage of the Auvolar Solar LED Light AN-SSL-40W-P?
The wattage of the Auvolar Solar LED Light AN-SSL-40W-P is 40W.
What is the efficacy of the Auvolar Solar LED Light AN-SSL-40W-P?
The efficacy of the Auvolar Solar LED Light AN-SSL-40W-P is 120lm/W.
What is the lifespan of the Auvolar Solar LED Light AN-SSL-40W-P?
The lifespan of the Auvolar Solar LED Light AN-SSL-40W-P is 10 hours.
What is the IP rating of the Auvolar Solar LED Light AN-SSL-40W-P?
The IP rating of the Auvolar Solar LED Light AN-SSL-40W-P is IP65.
What mounting options are available for the Auvolar Solar LED Light AN-SSL-40W-P?
The Auvolar Solar LED Light AN-SSL-40W-P can be mounted on a straight pole, curved pole, or wall.
