Office & Corporate Campus
Parking Lighting Guide
ASHRAE 90.1-2022 compliant, LEED-eligible LED lighting for corporate parking and campus facilities
66%
Energy Savings
LEED
SS Credit Eligible
Free
Photometric Design
IES RP-20 Office Parking Illuminance Standards
Recommended foot-candle levels for corporate and office parking facilities
General office parking — low activity
Standard for most corporate lots
General office parking — medium activity
High-density corporate campuses
Visitor & VIP parking
First impression zones
Entrances & building approach
Brand image & security
ADA accessible spaces
Federal ADA compliance
Employee badge access zones
Security camera coverage
Underground / covered garage
Canopy fixtures required
Source: IES RP-20 (Lighting for Parking Facilities). Verify with local AHJ — ASHRAE 90.1 compliance required for new construction.
🏆LEED Tip: LEED BD+C v4 Sustainable Sites Credit for Light Pollution Reduction requires full cutoff fixtures and BUG rating compliance per Lighting Zone. All Auvolar area lights are U0 rated. Contact us for a LEED-ready photometric analysis.
Pole Height, Spacing & Wattage Selection Guide
Corporate parking lots prioritize lower poles for professional aesthetics and neighborhood compliance
15–20 ft
20–25 ft
25–30 ft
30–35 ft
Light Distribution: Type III vs Type V for Office Parking
Office lots in suburban settings require precise optical control to prevent neighbor complaints
Type III — Perimeter & Property Lines
Asymmetric throw — forward and sideways only. Essential for lots adjacent to residential areas or streets.
Type V — Interior & Campus Center
Symmetric 360° spread. Best for interior island poles surrounded by parking bays on all sides.
Compliance & Special Requirements
Regulatory requirements for corporate and office parking lighting
ASHRAE 90.1-2022
Photocell shutoff + 50% dimming capability required for all exterior
Photocell + dimmable driver satisfies requirement
LEED BD+C v4
Light pollution reduction credit (SS Credit) — full cutoff + BUG rating
All Auvolar lights full cutoff U0 ✅
IES RP-20
1.0–2.0 fc average for office parking; 3:1 uniformity recommended
Standard design target for corporate lots
ADA Title II & III
Minimum 2.0 fc, no dark spots at accessible spaces
Federal requirement for public-facing lots
Dark sky ordinances
Full cutoff, max 4000K CCT in many jurisdictions
Check local municipal code before specifying
Local zoning / HOA
Pole height limits often 20–25ft in suburban office parks
Verify with local AHJ and HOA covenants
Lighting Solutions by Office Scenario
Design parameters, example configurations, and recommended products for each office parking application
🏢 Corporate Headquarters
Headquarters facilities project brand identity through exterior environments. Parking lighting must be architecturally consistent — warm color temperatures (4000K) are preferred over cool 5000K to avoid an industrial feel. LEED certification goals often require SS Credit compliance: full cutoff optics, BUG U0 rating, and photocell controls. Executive entrances and visitor reception need 3.0–5.0 fc to create a welcoming, safe first impression.
Design Parameters
| Target illuminance | 2.0–3.0 fc avg (main lot) |
| Visitor / exec entrance | 3.0–5.0 fc |
| Uniformity | 3:1 or better |
| Pole height | 20–25 ft |
| CCT | 4000K (neutral white, professional) |
| Controls | Photocell + 50% dimming (ASHRAE 90.1) |
Example Configuration
Recommended Products
💻 Tech Campus & Science Park
Technology campuses typically span multiple buildings with shared surface lots and structured parking. Operating hours extend well beyond 9–5 — engineering and product teams often work late nights, requiring maintained lighting until midnight or later. Smart controls with programmable schedules and photocell override allow both security coverage and energy compliance.
Design Parameters
| Target illuminance | 1.5–2.5 fc avg |
| Uniformity | 4:1 or better |
| Pole height | 20–25 ft |
| CCT | 4000K–5000K |
| Controls | Photocell + programmable timer schedule |
| Special | EV charging area — higher uniformity preferred |
Example Configuration
Recommended Products
🏗️ Multi-Tenant Office Buildings
Multi-tenant buildings with diverse tenants — law firms, medical offices, financial services — often share a single parking lot. Tenant mix determines operating hours; some tenants may have evening events requiring full-brightness until 10 PM. Property management favors fixtures with easy controls and minimal maintenance to avoid disputes over shared costs.
Design Parameters
| Target illuminance | 1.0–2.0 fc avg |
| Uniformity | 4:1 |
| Pole height | 20–25 ft |
| CCT | 4000K |
| Controls | Photocell + event timer for late tenants |
| Maintenance | 100,000 hr LED life = zero lamp changes |
Example Configuration
Recommended Products
🅿️ Visitor vs Employee Designated Parking
Modern corporate campuses differentiate between visitor and employee parking with different lighting levels. Visitor lots near the main entry need 2.0–3.0 fc for a polished impression, while employee lots in the rear or overflow areas can operate at 1.0–1.5 fc for cost efficiency. Clear delineation via lighting levels also improves wayfinding.
Design Parameters
| Visitor lot target | 2.0–3.0 fc (enhanced impression) |
| Employee lot target | 1.0–1.5 fc (energy-efficient) |
| Uniformity | 3:1–4:1 |
| Pole height | 20–25 ft both areas |
| CCT | 4000K (neutral, professional) |
| Controls | Separate photocell zones by lot section |
Example Configuration
Recommended Products

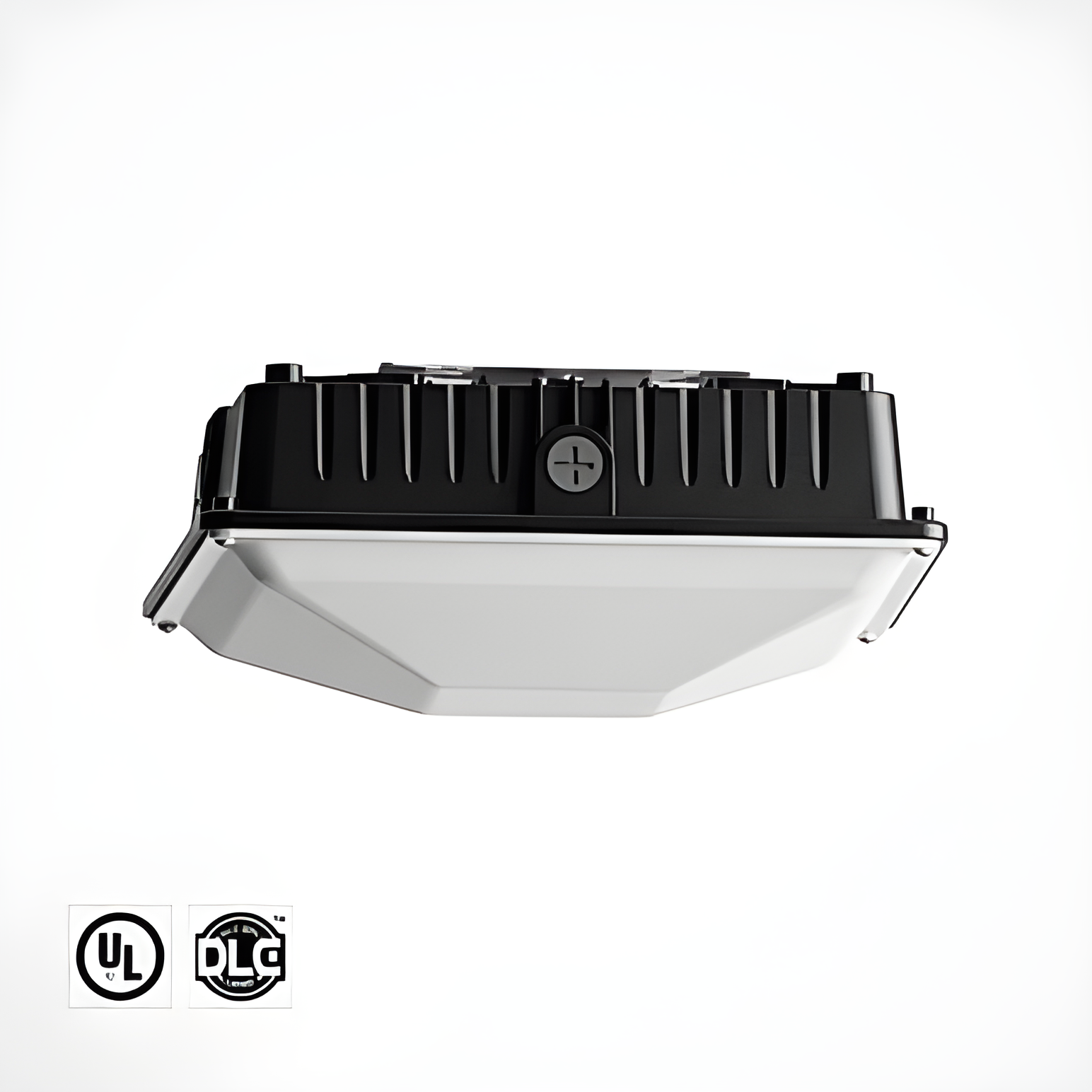

🏛️ Underground & Covered Parking Garage
Underground office parking requires canopy-style fixtures for consistent distribution without poles. IES RP-20 calls for 5.0 fc in general garage areas and up to 50 fc at daylight transition zones. LED canopy lights with occupancy sensing allow 30–50% energy reduction during off-peak hours while maintaining minimum safety levels.
Design Parameters
| General garage | 5.0 fc avg |
| Entry/exit zones | 25–50 fc (adaptation) |
| Min illuminance | 1.0 fc |
| Uniformity | 10:1 max |
| Fixture type | Canopy / vapor-tight |
| Controls | Occupancy sensor + photocell at entry |
Example Configuration
Recommended Products
Recommended Products for Office Parking
ASHRAE 90.1 and LEED-eligible LED area lights for corporate facilities
LED vs Traditional: Energy Savings Comparison
Replacing 250W metal halide fixtures (292W actual) with 100W LED area lights
Actual wattage
Annual energy (11hr/day)
Annual cost ($0.12/kWh)
Lamp life
Maintenance (5-year)
50-fixture campus annual savings
Case Study
Corporate Campus LED Retrofit — Dallas, TX
A 300-space corporate headquarters parking lot in the Dallas suburbs replaced 48 × 250W metal halide fixtures with PLB Series 100W LED area lights. 4000K neutral white maintained the property's upscale character. Photocell + 50% timer controls satisfied ASHRAE 90.1-2022. The project earned 1 LEED SS Credit point. Utility rebates of $60/fixture offset $2,880 of project cost.
$12,000
Annual Energy Savings
1.8 yr
Payback Period
LEED ✓
SS Credit Earned
Ready to upgrade your office parking lighting?
Get a free ASHRAE 90.1 compliant photometric layout, LEED analysis, and energy savings calculation.
