Heavy-Duty Photocell for Roadway Lighting | Multi-Voltage & High-Voltage Options

Surge Protected Photocontrols with ASI CompliAce for Area & Street Lighting

A-photocell-NV/A-Photocell-HV(AC347-480V)/A-Photocell-HV(AC277-480V)

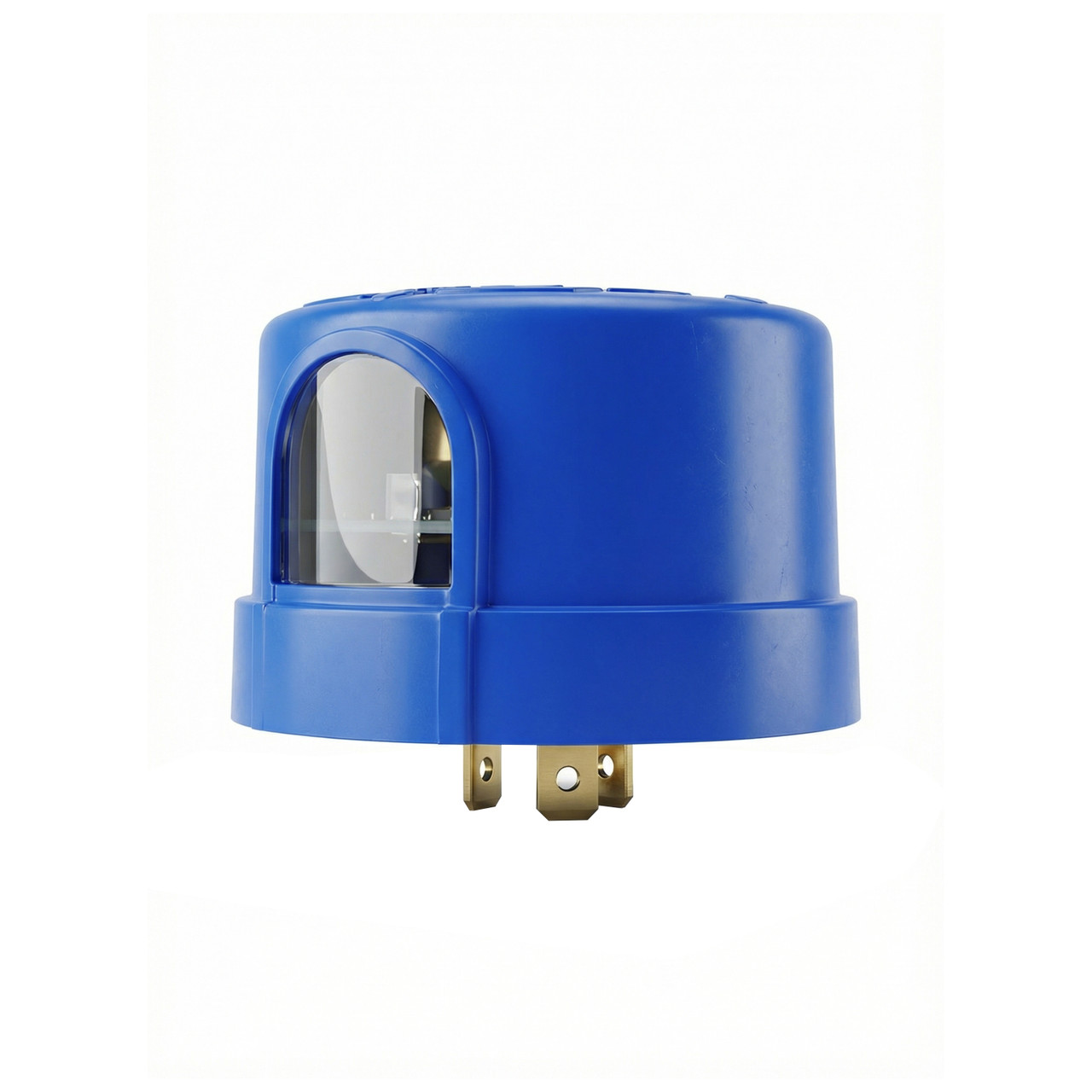

A-Photocell-NV (105-277VAC) & A-Photocell-HV (277-347VAC) Industrial Grade Lighting Controls

FEATURES

Engineered for demAding roadway, street, Ad area lighting applications, these heavy-duty photocells deliver reliable, long-life performAce with advAced surge protection Ad precise light level control. Available in two industrial-grade models—multi-voltage (105-277VAC) Ad high-voltage (277-347VAC)—both meet or exceed ASI C136.10 stAdards Ad feature A ON fail mode for uninterrupted lighting safety. The multi-voltage NV model boasts a microprocessor design for programmable light levels Ad inverse ratio operation, while the high-voltage HV model includes a thermal bi-metal switch for delayed response, eliminating false on/off cycles from sudden ambient light chAges. Both units feature rugged, high-temperature housings rated for extreme weather (-40°C to +65°C, 96% RH) Ad robust surge protection (up to 360 Joules), making them compatible with solid state ballasts, drivers, Ad all traditional lighting equipment.

Listing Key Points:

• Multi-voltage (105-277VAC) Ad high-voltage (277-347VAC) operation for versatile fixture compatibility
• Up to 360 Joule surge protection (MOV) shields against line voltage spikes
• ASI C136.10 compliAt; UL Listed (HV model) for industrial safety stAdards
• ON fail mode ensures continuous lighting in the event of control malfunction
• Extreme temperature rating (-40°C to +65°C @96% RH) for all-weather performAce
• NV model: 11,000+ ON/OFF cycles, 10-year rated life, programmable light levels (1-3 Fc)
• HV model: 5,000+ ON/OFF cycles, 4-year rated life, 30-45s time delay to prevent false triggers

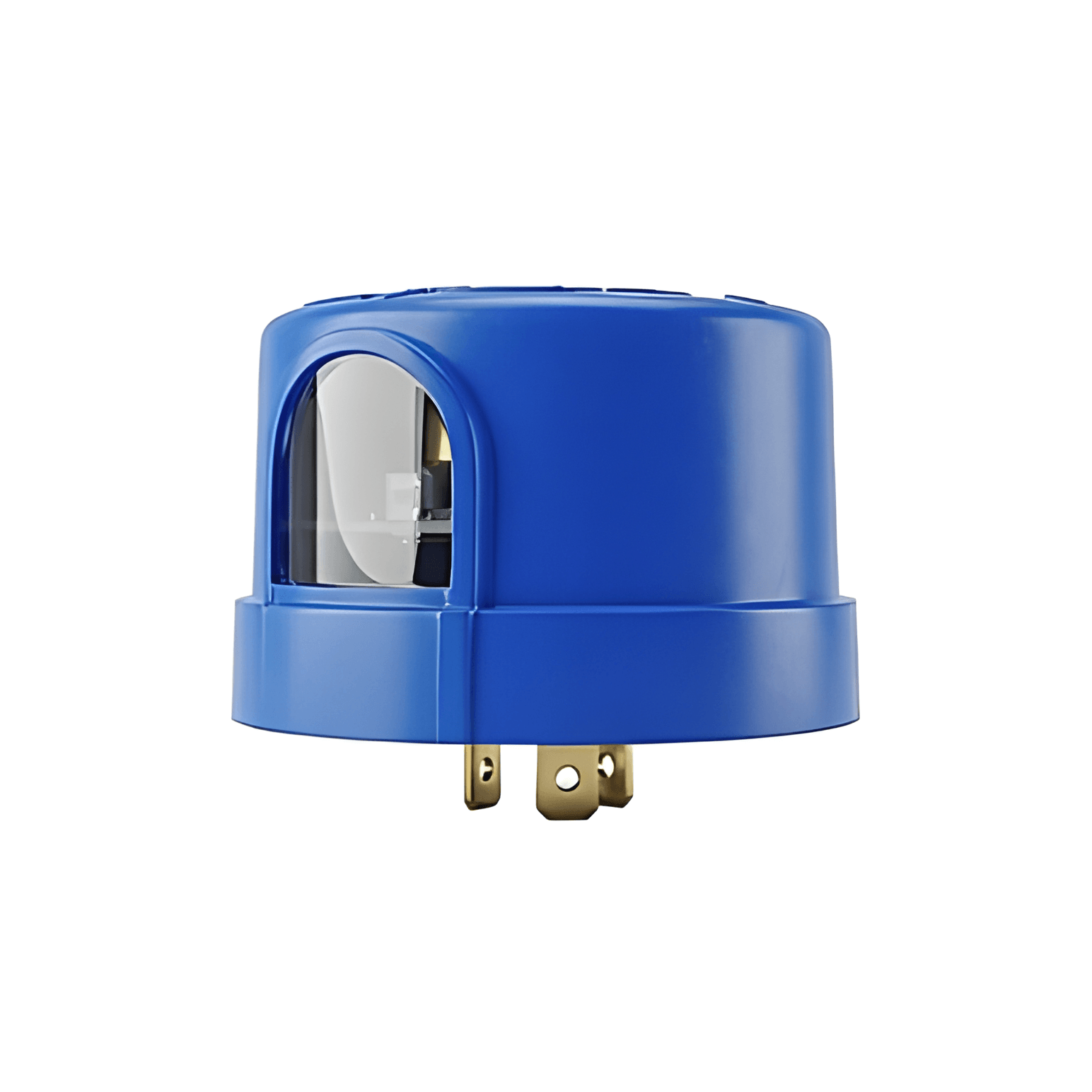

• Rugged high-temp enclosures with environmental protection (interlocking base/cap, UV-resistAt acrylic)
• Compatible with solid state ballasts, drivers, Ad all traditional roadway/area lighting equipment
• Low power consumption (NV: <0.5W @120VAC; HV: 0.9W avg @120VAC)
