Auto Dealership
Lighting Design Guide
Strategic LED lighting that showcases inventory, attracts drive-by traffic, and drives sales
50–70%
Energy Savings
High CRI
True Color Rendering
5000K
Daylight White
Select Your Dealership Zone
Jump to lighting requirements and product recommendations for each area
Vehicle Display Lot (Front)
High-impact display lighting for maximum curb appeal
Used Car / Overflow Lot
Cost-effective coverage with good visibility
Customer Parking
Safety-focused, lower intensity
Service Drive & Parts
Functional task lighting
Building Perimeter & Signage
Brand visibility and security
Dealership Lighting Standards
Industry foot-candle targets for auto dealership environments
Front display lot (new cars)
Used car lot
Customer parking
Service drive
Building perimeter
Source: IES Lighting Handbook 10th Ed., industry best practices. Auto dealerships typically specify 2–5× higher than IES minimum for competitive display.
💡Lighting is a sales tool. Research shows dealerships with properly lit display lots see 20–30% more after-dark foot traffic. Cars under 5000K daylight-white LED show true paint color — unlike orange HPS that makes every car look yellow-brown.
Why 5000K Matters for Dealerships
The difference between selling a car and losing a customer to the lot across the street
HPS / Metal Halide (2200K–4000K)
- ✗ Orange/yellow cast on all vehicles
- ✗ Poor color rendering — paint distorted
- ✗ Metallic finishes look dull and flat
- ✗ Customers can't evaluate true color at night
- ✗ 10–15 minute warm-up time after outage
- ✗ 20,000-hour lamp life, frequent relamping
LED 5000K Daylight White
- ✓ True-to-life color rendering (70+ CRI)
- ✓ Paint pops — reds red, blues blue, whites white
- ✓ Chrome and metallic finishes gleam
- ✓ Attracts drive-by attention after dark
- ✓ Instant-on — full brightness immediately
- ✓ 100,000-hour lifespan — no relamping for 10+ years
Pole Height, Spacing & Wattage by Zone
Dealership lighting specs differ significantly from standard commercial parking lots
Front display (premium)
Front display (standard)
Used car lot
Customer parking
Service drive
📐Front lot secret: Auto dealerships use tighter pole spacing (40–60ft) and higher wattage than standard parking to create a “wall of light” effect visible from the road. The goal is to make the lot brighter than competing businesses along the strip.
Compliance & Energy Incentives
Regulations and programs that affect dealership lighting upgrades
✅ Dark Sky Ordinances
Some municipalities restrict CCT and maximum foot-candles. Full cutoff fixtures required in most jurisdictions. Verify local zoning before specifying.
✅ Utility Rebates (DLC Premium)
DLC Premium certified fixtures qualify for $30–$100 per fixture in utility rebates. A 30-fixture dealership can receive $900–$3,000 upfront, cutting payback to 1–2 years.
✅ ASHRAE 90.1 Exterior Controls

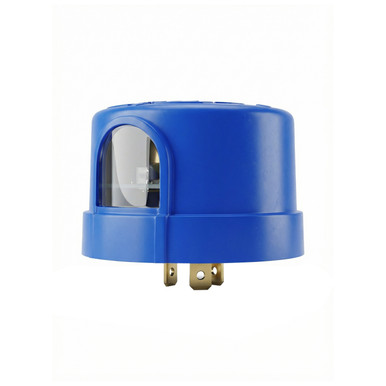

Photocell and occupancy-based dimming required by energy code. After-hours dimming to 50% security level (post-close) reduces energy use further.
✅ After-Hours Dimming Strategy
Program fixtures at 100% during business hours (dusk to close), then 50% overnight for security. Savings: 50% of nighttime energy use without sacrificing security coverage.
Lighting Solutions by Dealership Zone
Design parameters, example configurations, and recommended products for each area
🚗 Vehicle Display Lot (Front)
The front display lot is the single most important lighting investment a dealership makes. At 50–100 fc under 5000K daylight-white LED, every vehicle looks showroom-ready from the road. Tighter pole spacing (40–60ft) and higher wattage than standard parking creates the "wall of light" effect that makes a dealership visible from a quarter mile away. CRI 70+ ensures paint colors are rendered accurately — customers need to trust what they see at night.
Design Parameters
| Target illuminance | 50–100 fc avg |
| Min illuminance | 20 fc |
| Uniformity | 3:1 |
| Pole height | 25–35 ft |
| CCT | 5000K (daylight-white) |
| CRI | 70+ minimum |
Example Configuration
Recommended Products
🚙 Used Car / Overflow Lot

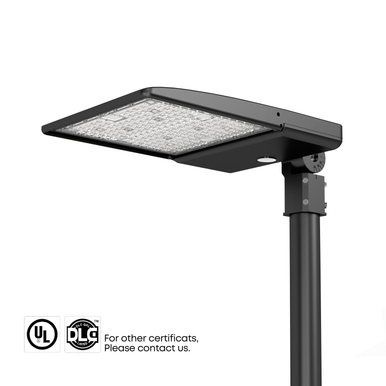

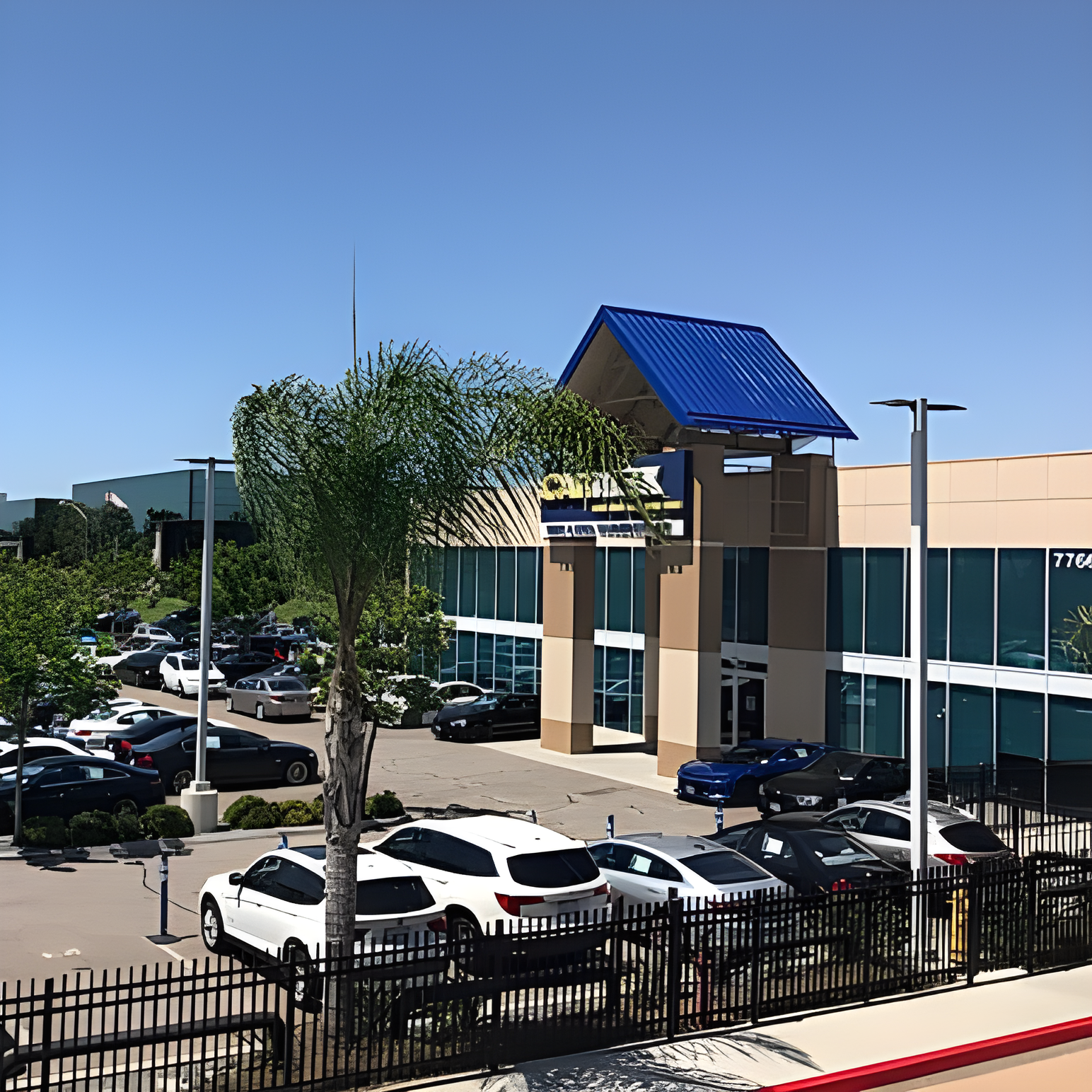

Used car lots need strong visibility at lower cost. At 20–50 fc, vehicles are clearly visible and colors are accurately rendered without the extreme intensity of the premium front lot. OT02 200W–300W or OT Series 200W at 20–25ft poles provides cost-effective coverage that still outperforms older HPS or MH systems by a significant margin.
Design Parameters
| Target illuminance | 20–50 fc avg |
| Min illuminance | 10 fc |
| Uniformity | 4:1 |
| Pole height | 20–25 ft |
| CCT | 5000K |
| Distribution | Type III/V mixed |
Example Configuration
Recommended Products
🏢 Customer Parking

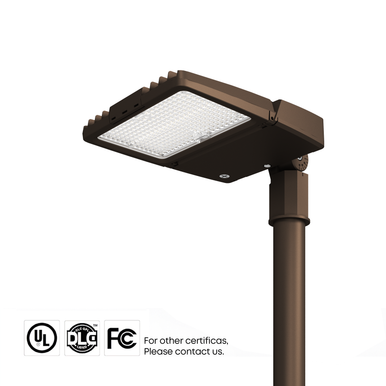

Customer parking follows standard commercial parking lot practices — safety-focused at 2.0–5.0 fc with 4:1 uniformity. This zone doesn't need the extreme intensity of the display lot but should be well-lit enough for customers to feel safe walking to and from the building. Cost-efficient PLB or OT02 100W–150W fixtures are ideal here.
Design Parameters
| Target illuminance | 2.0–5.0 fc avg |
| Min illuminance | 0.5 fc |
| Uniformity | 4:1 |
| Pole height | 20–25 ft |
| CCT | 4000K–5000K |
| Controls | Photocell + after-close dimming |
Example Configuration
Recommended Products
🔧 Service Drive & Parts Area
Service drives require inspection-grade lighting at 30–50 fc for technicians to identify vehicle damage, check fluid levels, and document conditions. The service drive is also the first impression for service customers arriving in the morning — professional-grade LED lighting signals quality service. Wall packs at service bay doors supplement pole lighting for covered areas.
Design Parameters
| Target illuminance | 30–50 fc avg |
| Min illuminance | 10 fc |
| Uniformity | 4:1 |
| Pole height | 15–20 ft |
| CCT | 5000K (task visibility) |
| Distribution | Type III (directional) |
Example Configuration
Recommended Products
🏪 Building Perimeter & Signage

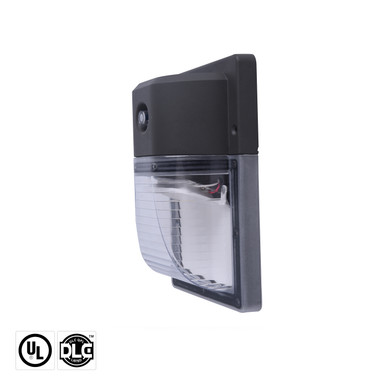

Building perimeter lighting serves dual purpose: security and brand presence. Wall packs at 1.0–3.0 fc keep the building face visible and well-lit for security cameras. Monument sign lighting and canopy lighting at the dealership entrance should match the high-quality brand image. Photocell control ensures dusk-to-dawn operation automatically.
Design Parameters
| Target illuminance | 1.0–3.0 fc avg |
| Min illuminance | 0.5 fc |
| Uniformity | 3:1 |
| Mounting | Wall-mounted (12–18 ft AFF) |
| CCT | 4000K–5000K |
| Controls | Photocell (dusk-to-dawn) |
Example Configuration
Recommended Products
Recommended Products for Auto Dealership Lighting
5000K daylight-white, DLC Premium certified area lights for display lots, service drives, and all dealership zones
LED vs Metal Halide: Energy Savings Comparison
Replacing 1000W metal halide fixtures (1100W actual) with 300W LED area lights
Actual wattage
Annual energy (14hr/day)
Annual cost ($0.12/kWh)
CRI (color rendering)
Warm-up time
30-fixture dealership
DLC Premium rebates of $30–$100/fixture can reduce payback to 1–2 years. Contact your local utility for current rebate programs.
Case Study
Midwest Auto Group — 3-Location LED Retrofit
A regional auto group replaced 1000W MH display lot fixtures across 3 dealerships with OT Series 300W–400W LED at 5000K. Customer survey feedback noted improved ability to evaluate vehicle colors at night. After-hours dimming was programmed to 50% post-closing for security. DLC Premium rebates from the local utility covered 40% of fixture costs.
$44,100
Annual Energy Savings (3 locations)
1.8 yr
Payback (with rebates)
73%
Energy Reduction
Ready to make your dealership stand out?
Get a free photometric layout, energy savings analysis, and utility rebate estimate for your dealership.
