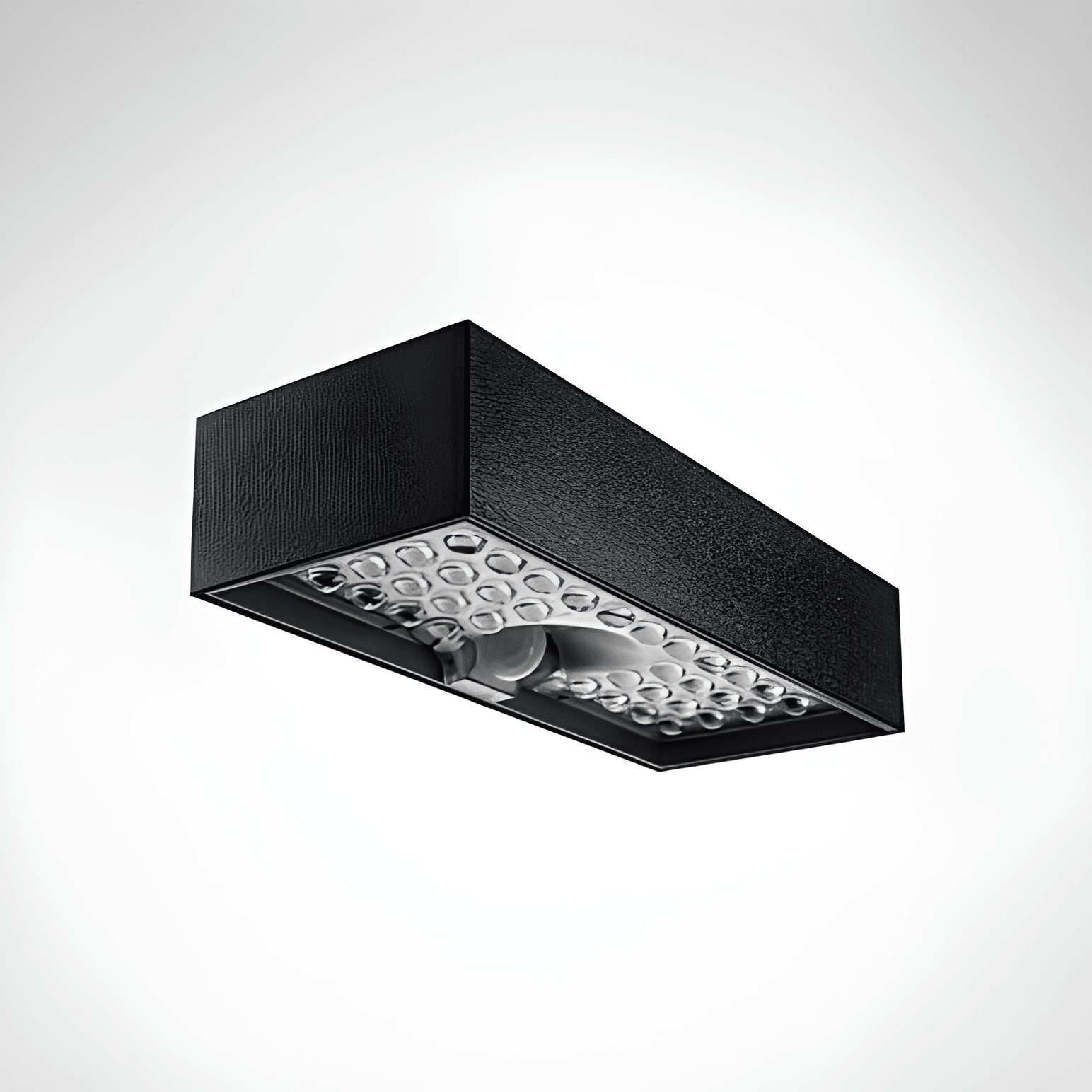

AN-SBR6W-6K solar LED wall light 900LM 35PCS SMD2835 LEDs, 150lm/W high efficacy front & back light design
AN-SBR 6W · Solar Wall Lights

Solar Wall Light AN-SBR 6W

No Wires. No Electrician. 900 Lumens on Every Wall.

SKU: A-SBR6W-6K-BK-3000mAh37V11|
In Stock
3-Year Warranty
$30.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 24. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

No Wires. No Electrician. 900 Lumens on Every Wall.

The AN-SBR 6W mounts in 10 minutes with two screws and zero wiring. Delivers 900 lumens — equivalent to a 60W traditional wall light — powered entirely by its built-in solar panel. For every wall, fence, gate, and stairway where running wire would cost 10x the fixture price.

150 lm/W Efficacy — 60W Traditional Equivalent From 6 Watts of Solar Power

35 premium SMD2835 LEDs deliver 900 lumens at 150 lm/W. That's real pathway and security lighting, not the dim solar glow from hardware-store fixtures. Front and back LEDs illuminate both the target area and the wall surface.

Replaceable 18650 Battery — Replace the $5 Cell, Not the $40 Fixture

3,000mAh / 3.7V Li-ion 18650 battery swaps without tools. After 2-3 years when capacity drops, a $5 replacement restores full performance. 4+ nights in sensor mode, 2+ nights in constant mode per charge.

Fire-Proof V0 Grade Housing — Because Solar Lights Sit in Direct Sun All Day

ABS+PC housing meets UL-94 V0 fire resistance rating with anti-UV treatment. Won't yellow, crack, or deform from years of direct sunlight exposure. Available in Brick-red, Black, or White.

PIR Motion Sensor with Smart Battery Management

120°/6M PIR sensor with intelligent power management: above 30% battery, full brightness on motion; below 30%, reduced output to extend runtime through the night. Never completely dark, always conserving.

Light Output

900 lm
150 lm/W — equals 60W traditional

Battery

11.1 Wh
Replaceable 18650 cell

Runtime

4+ Nights
Sensor mode per charge

Install Time

10 min
2 screws, zero wiring

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
900 lm
Light Output
11.1 Wh
Battery
4+ Nights
Runtime
10 min
Install Time

Electrical

Wattage6W

Optical

Efficacy150lm/W
Lumens150lm
Beam Angleand 120 / 6M PIR motion sensor
Distribution TypeType V
Max Lumens900lm
LED ChipSMD 2835 (35pcs)
Distribution140°x70° polarized

Physical

IP RatingIP65
MountingWall mount
Solar Panel2.8W, DC 5.5V, Monocrystalline with tempered glass
Battery18650, 3000mAh, 3.7V, 11.1Wh (replaceable)
PIR Detection120° angle, ≤6m distance

Certification

CertificationsUL

Warranty

Warranty2-Year Warranty
Lifespan5 hours

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
6W32 lbs34.6 lbs19" × 12" × 9"24

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Photometric data for this product series. Contact sales@auvolar.com for detailed IES files and photometric reports.

Efficacy Comparison

lm/W — higher is better

AN-SBR 6W (this product)
150 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Solar Wall & Security Light Applications

Self-contained solar LED wall lights for off-grid perimeter and pathway security.

🔒

Residential Security & Perimeter

Motion-activated solar wall light floods entry points with bright LED light without any electrical wiring. IP65 sealed housing withstands rain, frost, and UV exposure on building exteriors year-round.

Standard: UL Listed / Residential Code

Technical Requirements

  • Motion sensing with adjustable sensitivity
  • IP65 weather protection
  • Automatic dusk-to-dawn operation

Recommended Specifications

65000K for camera clarityMotion sensor integrated
🏡

Pathway & Garden Entrances

Solar-powered convenience eliminates trenching and wiring costs for pathway lighting along garden walls, fence lines, and property entrances. Rechargeable lithium battery ensures reliable dusk-to-dawn operation.

Standard: Residential / NEC 690

Technical Requirements

  • Autonomous operation from solar
  • Lithium battery for temperature range
  • Weatherproof IP65+

Recommended Specifications

3000K–4000K warm pathwayIP65Adjustable solar panel
🏘️

Multi-Family & HOA Common Areas

Easy wall-mount installation with zero operating cost from the grid makes solar wall lights a cost-effective solution for HOA common area lighting where electrical extension is impractical.

Standard: HOA Standards / NEC 690

Technical Requirements

  • Minimum 3 nights operation on full charge
  • Vandal-resistant housing
  • Weather sealed IP65+

Recommended Specifications

Higher wattage for larger areasIP65 sealedMotion + dusk-to-dawn mode

No accessories available for this product.

Quick Summary

The Solar Wall Light AN-SBR 6W by Auvolar offers 150lm/W efficacy within a 6W range, with no listed certifications.

Frequently Asked Questions

What is the wattage of the Solar Wall Light AN-SBR 6W?
The Solar Wall Light AN-SBR 6W has a wattage of 6W.
How long does the Solar Wall Light AN-SBR 6W last?
The Solar Wall Light AN-SBR 6W has a lifespan of 5 hours.
What is the efficacy of the Solar Wall Light AN-SBR 6W?
The efficacy of the Solar Wall Light AN-SBR 6W is 150lm/W.
What is the color temperature of the Solar Wall Light AN-SBR 6W?
The Solar Wall Light AN-SBR 6W has a color temperature of 6000K.
Does the Solar Wall Light AN-SBR 6W have any certifications?
The Solar Wall Light AN-SBR 6W does not have any listed certifications.
