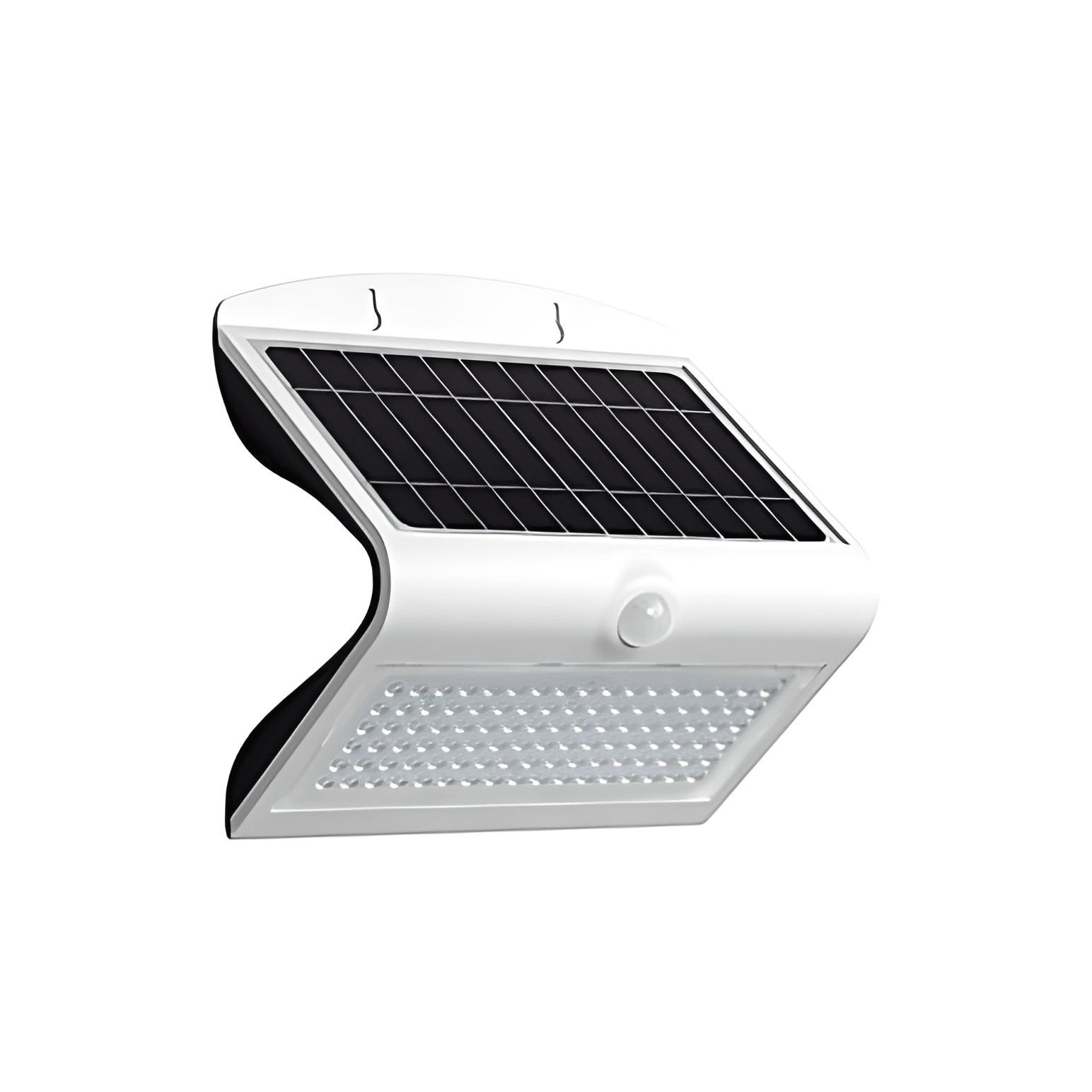

AN-SBFWP-8W solar LED wall light front and back light design, ultra bright SMD2835 LEDs, IP65 waterproof outdoor lighting
AN-SBFWP-8W · Solar Wall Lights

LED Solar Light AN-SBFWP-8W

Zero Wiring. Full Surround Light. Every Wall Deserves This.

SKU: A-SBFWP8W-BK-4000mAh37V|
In Stock
3-Year Warranty
$52.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 8. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Zero Wiring. Full Surround Light. Every Wall Deserves This.

The AN-SBFWP-8W puts 850 lumens of front-and-back illumination on any wall surface without touching an electrical panel. 102 front LEDs light the ground; 2 back LEDs wash the wall. The result: functional security lighting plus architectural ambiance, powered by sun, installed in minutes.

Front + Back Dual LEDs — Lights the Path AND the Wall

102 front-facing SMD2835 LEDs deliver task lighting to the ground below. 2 rear LEDs create a soft wall-wash halo effect. Combined result: functional security illumination plus architectural accent from one cordless fixture.

4,000mAh Battery — 35+ Hours in Sensor Mode on One Charge

Replaceable 3.7V 18650 battery delivers 14.8Wh of stored energy. 35 hours in sensor mode means multiple consecutive cloudy days of coverage. When capacity fades in 2-3 years, swap the battery, not the fixture.

Cordless IP65 Installation — Mount Anywhere Between 2-4 Meters

IP65 rated with ABS+PC anti-UV housing. Operates from -20°C to 50°C. Includes all mounting hardware for screw-in installation on any wall surface. No conduit, no junction box, no permit.

Smart 2-Mode Operation with Automatic Battery Protection

Sensor Mode: dims when idle, full brightness on motion. Keep Lighting Mode: 50% brightness continuous, then auto energy-saving after 5 hours. Both modes include automatic low-battery protection to extend overnight coverage.

Light Output

850 lm
106 lm/W with 104 LEDs

Battery

14.8 Wh
4,000mAh replaceable 18650

Runtime

35+ hrs
Sensor mode per charge

Protection

IP65
Full outdoor weatherproofing

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
850 lm
Light Output
14.8 Wh
Battery
35+ hrs
Runtime
IP65
Protection

Electrical

Wattage8W

Optical

Distribution TypeNarrow
Efficacy106lm/W
LED ChipSMD 2835 (104pcs)
Lumens106lm
Max Lumens850lm

Physical

Battery18650, 3.7V, 4000mAh, 14.8Wh (replaceable)
Charging Time12-15 hours
IP RatingIP65
MountingWall mount
Solar Panel4.4W, DC 5.5V, Monocrystalline with tempered glass

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
8W19 lbs21.1 lbs21.9" × 18.7" × 10.2"8

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Photometric data for this product series. Contact sales@auvolar.com for detailed IES files and photometric reports.

Efficacy Comparison

lm/W — higher is better

Light AN-SBFWP-8W (this product)
150 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Solar Wall & Security Light Applications

Self-contained solar LED wall lights for off-grid perimeter and pathway security.

🔒

Residential Security & Perimeter

Motion-activated solar wall light floods entry points with bright LED light without any electrical wiring. IP65 sealed housing withstands rain, frost, and UV exposure on building exteriors year-round.

Standard: UL Listed / Residential Code

Technical Requirements

  • Motion sensing with adjustable sensitivity
  • IP65 weather protection
  • Automatic dusk-to-dawn operation

Recommended Specifications

85000K for camera clarityMotion sensor integrated
🏡

Pathway & Garden Entrances

Solar-powered convenience eliminates trenching and wiring costs for pathway lighting along garden walls, fence lines, and property entrances. Rechargeable lithium battery ensures reliable dusk-to-dawn operation.

Standard: Residential / NEC 690

Technical Requirements

  • Autonomous operation from solar
  • Lithium battery for temperature range
  • Weatherproof IP65+

Recommended Specifications

3000K–4000K warm pathwayIP65Adjustable solar panel
🏘️

Multi-Family & HOA Common Areas

Easy wall-mount installation with zero operating cost from the grid makes solar wall lights a cost-effective solution for HOA common area lighting where electrical extension is impractical.

Standard: HOA Standards / NEC 690

Technical Requirements

  • Minimum 3 nights operation on full charge
  • Vandal-resistant housing
  • Weather sealed IP65+

Recommended Specifications

Higher wattage for larger areasIP65 sealedMotion + dusk-to-dawn mode

No accessories available for this product.

Quick Summary

The LED Solar Light AN-SBFWP-8W by Auvolar offers 106lm/W efficacy in an 8W range, with no certifications listed.

Frequently Asked Questions

What is the wattage of the Auvolar LED Solar Light AN-SBFWP-8W?
The Auvolar LED Solar Light AN-SBFWP-8W has a wattage of 8W.
How efficient is the Auvolar LED Solar Light AN-SBFWP-8W?
The efficacy of the Auvolar LED Solar Light AN-SBFWP-8W is 106lm/W.
What is the maximum lumen output of the Auvolar LED Solar Light AN-SBFWP-8W?
The maximum lumen output of the Auvolar LED Solar Light AN-SBFWP-8W is 850 lm.
What type of battery does the Auvolar LED Solar Light AN-SBFWP-8W use?
The Auvolar LED Solar Light AN-SBFWP-8W uses a 18650, 3.7V, 4000mAh, 14.8Wh replaceable battery.
How long does it take to charge the Auvolar LED Solar Light AN-SBFWP-8W?
The charging time for the Auvolar LED Solar Light AN-SBFWP-8W is 12-15 hours.
