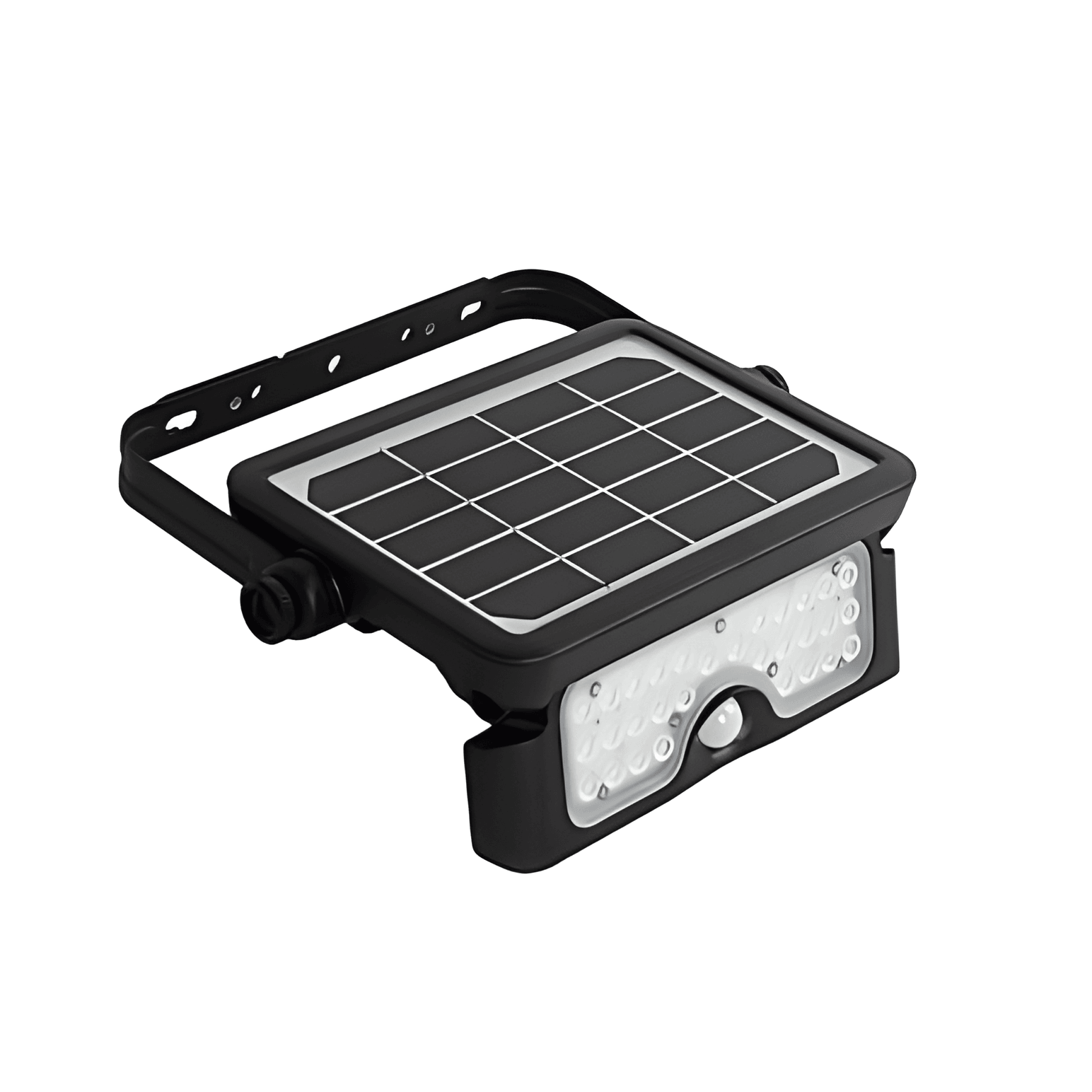

AN-SFL-5W-4K-BK solar LED flood light global patent foldable design, slim pad-like light panel with integrated solar panel
AN-SFL-5W · Solar Flood Lights

Solar Flood Light AN-SFL-5W

No Wiring. No Trenching. No Electrician. Just Light.

SKU: A-SFL5W-4K-BK-3000mAh37V|
In Stock
3-Year Warranty
$30.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 18. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

No Wiring. No Trenching. No Electrician. Just Light.

The AN-SFL-5W is a patented foldable solar flood light that goes from box to illumination in 60 seconds — no permits, no utility bill, no infrastructure. Unfold it, aim it, forget it. For job sites, campsites, gardens, and any location where running wire costs more than the light itself.

Foldable Patent Design — Deploys Like a Tablet, Lights Like a Flood

The light panel folds flat against the solar panel into a tablet-sized unit. No assembly. No loose parts. Open it, set it, done. Global patent design integrates solar panel and LED panel into one unit that fits in a backpack.

Replaceable 18650 Battery — Don't Throw Away the Fixture When the Battery Dies

Standard 3,000mAh 18650 Li-ion battery swaps in seconds. When capacity degrades in 2-3 years, replace a $5 battery — not a $50 fixture. No tools required.

360° Bracket + 135° Panel Tilt — Aim Anywhere Without Reinstalling

Full rotation bracket and adjustable light panel let you redirect the beam without touching a single screw. Wall, pole, fence, or freestanding on a table — one fixture, every angle.

PIR Motion Sensor with 2 Modes — Smart Enough to Conserve Its Own Power

Sensor mode dims to 30% and boosts to full when motion is detected within 6 meters. Constant mode runs all night. Either way, the 2.3W mono-crystalline panel recharges in 6 hours of sun.

Light Output

500 lm
100 lm/W efficacy

Battery

3,000 mAh
Replaceable 18650 Li-ion

Charge Time

6 hrs
Full sun to full charge

Protection

IP65
Rain, dust, job site ready

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
500 lm
Light Output
3,000 mAh
Battery
6 hrs
Charge Time
IP65
Protection

Electrical

Wattage5W

Optical

Distribution TypeNarrow
Efficacy100lm/W
Lumens100lm

Physical

BatteryLithium 3000mAh
IP RatingIP65
MountingBracket 360° adjustable, light panel 135° adjustable
Solar PanelMonocrystalline silicon, anti-UV optical lens

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
5W28 lbs30.4 lbs15.4" × 10" × 13.6"18

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Photometric data for this product series. Contact sales@auvolar.com for detailed IES files and photometric reports.

Efficacy Comparison

lm/W — higher is better

Light AN-SFL-5W (this product)
150 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Off-Grid & Solar Lighting Applications

All-in-one solar LED solutions for remote sites, pathways, and infrastructure without utility power.

🌿

Remote Pathways & Parks

Self-contained solar panel and lithium battery deliver 5-equivalent illumination on pedestrian paths, park walkways, and greenway trails without trenching utility power — reducing installation cost by up to 80%.

Standard: IES RP-5 / IDA Outdoor Lighting Criteria

Technical Requirements

  • Autonomous operation 2–5 consecutive cloudy days
  • Motion sensing for battery conservation
  • IP65 weather protection

Recommended Specifications

Motion sensor mode3000K–4000K warm whiteTilt-adjustable panel
🅿️

Remote Parking Areas & Lots

Ideal for overflow parking, remote facilities, and temporary construction sites where grid extension is cost-prohibitive. Integrated photocell ensures automatic dusk-to-dawn operation without manual controls.

Standard: IES RP-20 / NEC 690 Solar Electrical Systems

Technical Requirements

  • 0.5–1.0 fc average parking illuminance
  • Dusk-to-dawn photocell control
  • Pole-mount or direct-arm options

Recommended Specifications

55000K for parking clarityAdjustable pole height 15–25 ft
🛤️

Rural Roads & Agricultural Sites

Farm roads, grain elevator access, and rural property lighting without costly utility extension. Robust IP65 housing withstands wind, rain, and agricultural dust environments with zero operating cost from the grid.

Standard: IES RP-8 Rural / NFPA 780 Lightning Protection

Technical Requirements

  • Standalone operation without grid
  • IP65 minimum
  • Wind load rating per local code

Recommended Specifications

Higher wattage for roadway coverageAdjustable panel angle for latitude10-year battery lifecycle
🏕️

Construction Sites & Temporary Installations

Rapid deployment with no electrical contractor required makes solar lights the cost-effective choice for construction site safety lighting, temporary perimeter security, and event illumination.

Standard: OSHA 1926.56 Construction Lighting / NEC 690

Technical Requirements

  • 0.5 fc minimum safety illuminance
  • Portable pole or stake mount
  • Vandal-resistant housing

Recommended Specifications

Motion activation to extend battery lifeIP65 rugged housingQuick-deploy stake mount

No accessories available for this product.

Quick Summary

The Solar Flood Light AN-SFL-5W by Auvolar offers 100lm/W efficacy with a 5W wattage range and a 3-year limited warranty.

Frequently Asked Questions

What is the wattage of the Auvolar Solar Flood Light AN-SFL-5W?
The Auvolar Solar Flood Light AN-SFL-5W has a wattage of 5W.
What is the efficacy of the Auvolar Solar Flood Light AN-SFL-5W?
The efficacy of the Auvolar Solar Flood Light AN-SFL-5W is 100lm/W.
Does the Auvolar Solar Flood Light AN-SFL-5W have any certifications?
The Auvolar Solar Flood Light AN-SFL-5W does not have any listed certifications.
What is the warranty period for the Auvolar Solar Flood Light AN-SFL-5W?
The Auvolar Solar Flood Light AN-SFL-5W comes with a 3-Year Limited Warranty.
What is the color temperature of the Auvolar Solar Flood Light AN-SFL-5W?
The color temperature of the Auvolar Solar Flood Light AN-SFL-5W is 4000K.
