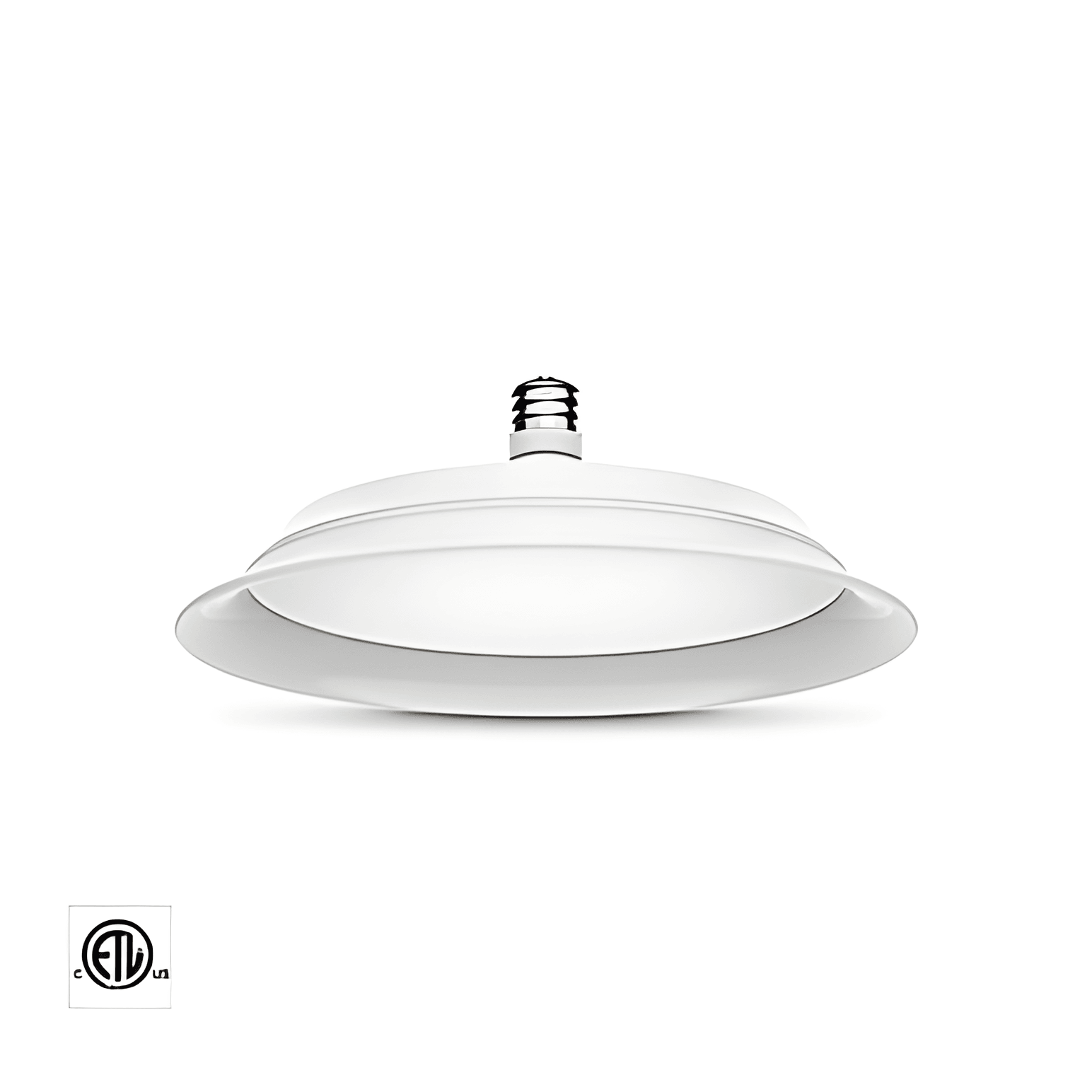

A-LB50W-NV-5K LED Low Bay Light front view showing white lens and metal housing, Ø380mm diameter industrial lighting fixture
A-LB · Low Bay Lights

Low Bay Light A-LB Series

Screw It Into the Existing Socket. Get 6,500 Lumens. Done.

SKU: A-LB50W-NV-5K-103D-WH|
In Stock
ETL Listed
5-Year Warranty
$40.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 4. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Screw It Into the Existing Socket. Get 6,500 Lumens. Done.

A 50W LED low bay with E26/E39 base that retrofits directly into existing sockets — no rewiring, no new junction boxes, no electrician for half a day. 130 lm/W, 6500 lumens, metal housing for real heat dissipation, and a low-UGR luminous surface that doesn't blind workers below.

E26/E39 Base — Retrofit Without Rewiring

Screws directly into existing HID, CFL, or incandescent sockets. For facilities with dozens of low-bay fixtures, this means a fixture-by-fixture upgrade with zero electrical work — maintenance staff can do it with a ladder.

6,500 Lumens from 50W — Replaces 175W Metal Halide

Same light output as a 175W metal halide at 70% less power consumption. No warm-up time, no re-strike delay after power interruptions, and consistent color temperature from day one to day 50,000.

Low UGR with Large Luminous Surface

Unlike corn cob LEDs that create harsh point-source glare, this fixture spreads light across a large diffused surface. Workers underneath get even, comfortable illumination without the squinting and headaches.

Metal Housing with Proper Heat Dissipation

Durable metal construction manages thermal load the way corn cob bulbs in enclosed fixtures cannot. Better thermal management means longer LED life and consistent lumen output over the fixture's 50,000-hour rated life.

120–277V Universal Voltage

Works on any standard North American circuit voltage. Whether the facility runs 120V, 208V, 240V, or 277V, the fixture adapts — no ballast to match, no transformer to source.

Output

6,500 lm
Replaces 175W metal halide — same light, 70% less power

Efficacy

130 lm/W
High-efficiency operation for maximum energy savings

Install

Screw-In
E26/E39 base — no rewiring, no electrician needed

Warranty

5 Years
Full coverage with proven LED reliability

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
6,500 lm
Output
130 lm/W
Efficacy
Screw-In
Install
5 Years
Warranty

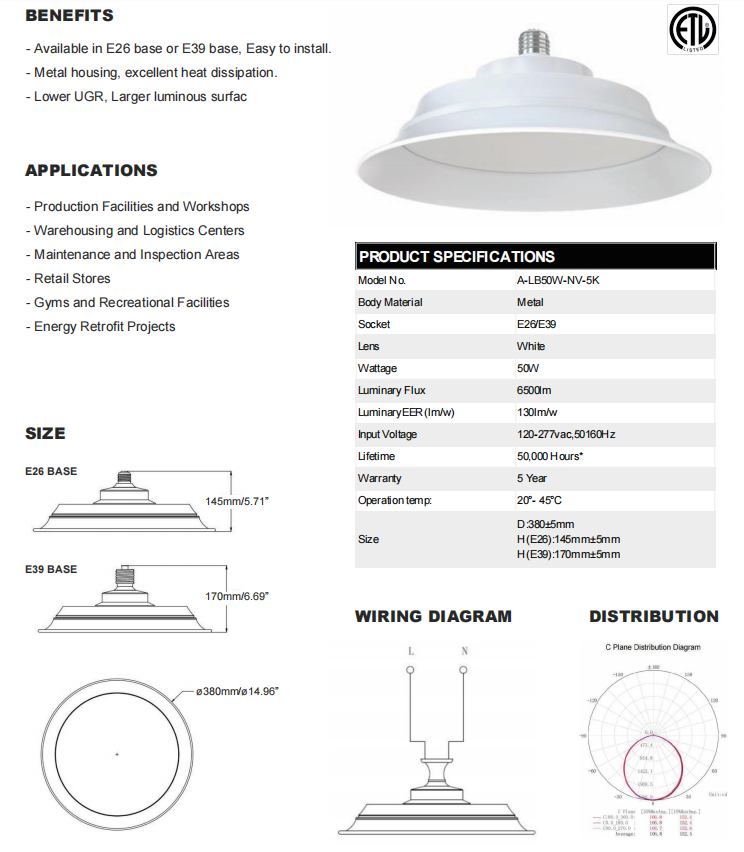

Electrical

Voltage120-277VAC
Wattage50W
Frequency50/60Hz

Optical

Efficacy130lm/wlm/W
Lumens6500lm
Distribution TypeNarrow
CCT Options5000K

Physical

Housing MaterialMetal
MountingE26 or E39 base

Certification

UL ListedETL listed

Warranty

Warranty5-Year Warranty

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
50W10 lbs11.2 lbs30.9" × 15.8" × 13"4

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Standards Compliance

Based on max wattage lumen output per optic. Actual compliance depends on layout design and fixture count.

🏆
FIFA A
≥ 2400 lux avg
104°
FIFA C
≥ 1000 lux avg
104°
🏈
IES RP-6 Class I
≥ 100 fc avg
104°
🎾
IES RP-6 Class III
≥ 30 fc avg
104°

Beam Pattern & CBCP

Peak Center Beam Candlepower and throw ratings by optic.

104°
104° optic
Peak CBCP2,692 cd
Beam Angle104°
Throw RatingWide Flood (<30ft)
Wide area coverage · Low-mount <30ft · Recreational

⚡ Quick Project Estimator

Select your sport and level for an instant fixture recommendation.

Recommended Optic
60°
Fixture Count
48-72
Pole Layout
4-6 poles
Target Level
500-1000 lux (FIFA C/D)
Mounting Height
50-60ft
Get Full Photometric Layout (Free) →

Custom AGi32-grade simulation with foot-candle grid, uniformity ratios, and pole spacing

Lumen Output (lm)

Tested per IESNA LM-79-19 at 25°C, EVERFINE GO-2000A goniophotometer

Optic50W
104° ()6,500
Efficacy (lm/W)130

Efficacy Comparison

lm/W — higher is better

LB Series (this product)
130 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Low Bay Retrofit Applications for 12–15ft Ceilings

ETL-listed 50W E26/E39 retrofit low bay delivering 6,500 lumens at 130 lm/W — instant upgrade for warehouses, workshops, canopies, retail, and residential garages

🏗️

Warehouse Mezzanine & Low Ceilings

Warehouse mezzanine levels and low-ceiling areas (12–15ft) cannot use standard high bay fixtures that require 20ft+ mounting heights for proper beam spread. The A-LB Series 50W low bay delivers 6,500 lumens at 130 lm/W with an E26/E39 mogul base that screws directly into existing HID or CFL sockets — zero new wiring, zero new fixtures, zero electrician required for basic retrofit. It meets IES RP-7 recommended 20–30 fc for general warehouse areas with a wide 120° beam angle optimized for 12–15ft mounting heights. Facilities replacing 175W metal halide low bays save 70% on energy immediately with instant-on illumination (no 10-minute MH warm-up delay). ETL-listed for immediate code compliance. Calculate your mezzanine retrofit quantity with LightSpec AI free layout tool.

Standard: IES RP-7 / OSHA 1910.303 / ASHRAE 90.1

Technical Requirements

  • 20–30 fc maintained at floor level per IES RP-7
  • E26 or E39 mogul base compatibility for socket retrofit
  • ETL listed for dry/damp locations
  • 120° beam angle for 12–15ft mounting height coverage
  • 50,000-hour L70 rated life minimum
  • 120–277V universal voltage input

Recommended Specifications

50W / 6,500 lm for 12–15ft mezzanine ceilings5000K CCT for maximum visibility during picking operationsRetrofit existing E39 mogul sockets — no new wiring requiredPair with occupancy sensor for zone-based dimmingEnclosed fixture rated for retrofitting into existing enclosed luminaires

Installation Notes

  • Verify existing socket is E26 or E39 and fixture is rated for enclosed use before retrofit
  • Confirm fixture orientation — lamp must hang vertically (base up) for proper thermal management
  • Check ballast bypass: remove or disconnect existing HID ballast before installation
  • Verify branch circuit capacity supports LED load after ballast removal

Regional Compliance Notes

California Title 24 §140.6 requires occupancy controls in warehouse spaces >5,000 sq ft

ASHRAE 90.1-2022 §9.4.1.1(g) mandates automatic controls in warehouse storage areas — pair with ceiling sensor

🔧

Workshop & Maintenance Bays

Workshops and maintenance bays demand 30–50 fc of shadow-free task lighting for detailed inspection, assembly, and repair work — with the durability to withstand airborne dust, vibration, and incidental tool contact. The A-LB Series 50W delivers 6,500 lumens at 130 lm/W from a compact E26/E39 retrofit lamp that installs in minutes into existing sockets over workbenches and maintenance stations. OSHA 1926.56 requires minimum 30 fc for detailed mechanical work, and the 120° beam angle of the LB Series provides uniform coverage across a standard 8–10ft workbench area from a single fixture at 12ft mounting height. Replacing 150–175W metal halide workshop lights saves $65–95 per fixture annually in energy costs alone. Design your workshop task lighting layout with LightSpec AI free tool to eliminate work-surface shadows.

Standard: IES RP-7 / OSHA 1926.56 / NEC 410

Technical Requirements

  • 30–50 fc at workbench surface per IES RP-7 / OSHA 1926.56
  • Instant-on: zero warm-up time (vs. 10-min MH delay)
  • CRI ≥80 for accurate color identification during inspection
  • E26/E39 base for direct socket retrofit
  • 120° beam for wide work-area coverage from 10–14ft height
  • Vibration-resistant LED construction — no fragile filaments or arc tubes

Recommended Specifications

50W / 6,500 lm for 10–14ft workshop ceilings5000K CCT for maximum detail visibility and wire color identificationPair with reflector accessory for concentrated task illuminationSurge protection at panel for motor-heavy workshop environmentsDual fixtures over large workbenches for shadow elimination

Installation Notes

  • Bypass existing HID ballast before lamp installation — direct-wire to socket
  • Hang vertically (base up) — horizontal mounting reduces thermal life by 20%+
  • For dusty workshops, clean lens surface every 6 months to maintain rated output

Regional Compliance Notes

California Title 24 §140.6 requires manual-ON/auto-OFF vacancy sensors in workshop spaces

ASHRAE 90.1-2022 §9.4.1.2 mandates automatic shut-off controls in maintenance areas

Canopy & Gas Station

Gas station canopies and commercial covered areas need bright, uniform illumination for customer safety and security while meeting stringent outdoor energy codes. The A-LB Series 50W at 6,500 lumens provides IES RP-33 recommended 20–30 fc under canopy at fuel dispensing areas, with the E26/E39 base allowing rapid retrofit into existing canopy fixture sockets. At 130 lm/W efficacy, it qualifies for utility energy rebates averaging $20–40 per lamp — often covering 50%+ of product cost. Instant-on illumination eliminates the dangerous 5–10 minute dark period during MH re-strike after power interruptions. ETL-listed and rated for use in enclosed canopy fixtures, it meets NEC 514 requirements for fuel dispensing area lighting. Verify your canopy uniformity meets IES standards with LightSpec AI free calculator.

Standard: IES RP-33 / UL 1598 / NEC 514

Technical Requirements

  • 20–30 fc under canopy at fuel dispenser per IES RP-33
  • ETL listed for damp location / enclosed fixture use
  • E26/E39 mogul base for existing canopy socket retrofit
  • Instant-on: critical for safety during power interruption re-strike
  • 120–277V universal input for commercial utility power
  • Minimum 50,000-hour L70 for reduced canopy maintenance access

Recommended Specifications

50W / 6,500 lm per socket for standard 14ft canopy height5000K CCT for maximum nighttime visibility and securityEnclosed fixture rated for weather-sealed canopy housingsPhotocell control for dusk-to-dawn automatic operation

Installation Notes

  • De-energize circuit and bypass HID ballast before lamp insertion
  • Verify enclosed fixture thermal rating — lamp must not exceed fixture maximum wattage
  • Orient lamp base-up for optimal thermal dissipation in enclosed canopy fixtures

Regional Compliance Notes

California Title 24 §140.7 requires canopy lighting LPD ≤0.40 W/sq ft with automatic daylight controls

ASHRAE 90.1-2022 §9.4.1.4 mandates photocell or astronomical timeclock for exterior canopy lighting

🏪

Small Retail & Convenience Stores

Small retail stores and convenience shops need bright, inviting illumination that drives customer traffic and purchase decisions — but cannot justify the cost of full fixture replacement. The A-LB Series 50W E26/E39 retrofit delivers 6,500 lumens at 130 lm/W, achieving IES RP-2 recommended 30–50 fc for retail sales floors by screwing directly into existing socket fixtures. CRI ≥80 ensures accurate merchandise color rendering that influences buying behavior. A typical 2,000 sq ft convenience store retrofits 8–12 fixtures in under 2 hours with zero electrician cost, saving $800–1,500 in installation labor versus new fixtures. Energy savings of 65–75% versus metal halide reduce monthly lighting costs by $150–250. Use LightSpec AI free retail layout tool to verify uniform coverage meets IES merchandising recommendations.

Standard: IES RP-2 / ASHRAE 90.1 / ADA

Technical Requirements

  • 30–50 fc on retail sales floor per IES RP-2
  • CRI ≥80 for accurate product color rendering
  • E26/E39 base for rapid socket-to-socket retrofit
  • ETL listed for dry/damp commercial locations
  • 120–277V universal input
  • 50,000-hour rated life for minimal maintenance disruption

Recommended Specifications

50W / 6,500 lm for 10–14ft retail ceilings4000K CCT for neutral, inviting retail ambianceRetrofit 2–3 fixtures per 500 sq ft for uniform 30–50 fc coveragePair with photocell or timer for signage and window display areas

Installation Notes

  • Retrofit during off-hours — each lamp installs in under 5 minutes including ballast bypass
  • Verify lamp fits within existing fixture housing depth before bulk purchase
  • Remove and recycle existing MH/HPS lamps per local hazardous waste requirements

Regional Compliance Notes

California Title 24 §140.6(a) requires automatic controls in retail spaces — occupancy sensors or daylight dimming

ASHRAE 90.1-2022 Table 9.6.1 allows 1.40 W/sq ft LPD for convenience stores — 50W LB Series easily complies

🏠

Residential Garage & Barn

Residential garages, barns, and outbuildings typically have 1–2 existing E26 sockets providing dim, inadequate lighting from 60–100W incandescent or CFL bulbs. The A-LB Series 50W transforms these spaces by delivering 6,500 lumens from the same E26 socket — a 10x brightness increase with no new wiring. At 130 lm/W, it provides IES RP-11 recommended 20–30 fc for residential garages ideal for vehicle maintenance, woodworking, and general workshop tasks. DIY installation takes under 2 minutes: screw in, turn on. The 50,000-hour rated life means 20+ years of service at typical residential usage rates, eliminating ladder trips for bulb changes. At $25–35 per lamp with $50–90 annual energy savings versus equivalent incandescent output, payback is under 6 months. Model your garage lighting with LightSpec AI free tool.

Standard: IES RP-11 / NEC 210.8 / IRC E3902

Technical Requirements

  • 20–30 fc at floor level per IES RP-11 residential recommendations
  • E26 standard base for universal residential socket compatibility
  • ETL listed for damp locations (garages, barns)
  • 120V residential input voltage
  • 50,000-hour L70 rated life
  • Enclosed fixture rated for existing garage door opener lights

Recommended Specifications

50W / 6,500 lm for standard 8–10ft residential garage ceilings5000K CCT for workshop-bright task visibilityOne lamp per vehicle bay for adequate coveragePair with pull-chain or smart switch for convenient control

Installation Notes

  • Screw into existing E26 socket — no tools, no wiring, no electrician required
  • Hang vertically (base up) for optimal cooling and maximum lamp life
  • If replacing in enclosed fixture, verify fixture is rated for 50W LED thermal load

Regional Compliance Notes

California Title 24 §150.0(k) requires high-efficacy lighting in residential garages — A-LB Series at 130 lm/W exceeds requirement

IRC E3902 / NEC 210.8(A) requires GFCI protection in residential garages — verify existing circuit compliance

No accessories available for this product.

Quick Summary

The Auvolar Low Bay Light A-LB Series features a 50W wattage range, 130lm/W efficacy, and is ETL listed for quality assurance.

Frequently Asked Questions

What is the wattage of the Auvolar Low Bay Light A-LB Series?
The Auvolar Low Bay Light A-LB Series has a wattage of 50W.
What is the efficacy of the A-LB Series Low Bay Light?
The efficacy of the A-LB Series Low Bay Light is 130 lm/W.
Is the Auvolar A-LB Series Low Bay Light ETL listed?
Yes, the Auvolar A-LB Series Low Bay Light is ETL listed.
What voltage range does the Auvolar Low Bay Light A-LB Series support?
The Auvolar Low Bay Light A-LB Series supports a voltage range of 120-277VAC.
What color temperature options are available for the A-LB Series?
The A-LB Series offers a color temperature of 5000K.
