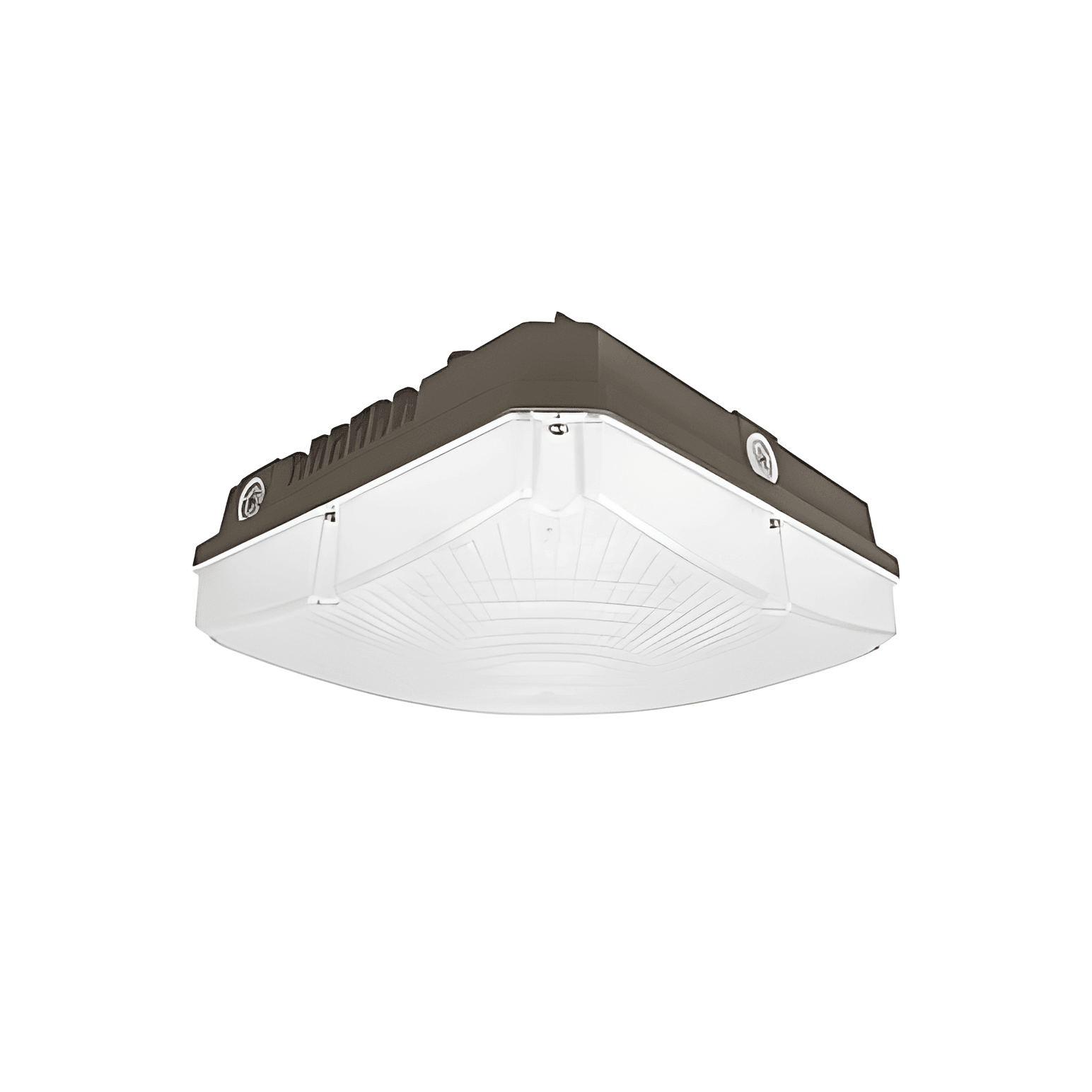

ETL DLC certified LED garage canopy light with fin heat dissipation design, 40W-70W for wet location parking garage lighting
AN-CN40/60/70W · Garage Lights

Garage Canopy Light AN-CN40/60/70W

ETL + DLC Listed Means It Passes Inspection and Qualifies for Rebates — Day One.

SKU: A-CN70WS-NV-345KS-BZ-MW|
In Stock
DLC Listed
ETL Listed
5-Year Warranty
$114.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 4. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

ETL + DLC Listed Means It Passes Inspection and Qualifies for Rebates — Day One.

A wet-location canopy light with ETL and DLC certifications built in, not pending. 120 lm/W, 3CCT selectable, available with microwave sensor, and backed by 50,000-hour rated life. Spec it, install it, get the rebate — no waiting for certification paperwork.

DLC Listed = Utility Rebate Eligible Immediately

DesignLights Consortium listing means this fixture qualifies for utility rebate programs across most US markets. On parking garage retrofits where fixture counts run into the hundreds, DLC rebates can cover 30–50% of the fixture cost.

Microwave Sensor Option for Occupancy-Based Dimming

Integrated microwave sensor detects vehicles and pedestrians through the fixture lens — no external sensor to install, align, or maintain. Dims unoccupied zones to save energy and ramps to full instantly on detection.

3CCT Adjustable with 155° Flood — No Dark Spots in the Bay

Select 3000K, 4000K, or 5000K on-site. The 155° beam angle delivers wide, even coverage that reduces dark spots and minimizes the number of fixtures needed per row.

LUMILEDS Chips + >90% Lens Transmission

Premium LED chips paired with a high-transmission lens means the light that's generated actually reaches the pavement. Low-quality optics can waste 15–20% of generated lumens — this design minimizes that loss.

Certifications

ETL + DLC
Code-compliant and rebate-eligible from day one

Efficacy

120 lm/W
LUMILEDS-powered efficiency for lower operating costs

Beam

155°
Ultra-wide distribution reduces total fixture count

Lifespan

50,000 hrs
Rated for continuous 24/7 garage and canopy operation

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
40/60/70W, 70W
Wattage Range
120lm/w
Efficacy
7981
Max Lumens
IP66
IP Rating
50,000 hours hours
L70 Lifespan
5 years
Warranty

Optical

Distribution TypeType V

Custom

Beam angle155°
Efficacy120lm/w
Voltage120-277VAC
Wattage40/60/70W, 70W

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
40-70W6.5 lbs28 lbs23" × 13" × 13"4

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Standards Compliance

Based on max wattage lumen output per optic. Actual compliance depends on layout design and fixture count.

🏆
FIFA A
≥ 2400 lux avg
120°
FIFA C
≥ 1000 lux avg
120°
🏈
IES RP-6 Class I
≥ 100 fc avg
120°
🎾
IES RP-6 Class III
≥ 30 fc avg
120°

Beam Pattern & CBCP

Peak Center Beam Candlepower and throw ratings by optic.

120°
120° optic
Peak CBCP2,674 cd
Beam Angle120°
Throw RatingWide Flood (<30ft)
Wide area coverage · Low-mount <30ft · Recreational

⚡ Quick Project Estimator

Select your sport and level for an instant fixture recommendation.

Recommended Optic
60°
Fixture Count
48-72
Pole Layout
4-6 poles
Target Level
500-1000 lux (FIFA C/D)
Mounting Height
50-60ft
Get Full Photometric Layout (Free) →

Custom AGi32-grade simulation with foot-candle grid, uniformity ratios, and pole spacing

Lumen Output (lm)

Tested per IESNA LM-79-19 at 25°C, EVERFINE GO-2000A goniophotometer

Optic40W60W70W
120° ()4,8007,2008,400
Efficacy (lm/W)120120120

Efficacy Comparison

lm/W — higher is better

Light AN-CN40/60/70W (this product)
120 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Canopy & Garage Lighting Applications

Surface-mount LED canopy lights engineered for gas stations, parking garages, and covered outdoor structures.

Gas Station & Fueling Canopies

Flush-mount design and IP65 protection handle the vibration, fuel vapors, and weather exposure at fueling canopies. High-lumen output meets IES RP-2 fuel canopy illuminance requirements for safe nighttime fueling.

Standard:

Technical Requirements

  • 20–30 fc average at fuel island
  • IP65 vapor-resistant housing
  • UL Listed for wet locations

Recommended Specifications

60W–150W5000K for safety clarityIP65 sealed
🅿️

Parking Garage Ceilings

Low-profile flush-mount configuration maximizes headroom in parking structures while delivering uniform illumination across driving lanes and stall areas. Sealed design resists vehicle exhaust and tire wash debris.

Standard:

Technical Requirements

  • 5–10 fc average interior garage
  • Wet location rated
  • 0–10V dimming for daylight zones

Recommended Specifications

4000K–5000KIP65 sealed0–10V dimming
🏬

Retail Covered Walkways & Entries

Clean architectural profile suits retail shopping center covered walkways, hotel porte-cochères, and commercial building canopies where ceiling-mount fixtures must blend with exterior aesthetics.

Standard:

Technical Requirements

  • 5–15 fc at pedestrian level
  • Aesthetically integrated housing
  • DLC listed for rebates

Recommended Specifications

3000K–4000K for retail ambiance60W–150WFlush surface mount

No accessories available for this product.

Quick Summary

The Garage Canopy Light AN-CN40/60/70W by Auvolar offers a wattage range of 40-70W with an efficacy of 120lm/w, and is ETL and DLC listed.

Frequently Asked Questions

What is the wattage range for the Auvolar Garage Canopy Light AN-CN40/60/70W?
The Auvolar Garage Canopy Light AN-CN40/60/70W has a wattage range of 40-70W.
What is the efficacy of the Auvolar Garage Canopy Light AN-CN40/60/70W?
The efficacy of the Auvolar Garage Canopy Light AN-CN40/60/70W is 120lm/w.
What certifications does the Auvolar Garage Canopy Light AN-CN40/60/70W have?
The Auvolar Garage Canopy Light AN-CN40/60/70W is ETL Listed and DLC Listed.
What is the voltage range for the Auvolar Garage Canopy Light AN-CN40/60/70W?
The voltage range for the Auvolar Garage Canopy Light AN-CN40/60/70W is 120-277VAC.
What color temperature options are available for the Auvolar Garage Canopy Light AN-CN40/60/70W?
The Auvolar Garage Canopy Light AN-CN40/60/70W offers CCT options of 3000K, 4000K, and 5000K.
