In-stock ships in 24h

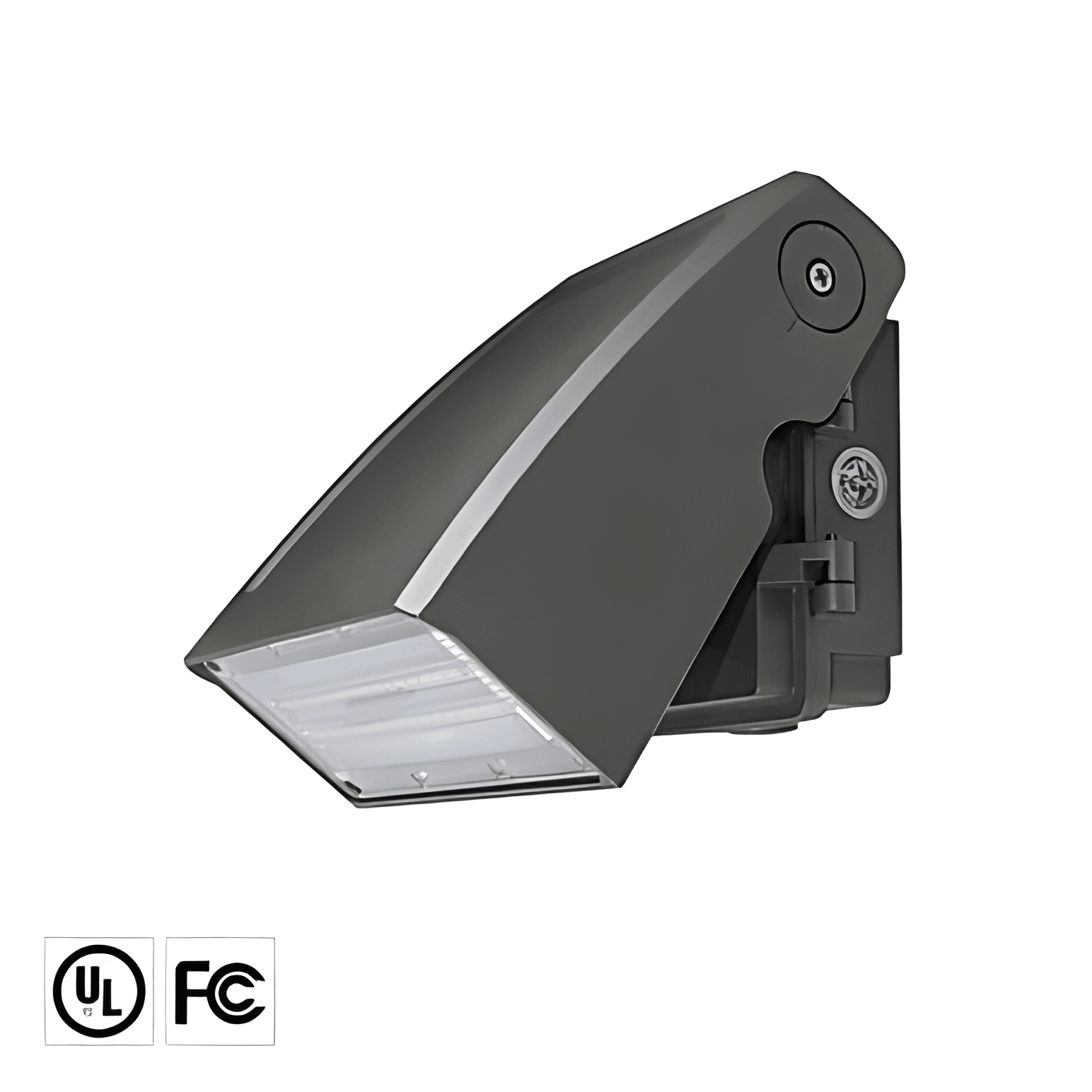

Wall Pack Light TWP 40W/80W - Image 1
Save 29%

Wall Pack Light TWP 40W/80W

SKU: AN-TWP-40-NV-3/4/5K-120D-BR|
118 In Stock
$90.00$126.00-29%

CCT Adjustable LED Wall Pack 40W/80W - Wet Location, 3000K/4000K/5000K, 5-Year Warranty High Efficiency Up to 125lm/w LED Wall Light, 1-10V Dimmable, AC120-277V, Ra>70, PF>0.9 AN-TWP-40W-345K/AN...

SKU: AN-TWP-40-NV-3/4/5K-120D-BR

1
Request Volume Quote

Downloads & Resources

Loading downloads...
Free Shipping on $500+
5-Year Warranty
DLC Certified
UL/ETL Listed

Compatible Accessories

Build your complete lighting system

Accessories Coming Soon

Mounting brackets, sensors, poles, and more will be available shortly.

Contact Us for Accessories

Product Details

CCT Adjustable LED Wall Pack 40W/80W - Wet Location, 3000K/4000K/5000K, 5-Year Warranty

High Efficiency Up to 125lm/w LED Wall Light, 1-10V Dimmable, AC120-277V, Ra>70, PF>0.9

AN-TWP-40W-345K/AN-TWP-80W-345K

Energy-Saving 70% Waterproof LED Wall Pack for Commercial & Industrial Use

FEATURES

Upgrade your lighting with the CCT Adjustable LED Wall Pack, available in 40W and 80W models engineered for superior performance and durability. This wet location rated LED wall light features adjustable color temperature (3000K warm white, 4000K neutral white, 5000K cool white) via an internal DIP switch, with a default 4000K setting for versatile lighting needs. Boasting an ultra-high efficiency of up to 125lm/w and 70% energy savings compared to traditional lighting, it delivers cost-effective illumination with Ra>70 color rendering and PF>0.9 for stable power performance.

Constructed with premium ADC12 material and a brown finish, this LED wall pack is sealed with a silicone ring for full dust and water resistance, ensuring reliable operation in harsh outdoor and wet environments. It features an isolated plate design with 1-10V dimmable functionality, a beam angle of 65°x95°, and a long lifespan of ≥50,000 hours for minimal maintenance. The wall pack supports AC120-277V working voltage, comes with bracket fixed mounting for easy installation, and is backed by a 5-year manufacturer’s warranty for total peace of mind.

Designed for commercial, industrial, and outdoor applications, this AN-TWP-40W-345K/AN-TWP-80W-345K LED wall pack operates in extreme temperatures (-40°F~+113°F) and is built to meet strict safety and quality standards (UL Listed E468007). All installation and CCT adjustment steps are straightforward, with included hardware and a 0.15M cable for the 40W model, making it the ideal lighting solution for parking lots, building exteriors, walkways, and more.

Why Choose Auvolar Wall Packs?

DLC Certified

Qualify for utility rebates of $20-$150+ per fixture

Wholesale Pricing

Contractor and distributor volume discounts available

Energy Efficient

Up to 150+ lumens per watt, save 50-70% on energy

5-Year Warranty

100,000-hour rated life with comprehensive warranty

Frequently Asked Questions

What is Wall Pack Light TWP 40W/80W best used for?
The Wall Pack Light TWP 40W/80W is perfect for building perimeters, entrances, walkways, and security lighting. It provides powerful illumination while maintaining an attractive, low-profile design.
How do I install Wall Pack Light TWP 40W/80W?
Installation should be performed by a licensed electrician. Each Auvolar fixture includes detailed installation instructions and mounting hardware. Key steps: 1) Turn off power at the breaker, 2) Mount the bracket or housing, 3) Connect wiring per the included diagram, 4) Secure the fixture and restore power. Auvolar offers free photometric lighting design to help plan optimal fixture placement and spacing. Contact us at sales@auvolar.com or call (626) 342-8856 for assistance.
What is the warranty on Wall Pack Light TWP 40W/80W?
All Auvolar LED fixtures come with a standard 5-year warranty covering manufacturing defects. Our LED drivers are rated for 100,000+ hours of operation. Contact our support team for warranty claims.
Does this product qualify for utility rebates?
Many Auvolar products are DLC certified, which qualifies them for utility rebates ranging from $20 to $150+ per fixture depending on your local utility program. Check our Rebate Finder tool or contact us for assistance with your specific utility.
Do you offer volume pricing for contractors?
Yes! We offer competitive wholesale pricing for contractors, electricians, and distributors. Contact our sales team at sales@auvolar.com or call for a custom quote on bulk orders.
What is the shipping time?
In-stock items ship within 1-2 business days from our City of Industry, CA warehouse. Standard shipping takes 3-7 business days depending on your location. Expedited shipping options are available at checkout.
