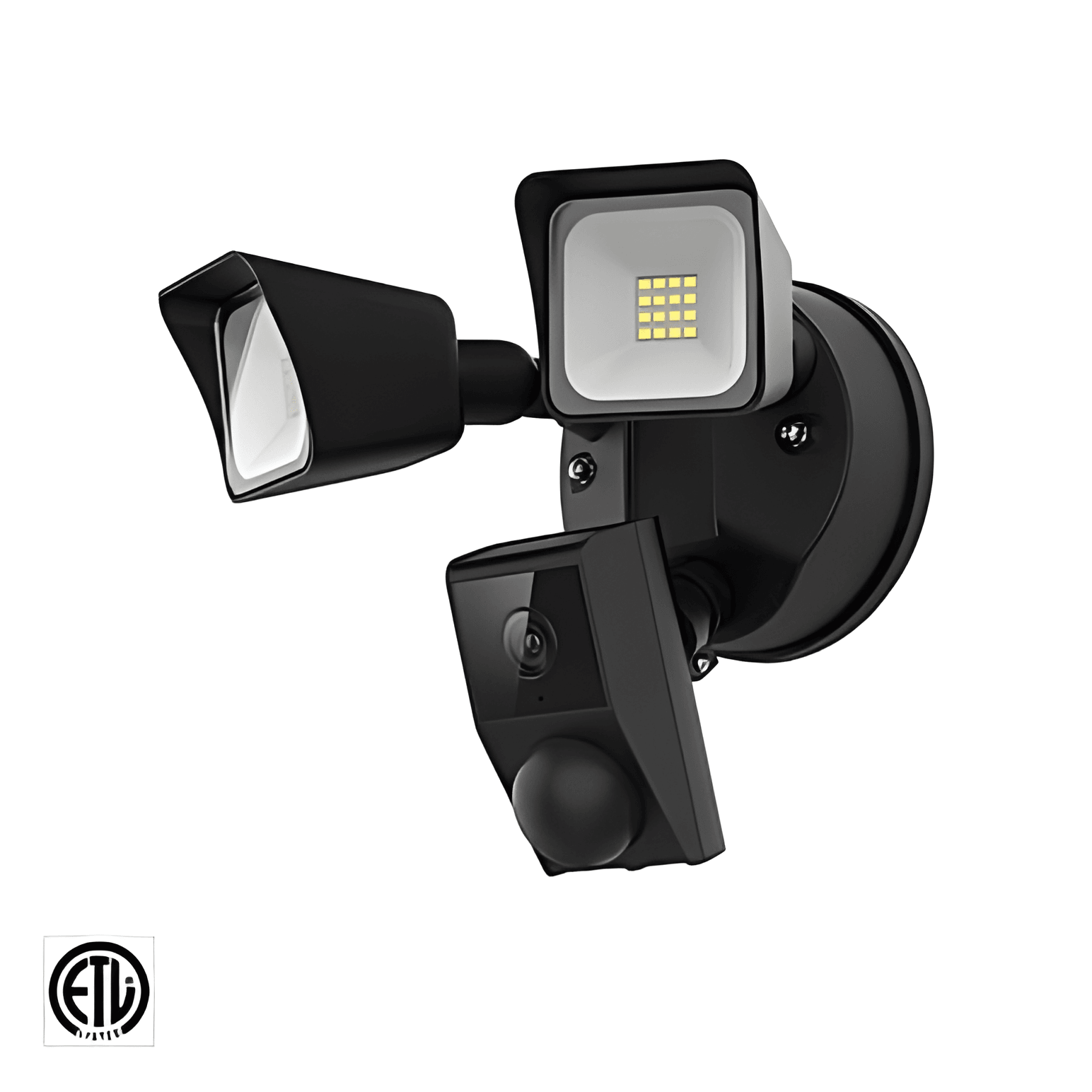

A-SCM24W-NV-5700K security light camera full exterior view, featuring 3MP surveillance camera and 24W 5700K light module for outdoor home security
A-SCM 24W · Wall Packs

LED Security Light A-SCM 24W

Security Light + Camera + Siren + Two-Way Audio — All in One Fixture

SKU: A-SCM24W-NV-BK|
In Stock
🛡️IP65
ETL Listed
3-Year Warranty
$160.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Security Light + Camera + Siren + Two-Way Audio — All in One Fixture

The A-SCM 24W combines 2,000-lumen LED lighting with a 3MP camera, 110dB siren alarm, and two-way audio — replacing four separate devices with one IP65-rated fixture controlled from your phone.

4-in-1: Light + Camera + Siren + Intercom — One Install, One Device

Instead of mounting a separate flood light, security camera, siren, and intercom — each with its own wiring, power supply, and app — the A-SCM integrates all four functions. One electrical connection, one mounting point, one app (CloudEdge). For homeowners and small business owners, this cuts installation time by 75% and eliminates the compatibility headaches of multi-vendor security setups.

3MP Camera with PIR Motion Detection — Records What Triggered the Light

When the PIR sensor detects motion, the camera captures footage simultaneously with the light activation. This solves the #1 frustration with standalone security lights: 'The light came on — but what triggered it?' With the A-SCM, you know exactly what happened, recorded in real-time.

110dB Siren — Louder Than a Chain Saw, From the Fixture Itself

The integrated 110dB siren provides active deterrence beyond just lighting. Triggerable manually from the app or automatically on motion detection. At 110dB, it's loud enough to alert neighbors and send most intruders running without waiting for a monitoring service to respond.

Two-Way Half-Duplex Audio — Talk to Visitors From Anywhere

See who's at the door and communicate through the fixture via the CloudEdge app — whether you're inside, at work, or on vacation. For package deliveries, late-night visitors, and unexpected guests, two-way audio turns a security light into a remote intercom.

2,000 Lumens + IP65 — Real Illumination, Real Weather Protection

24W delivering 2,000 lumens at 5700K provides bright, clear illumination across driveways and entries. IP65 protection handles direct rain and dust exposure. 2.4G WiFi connectivity ensures reliable remote access through standard home networks.

Camera

3MP
PIR triggered

Siren

110dB
Active deterrence

Output

2,000 lm
24W at 5700K

IP Rating

IP65
WiFi connected

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
3MP
Camera
110dB
Siren
2,000 lm
Output
IP65
IP Rating

Electrical

Wattage24W

Optical

Distribution TypeNarrow
CCT5700K
Lumens2000lm

Physical

Camera3MP CMOS, 2.9mm lens, 98°/53°/115° FOV, Night visibility 10m
IP RatingIP65
Operating Temperature-20°C to 50°C
PIR Detection RangeMax 10m, 120°

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
24W5 lbs5 lbs14" × 10" × 10"1

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Standards Compliance

Based on max wattage lumen output per optic. Actual compliance depends on layout design and fixture count.

🏆
FIFA A
≥ 2400 lux avg
120°
FIFA C
≥ 1000 lux avg
120°
🏈
IES RP-6 Class I
≥ 100 fc avg
120°
🎾
IES RP-6 Class III
≥ 30 fc avg
120°

Beam Pattern & CBCP

Peak Center Beam Candlepower and throw ratings by optic.

120°
120° optic
Peak CBCP637 cd
Beam Angle120°
Throw RatingWide Flood (<30ft)
Wide area coverage · Low-mount <30ft · Recreational

⚡ Quick Project Estimator

Select your sport and level for an instant fixture recommendation.

Recommended Optic
60°
Fixture Count
48-72
Pole Layout
4-6 poles
Target Level
500-1000 lux (FIFA C/D)
Mounting Height
50-60ft
Get Full Photometric Layout (Free) →

Custom AGi32-grade simulation with foot-candle grid, uniformity ratios, and pole spacing

Lumen Output (lm)

Tested per IESNA LM-79-19 at 25°C, EVERFINE GO-2000A goniophotometer

Optic24W
120° ()2,000
Efficacy (lm/W)83

Efficacy Comparison

lm/W — higher is better

A-SCM 24W (this product)
83 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Commercial Security & Exterior Wall Lighting Applications

ETL-listed wall pack solutions for building perimeters, loading areas, and pedestrian pathways.

🏢

Commercial Building Perimeters

Wall-mounted at 8–15 ft height, this 24 LED wall pack delivers controlled cutoff illumination across facades and walkways, replacing inefficient 70W–250W metal halide or HPS wall packs while consuming a fraction of the energy.

Standard:

Technical Requirements

  • 1.0–5.0 fc average on building face

Recommended Specifications

248–12 ft mounting height
🚛

Loading Docks & Service Areas

Robust die-cast aluminum housing and IP65 sealing withstand the vibration, exhaust, and moisture exposure of active loading environments. Bright, uniform light improves safety during after-hours deliveries.

Standard:

Technical Requirements

  • 5–10 fc at dock level
  • Weather sealed IP65+
  • Impact-resistant housing

Recommended Specifications

Higher wattage options5000K for task clarityIP65 protection
🚶

Pedestrian Walkways & Entryways

Precise cutoff optics deliver safe, welcoming illumination along building entrances and walkways without light trespass onto adjacent properties — ideal for mixed-use developments and hospitality properties.

Standard:

Technical Requirements

  • 0.5–2.0 fc average horizontal
  • No glare into pedestrian sight lines

Recommended Specifications

3000K–4000K CCT10 ft mounting
🔒

Security & Surveillance Zones

High lumen output in a compact package ensures cameras capture crisp, usable footage at night. Optional photocell or 0–10V dimming compatibility enables dusk-to-dawn or scheduled dimming profiles.

Standard:

Technical Requirements

  • Minimum 1.0 fc at camera field of view
  • Photocell or 0–10V dimming

Recommended Specifications

Motion sensor compatible

No accessories available for this product.

Quick Summary

The Auvolar LED Security Light A-SCM 24W offers 24W power, ETL certification, and a 5700K CCT, ensuring reliable performance for wall-mounted security lighting.

Frequently Asked Questions

What is the wattage of the Auvolar LED Security Light A-SCM?
The Auvolar LED Security Light A-SCM has a wattage of 24W.
What certifications does the Auvolar LED Security Light A-SCM have?
The Auvolar LED Security Light A-SCM is ETL Listed.
What is the color temperature of the Auvolar LED Security Light A-SCM?
The color temperature of the Auvolar LED Security Light A-SCM is 5700K.
What is the lumen output of the Auvolar LED Security Light A-SCM?
The Auvolar LED Security Light A-SCM has a lumen output of 2000lm.
What is the IP rating of the Auvolar LED Security Light A-SCM?
The IP rating of the Auvolar LED Security Light A-SCM is IP65.
What is the operating temperature range for the Auvolar LED Security Light A-SCM?
The operating temperature range for the Auvolar LED Security Light A-SCM is -20°C to 50°C.
