AN-FWP100/150NV-345K LED Wall Pack Light 100W/150W UL Listed for Wet Locations 4000K-5700K

Energy Saving Up to 75% Replace 400-1000W MH/HID, 0-10V Dimming, -40°C to +50°C Operation

AN-FWP100NV-345K/AN-FWP150NV-345K

High Performance Commercial LED Wall Pack for Doorway & Pathway Illumination

FEATURES

AN-FWP100/150NV-345K LED Wall Pack is a high-performance, high-efficacy luminaire engineered with the latest LED technology, ideal for building-mounted doorway and pathway illumination in all commercial facilities. This durable LED wall pack replaces 400-1000W MH or HID fixtures with up to 75% energy savings, delivering long life and easy installation for a smart lighting upgrade.

Available in 100W (384 LEDs, 79mA) and 150W (512 LEDs, 88mA) configurations, this LED wall pack offers versatile color temperatures from 3000K to 5700K (70 min. CRI) with high lumen output—12200-12600 lumens for 100W and 18300-18750 lumens for 150W—and high LPW up to 126. It features a 0-10V dimming function, a high power factor (>0.98 at full load), and low total harmonic distortion (<12% at full load), with universal input voltage 120/240/277Vac 50/60Hz and integral 2.5kV surge suppression (10kV optional).

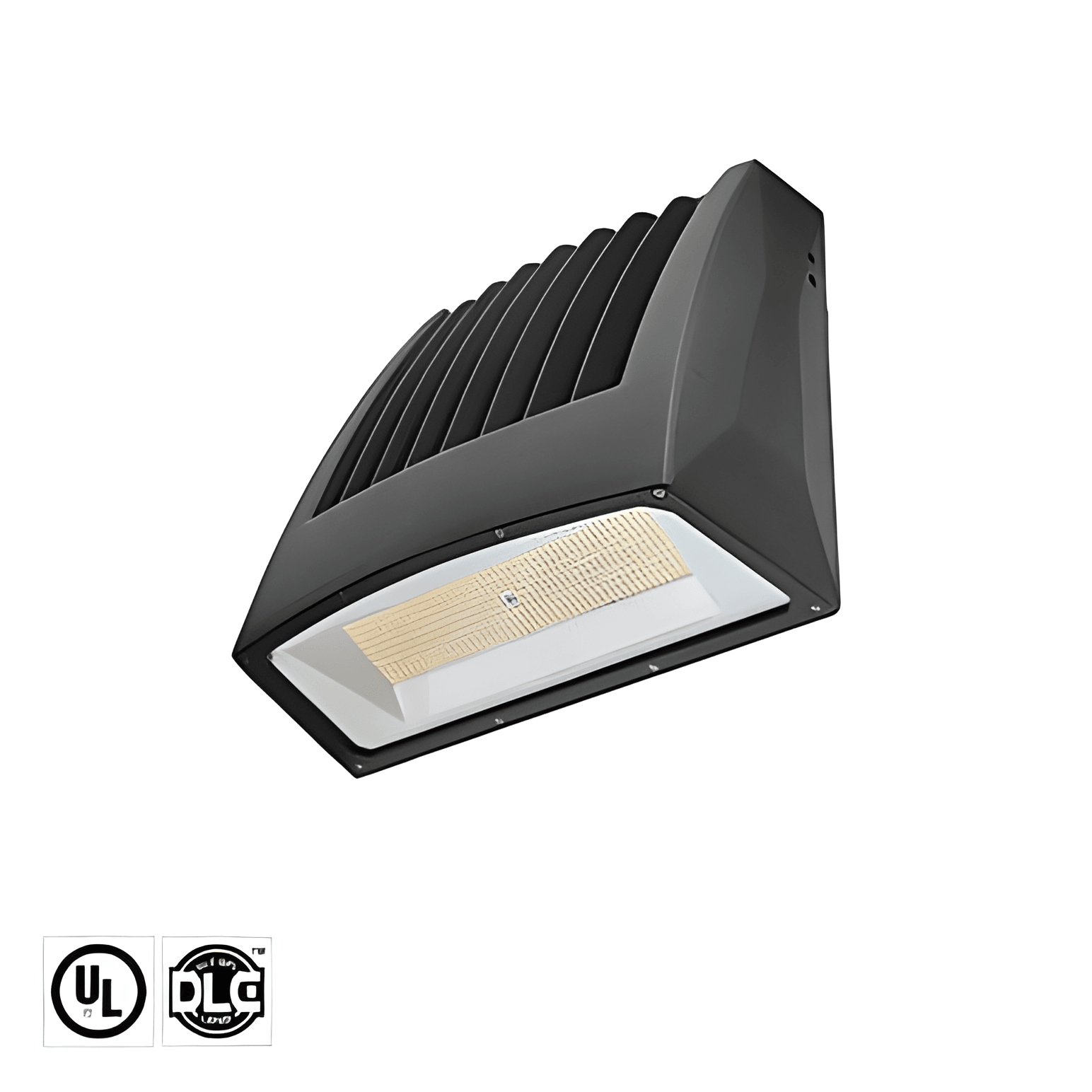

UL Listed and suitable for wet locations, this LED wall pack meets ANSI C136.31-2001 3G vibration standards, FCC Part 15 emissions requirements, and ASTM B117 3000-hour salt fog resistance. RoHS compliant, it operates in extreme ambient temperatures from -40°C to +50°C, with precision-molded proprietary acrylic lenses for application-specific photometric distributions. The exterior boasts a Super Durable thermoset powder coat finish (3 mils minimum thickness) for superior corrosion and weather resistance, available in textured and non-textured options. With exceptional lumen maintenance—86% (100W) and 87% (150W) at 100,000 operating hours (per IESNA LM-80-08/TM-21-11)—this luminaire ensures long-term performance. Dimensions: 364mm (W) x 201mm (D) x 330mm (H), weight 6kg (12lb).
