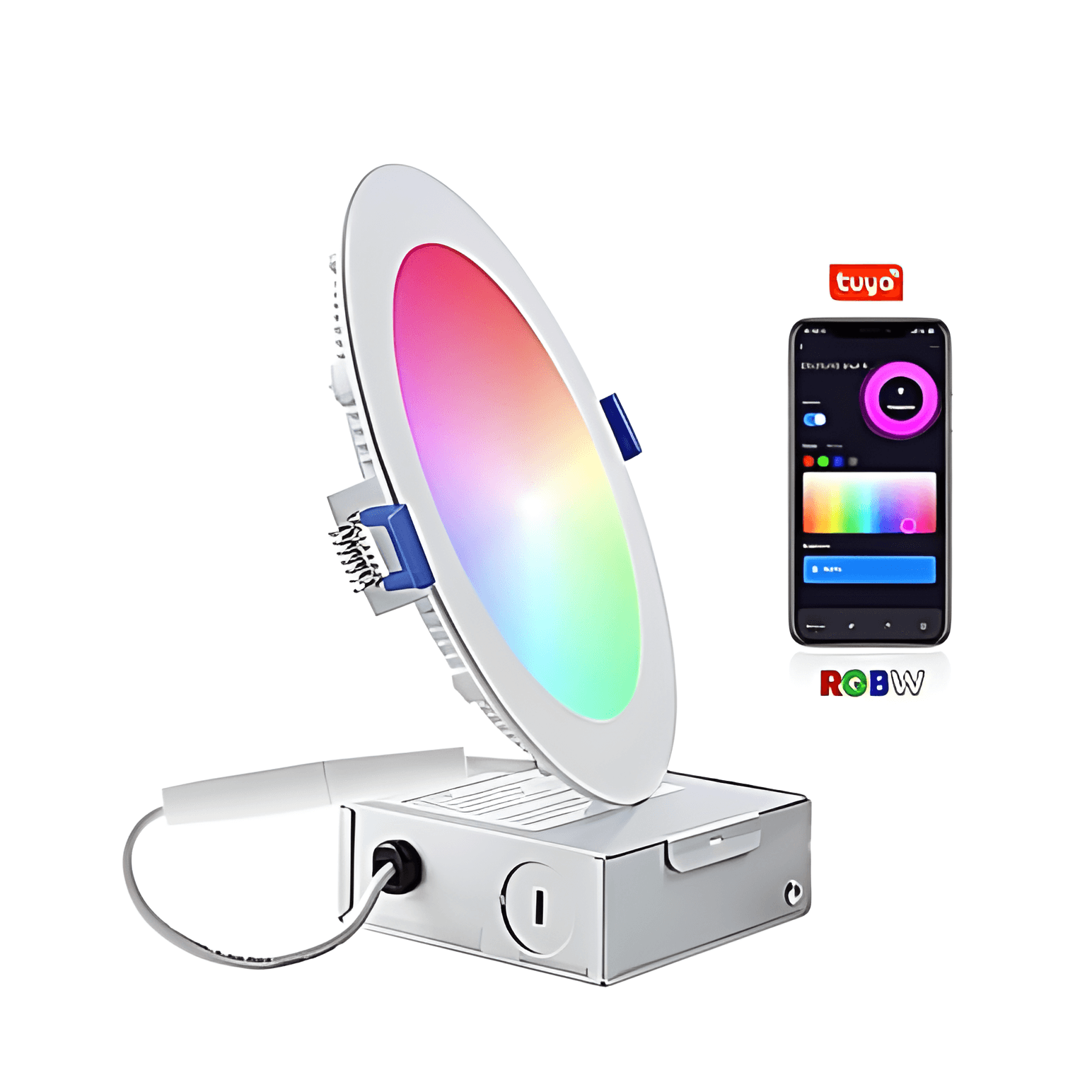

A-SDL6IN-12W-RGBW 6 inch smart RGBW LED panel light with Tuya Control System and 16 million color options
A-SDL6IN-12W · Downlights

RGBW LED Downlight A-SDL6IN-12W

Turn Any Room into a Scene — From White Task Light to Full RGB Ambiance.

SKU: A-SDL6IN12W-LV-RGBW-6IN|
In Stock
ETL Listed
5-Year Warranty
$30.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 20. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Turn Any Room into a Scene — From White Task Light to Full RGB Ambiance.

A 6-inch smart RGBW downlight with Tuya app control, Alexa/Google voice commands, and 16 million color options. Switch from 2700K task lighting to branded RGB accents from your phone — no rewiring, no extra controller boxes, no electrician callback.

Voice Control Means No Wiring Changes When Tenants Want Smart Lighting

Works with Alexa and Google Assistant out of the box. Tenants get smart lighting control without the landlord running new wiring — just swap the old fixture for this one and connect to WiFi.

16 Million RGB Colors

Full RGBW spectrum for restaurant ambiance, retail branding, wellness spaces, and residential accent lighting. Set warm white for dinner service, brand colors for events, and cool white for cleaning — all from one fixture.

Music Sync for Entertainment and Hospitality Venues

Built-in music sync capability through the Tuya app creates dynamic lighting for restaurants, bars, fitness studios, and event spaces. No external DMX controller, no separate music-reactive hardware.

Smooth 1%–100% App Dimming

Dim from full brightness to near-dark through the app — no physical dimmer required. Perfect for bedrooms, theaters, and hospitality rooms where ambiance changes throughout the day.

Standard 6-Inch Recessed Install — Nothing Custom

Fits any standard 6-inch ceiling opening with spring clips. The smart features are inside the fixture, not in a separate box. Electricians install it like any other downlight.

Colors

16M+
Full RGB spectrum plus warm-to-cool white range

Output

900 lm
Bright enough for task lighting, dimmable for ambiance

Voice Control

Alexa + Google
Smart home ready with no hub or extra hardware

Warranty

5 Years
Full manufacturer coverage

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
16M+
Colors
900 lm
Output
Alexa + Google
Voice Control
5 Years
Warranty

Electrical

Voltage120-277V
WiFi2.4GHz WiFi (TUYA Smart)

Optical

Distribution TypeNarrow
Beam Angle110 beam angle
CCTRGBW
CRI80
Efficacy75lm/W

Physical

MountingJuntion box
Voice ControlAlexa and Google Assistant compatible

Warranty

Warranty3-Year Warranty

Custom

Input Power12W

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
12W1.3 lbs25.5 lbs24.5" × 15" × 8"20

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Standards Compliance

Based on max wattage lumen output per optic. Actual compliance depends on layout design and fixture count.

🏆
FIFA A
≥ 2400 lux avg
110°
FIFA C
≥ 1000 lux avg
110°
🏈
IES RP-6 Class I
≥ 100 fc avg
110°
🎾
IES RP-6 Class III
≥ 30 fc avg
110°

Beam Pattern & CBCP

Peak Center Beam Candlepower and throw ratings by optic.

110°
110° optic
Peak CBCP336 cd
Beam Angle110°
Throw RatingWide Flood (<30ft)
Wide area coverage · Low-mount <30ft · Recreational

⚡ Quick Project Estimator

Select your sport and level for an instant fixture recommendation.

Recommended Optic
60°
Fixture Count
48-72
Pole Layout
4-6 poles
Target Level
500-1000 lux (FIFA C/D)
Mounting Height
50-60ft
Get Full Photometric Layout (Free) →

Custom AGi32-grade simulation with foot-candle grid, uniformity ratios, and pole spacing

Lumen Output (lm)

Tested per IESNA LM-79-19 at 25°C, EVERFINE GO-2000A goniophotometer

Optic12W
110° ()900
Efficacy (lm/W)75

Efficacy Comparison

lm/W — higher is better

Downlight A-SDL6IN-12W (this product)
75 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Commercial & Municipal Lighting Applications

Professional LED lighting solutions with IES standards compliance for nationwide installations. Request a free LightSpec AI photometric layout or request a project quote.

No accessories available for this product.

Quick Summary

The Auvolar RGBW LED Downlight A-SDL6IN-12W offers 75 lm/W efficacy and is ETL Listed, providing reliable performance in a 12W range.

Frequently Asked Questions

What is the wattage of the Auvolar RGBW LED Downlight A-SDL6IN-12W?
The Auvolar RGBW LED Downlight A-SDL6IN-12W has a wattage of 12W.
Is the Auvolar RGBW LED Downlight ETL listed?
Yes, the Auvolar RGBW LED Downlight A-SDL6IN-12W is ETL listed.
What is the efficacy of the Auvolar RGBW LED Downlight?
The efficacy of the Auvolar RGBW LED Downlight A-SDL6IN-12W is 75 lm/W.
Does the Auvolar RGBW LED Downlight support voice control?
Yes, the Auvolar RGBW LED Downlight A-SDL6IN-12W is compatible with Alexa and Google Assistant for voice control.
What is the warranty period for the Auvolar RGBW LED Downlight?
The Auvolar RGBW LED Downlight A-SDL6IN-12W comes with a 3-Year Warranty.
