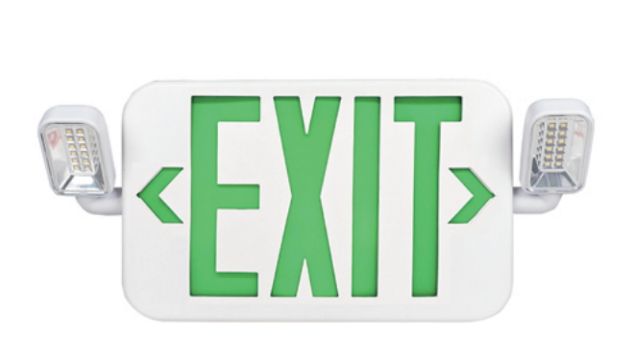

Led Exit Sign Emergency Light EX04E Series
EX04E · Exit Signs

Led Exit Sign Emergency Light EX04E Series

Outdoor Exit Sign — Because Covered Walkways Need Egress Lighting Too.

SKU: A-EX04E-NV-GN|
In Stock
UL Listed
5-Year Warranty
$26.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 10. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Outdoor Exit Sign — Because Covered Walkways Need Egress Lighting Too.

The EX04E is rated for outdoor covered locations — not just indoor corridors. When the egress path goes through a parking structure, covered walkway, or building exterior, standard indoor exit signs aren't code-compliant. This one is.

Outdoor-Ready Rating

Rated for outdoor covered locations, parking structures, and covered walkways where standard indoor exit signs can't be used.

Combo Exit + Emergency

Integrated exit sign with emergency light heads. One fixture, one installation, two code requirements satisfied.

1.2W Max / 90-Min Backup

Ultra-low power consumption in normal mode. 3.6V Ni-Cd battery provides 90-minute emergency runtime.

Input

120/277VAC
Match most applications

Power

1.2W max
Normal operation

Backup

90 min
Ni-Cd battery

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
120/277VAC
Input
1.2W max
Power
90 min
Backup

Electrical

Input Voltage120/277V
Power Consumption1.2W max

Optical

Distribution TypeType V

Physical

Battery3.6V Nickel Cadmium
Charging Time24hours
Discharge Time90minutes
Housing MaterialInjection-molded thermoplastic (UL-94V-0)
Operating Temperature0°C to 40°C

Certification

CertificationsUL
UL ListedYes

Warranty

Lifespan24 hours

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
All Models2.2 lbs22 lbs25" × 13" × 8"10

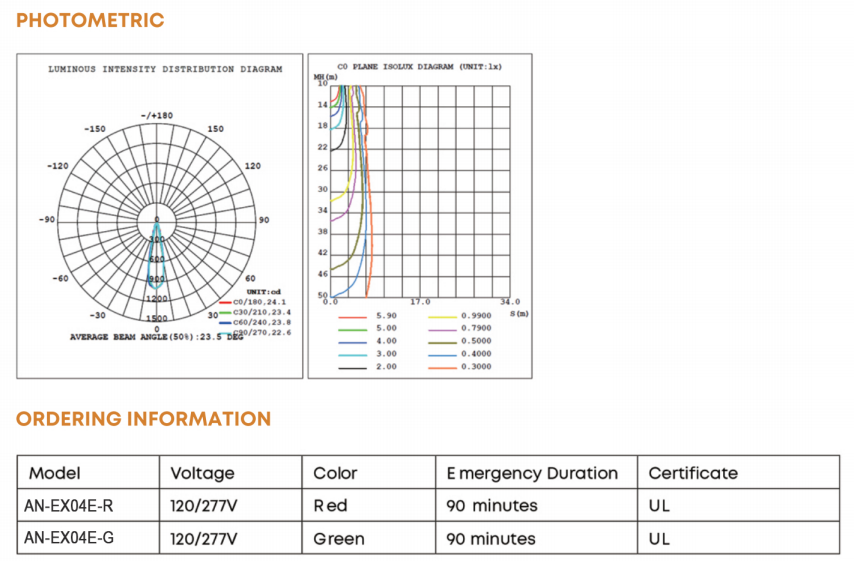

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Photometric data for this product series. Contact sales@auvolar.com for detailed IES files and photometric reports.

Efficacy Comparison

lm/W — higher is better

EX04E Series (this product)
150 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Commercial & Municipal Lighting Applications

Professional LED lighting solutions with IES standards compliance for nationwide installations. Request a free LightSpec AI photometric layout or request a project quote.

No accessories available for this product.

Quick Summary

The Auvolar Led Exit Sign Emergency Light EX04E Series is UL Listed with a power consumption of 1.2W max and operates at 120/277VAC.

Frequently Asked Questions

What is the power consumption of the Auvolar EX04E Exit Sign?
The Auvolar EX04E Exit Sign has a maximum power consumption of 1.2W.
Is the Auvolar EX04E Exit Sign UL Listed?
Yes, the Auvolar EX04E Exit Sign is UL Listed.
What is the operating temperature range for the EX04E Exit Sign?
The operating temperature range for the EX04E Exit Sign is 0°C to 40°C.
What is the battery type used in the Auvolar EX04E Exit Sign?
The Auvolar EX04E Exit Sign uses a 3.6V Nickel Cadmium battery.
How long is the warranty for the Auvolar EX04E Exit Sign?
The Auvolar EX04E Exit Sign comes with a 5-Year Limited Warranty.
