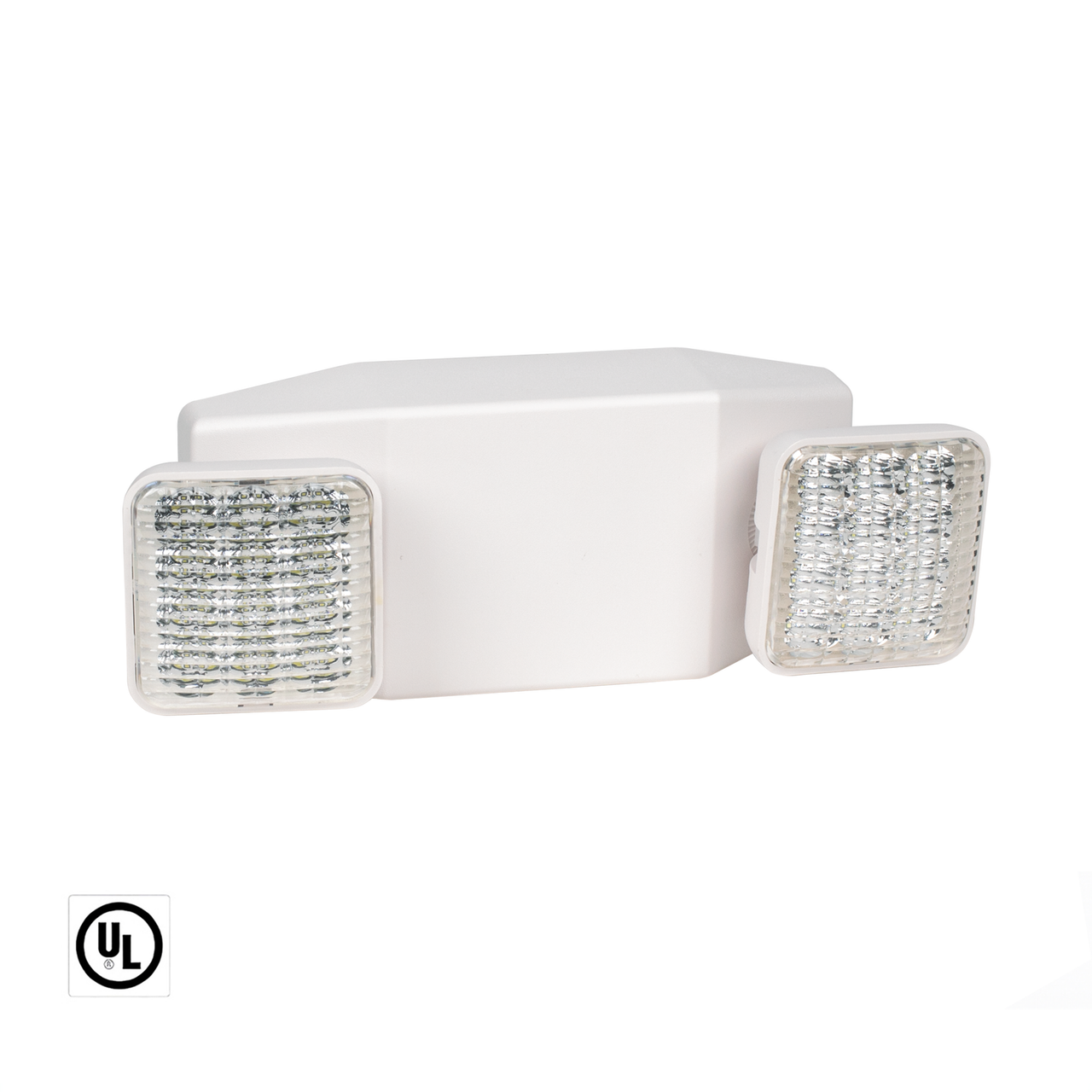

Front perspective of UL-certified A-EM03-W LED emergency light with fire-resistant ABS housing and 24 SMD LED array for emergency illumination
White · Exit Signs

LED Emergency Exit Sign With Battery Backup EM03 White Series

Exit Sign + Emergency Heads = One Install Point, Two Code Requirements Met.

SKU: A-EM03W-NV-WH|
In Stock
UL Listed
5-Year Warranty
$32.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 12. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Exit Sign + Emergency Heads = One Install Point, Two Code Requirements Met.

The EM03 combines illuminated exit signage with two adjustable emergency light heads. One fixture, one circuit connection, two code boxes checked. 120/277V, 90-minute Ni-Cd battery, 4.8W Led emergency head output.

Two Emergency Heads Integrated

Adjustable LED heads provide directional egress path illumination alongside the exit sign. One device satisfies both exit signage and emergency path lighting requirements.

24 SMD LEDs at 0.9W Normal Draw

Bright exit lettering from 24 SMD LEDs consuming less than 1 watt normally. 4.8W LED emergency output when backup is activated.

UL-94-V0 Flame Resistant

Injection-molded ABS housing meets the highest UL flame rating. 3.6V Nickel Cadmium Battery with 90-minute runtime and 24-hour recharge.

Input

120/277V
Dual voltage

Emergency

4.8W
Dual head output

Backup

90 min
Ni-Cd battery

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
120/277V
Input
4.8W
Emergency
90 min
Backup

Electrical

Input Voltage120/277V
Output Power4.8W
Power Consumption0.9W max

Optical

Distribution TypeNarrow

Physical

Battery3.6V Nickel Cadmium
Charging Time24hours
Discharge Time90minutes
Housing MaterialInjection-molded thermoplastic ABS (UL-94V-0)
MountingWall
Operating Temperature0°C to 40°C

Certification

CertificationsUL
UL ListedYes

Warranty

Lifespan24 hours

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
All Models1.5 lbs18 lbs26.2" × 10.4" × 12.4"12

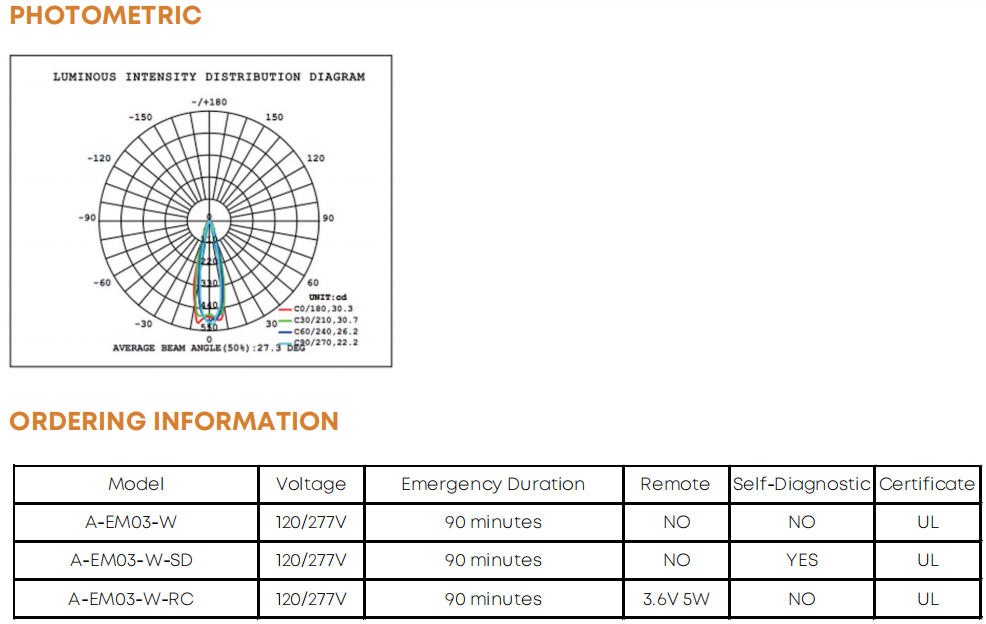

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Photometric data for this product series. Contact sales@auvolar.com for detailed IES files and photometric reports.

Efficacy Comparison

lm/W — higher is better

White Series (this product)
150 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Commercial & Municipal Lighting Applications

Professional LED lighting solutions with IES standards compliance for nationwide installations. Request a free LightSpec AI photometric layout or request a project quote.

No accessories available for this product.

Quick Summary

The LED Emergency Exit Sign With Battery Backup EM03 White Series by Auvolar is UL Listed with a power consumption of 0.9W max.

Frequently Asked Questions

What is the emergency battery backup runtime of the Auvolar EM03 White Series exit sign?
The Auvolar EM03 White Series exit sign has a emergency battery backup runtime of 24 hours.
Is the Auvolar LED Emergency Exit Sign UL Listed?
Yes, the Auvolar LED Emergency Exit Sign is UL Listed.
What is the power consumption of the EM03 White Series exit sign?
The power consumption of the EM03 White Series exit sign is 0.9W max.
What type of battery does the Auvolar EM03 use?
The Auvolar EM03 uses a 3.6V Nickel Cadmium battery.
What is the operating temperature range for the EM03 exit sign?
The operating temperature range for the EM03 exit sign is 0°C to 40°C.
