Led Exit Sign Emergency Light 01 Series
Series · Exit Signs

Led Exit Sign Emergency Light 01 Series

Red or Green. Code-Compliant. Around $30 Installed.

SKU: A-EX01-NV-RD|
In Stock
UL Listed
5-Year Warranty
$38.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 4. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Red or Green. Code-Compliant. Around $30 Installed.

The most straightforward exit sign in the lineup. 120/277VAC, UL-94-V0 flame-rated, battery backup, and available in red or green. When the job needs 50 exit signs and the budget is tight, this is the one that passes inspection without breaking the bank.

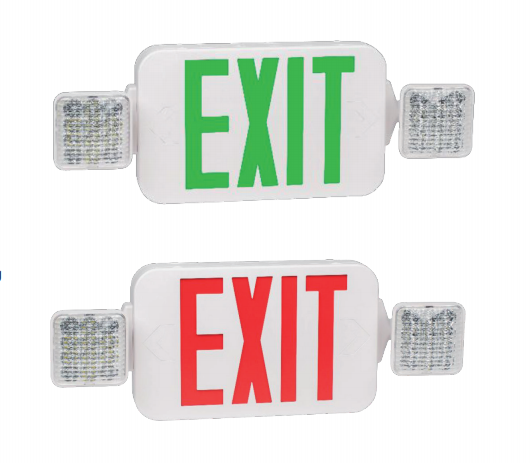

Red or Green — Match Local Code

Some jurisdictions require red, others green. Both options available as separate SKUs for clear procurement.

Double/Single sided face configuration

Double-sided configuration is designed for broader coverage, helping improve efficiency and reduce installation costs by lighting both sides simultaneously.

UL-94-V0 Flame Rated

Highest UL flame resistance rating for thermoplastic housing. Fire safety compliance for emergency egress signage.

Input

120/277VAC
Match all application

Power

2×1.2W
Ultra-low consumption

Colors

Red / Green
Both available

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
5-Year
Warranty

Electrical

Input Voltage120/277V

Optical

Distribution TypeNarrow

Certification

CertificationsUL

Battery

Battery Backup Duration90min
Battery TypeLead-acid

Construction

Housing MaterialPolycarbonate

Environmental

Operating Temperature Range0 to 40°C

Installation

Mounting TypeWall

Lighting

Light SourceLED

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
All Models3.5 lbs14 lbs18.5" × 11.5" × 18.5"4

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Photometric data for this product series. Contact sales@auvolar.com for detailed IES files and photometric reports.

Efficacy Comparison

lm/W — higher is better

01 Series (this product)
150 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Commercial & Municipal Lighting Applications

Professional LED lighting solutions with IES standards compliance for nationwide installations. Request a free LightSpec AI photometric layout or request a project quote.

No accessories available for this product.

Quick Summary

The Led Exit Sign Emergency Light 01 Series by Auvolar is UL Listed and operates at 120/277VAC, backed by a 5-Year Limited Warranty.

Frequently Asked Questions

What certifications does the Led Exit Sign Emergency Light 01 Series have?
The Led Exit Sign Emergency Light 01 Series is UL Listed.
What is the warranty period for the EX01 series?
The EX01 series comes with a 5-Year Limited Warranty.
What voltages are supported by the Led Exit Sign Emergency Light 01 Series?
The Led Exit Sign Emergency Light 01 Series supports 120/277VAC.
Who manufactures the EX01 series exit signs?
The EX01 series exit signs are manufactured by Auvolar.
