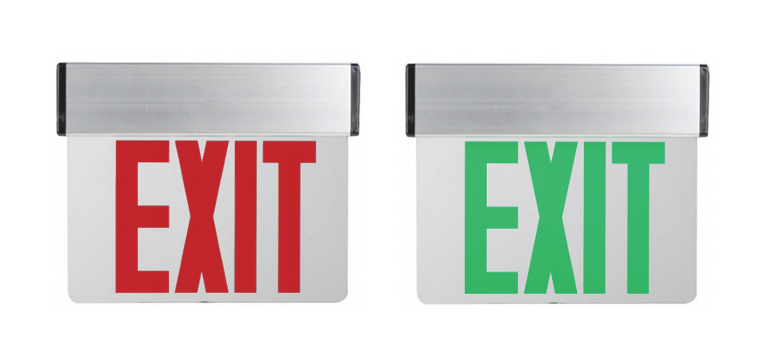

Led Exit Sign Emergency Light 03 Series - Image 1
Save 29%

Led Exit Sign Emergency Light 03 Series

SKU: AN-EX03 -G (Double side)-12|
In Stock
$54.00$75.60-29%

Led Exit Sign Emergency Light 03 Series ,AN-EX03 -G (Double side) Illumination: Legend: Long-life, high-intensity LEDs Housing: Aluminum housing and high grade acrylic diuser UL-94-V0 flame-retardant...

SKU: AN-EX03 -G (Double side)-12

1
Request Volume Quote

Downloads & Resources

Spec SheetIES FileInstall GuideWarranty Info
Free Shipping on $500+
5-Year Warranty
DLC Certified
UL/ETL Listed

Need help choosing?

sales@auvolar.com (626) 342-8856

Compatible Accessories

Build your complete lighting system

Accessories Coming Soon

Mounting brackets, sensors, poles, and more will be available shortly.

Contact Us for Accessories

Product Details

Led Exit Sign Emergency Light 03 Series ,AN-EX03 -G (Double side)

Illumination: Legend: Long-life, high-intensity LEDs

Housing: Aluminum housing and high grade acrylic diuser

UL-94-V0 flame-retardant, fire-resistant

Legend: Fully illuminated 6" characters

Input Voltage: 120-347VAC 60Hz

Input Rating: 1.2W 200mAh

Battery: Maintenance-free 4.8V NiCad battery

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Charging time: 24 hours

Discharge time: 120 minutes

Mounting: Wall, end and ceiling

Finish: Silver

Dimension: 305*245.9*40mm

Certifications: UL 924 Listed for Damp Locations

Meets NFPA 101 Life Safety Code, NEC, OSHA

California Energy Commission (CEC) Title 20 Compliant

Why Choose Auvolar Exit Signs?

DLC Certified

Qualify for utility rebates of $20-$150+ per fixture

Wholesale Pricing

Contractor and distributor volume discounts available

Energy Efficient

Up to 150+ lumens per watt, save 50-70% on energy

5-Year Warranty

100,000-hour rated life with comprehensive warranty

Related Products

Led Exit Sign Emergency Light 01 Series

Led Exit Sign Emergency Light 01 Series

$38.00

Led Exit Sign Emergency Light 03-RG Series

Led Exit Sign Emergency Light 03-RG Series

$56.00

Bi-color LED Exit Light Led Exit Sign Emergency Light EX-RG Series

Bi-color LED Exit Light Led Exit Sign Emergency Light EX-RG Series

$24.00

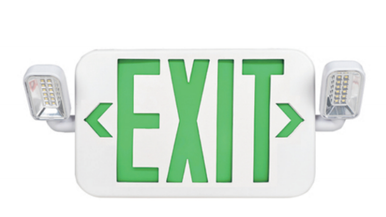

Led Exit Sign Emergency Light EX04E Series

Led Exit Sign Emergency Light EX04E Series

$26.00

Frequently Asked Questions

What is Led Exit Sign Emergency Light 03 Series best used for?
The Led Exit Sign Emergency Light 03 Series is a versatile LED lighting solution suitable for a wide range of commercial and industrial applications. Contact our team for a free lighting design to find the best configuration for your space.
How do I install Led Exit Sign Emergency Light 03 Series?
Installation should be performed by a licensed electrician. Each Auvolar fixture includes detailed installation instructions and mounting hardware. Key steps: 1) Turn off power at the breaker, 2) Mount the bracket or housing, 3) Connect wiring per the included diagram, 4) Secure the fixture and restore power. Auvolar offers free photometric lighting design to help plan optimal fixture placement and spacing. Contact us at sales@auvolar.com or call (626) 342-8856 for assistance.
What is the warranty on Led Exit Sign Emergency Light 03 Series?
All Auvolar LED fixtures come with a standard 5-year warranty covering manufacturing defects. Our LED drivers are rated for 100,000+ hours of operation. Contact our support team for warranty claims.
Does this product qualify for utility rebates?
Many Auvolar products are DLC certified, which qualifies them for utility rebates ranging from $20 to $150+ per fixture depending on your local utility program. Check our Rebate Finder tool or contact us for assistance with your specific utility.
Do you offer volume pricing for contractors?
Yes! We offer competitive wholesale pricing for contractors, electricians, and distributors. Contact our sales team at sales@auvolar.com or call for a custom quote on bulk orders.
What is the shipping time?
In-stock items ship within 1-2 business days from our City of Industry, CA warehouse. Standard shipping takes 3-7 business days depending on your location. Expedited shipping options are available at checkout.
