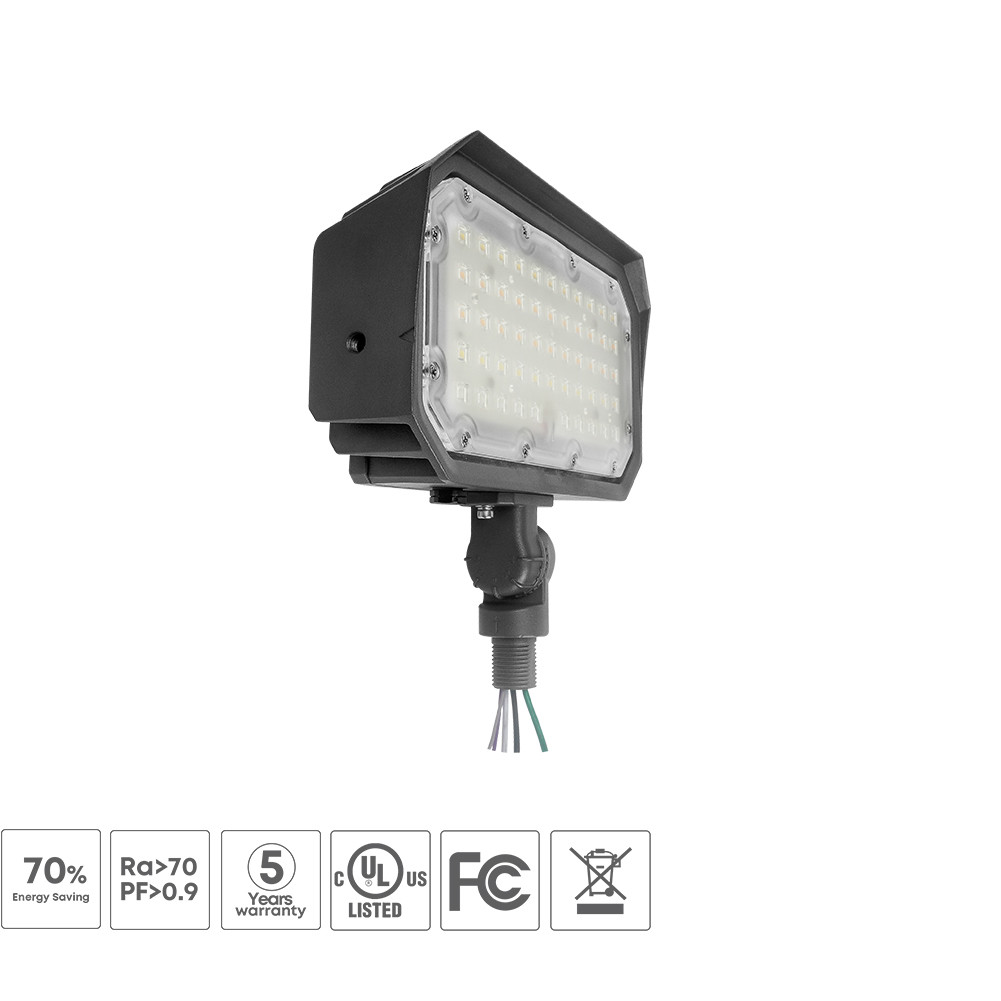

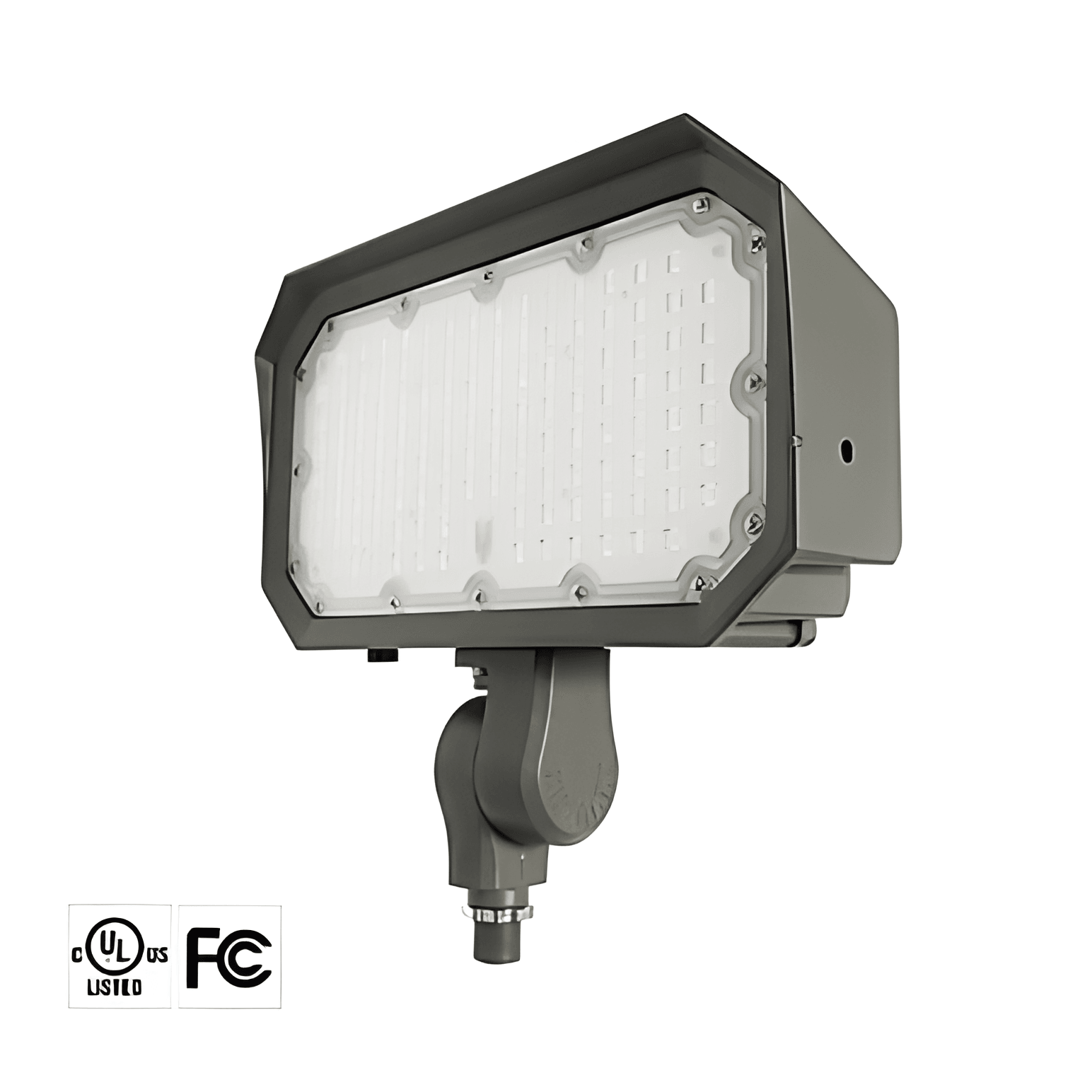

ANTEC 50W LED flood light with unique rectangular octagonal design and black bronze housing finish for indoor outdoor lighting
AN-TSFL · Flood Lights

Flood Light AN-TSFL

The Everyday Workhorse Flood Light — UL Listed, 120 lm/W, Under Budget

SKU: A-TSFL70W-NV-5K-120D-YK|
In Stock
UL Listed
🛡️IP65
5-Year Warranty
From$36.00

Price varies by wattage, accessary option · Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

The Everyday Workhorse Flood Light — UL Listed, 120 lm/W, Under Budget

The AN-TSFL series delivers reliable 30W–70W flood lighting with LUMILEDS 3030 chips and IP65 protection at a price point that makes spec'ing quality LEDs easy for budget-conscious projects.

LUMILEDS 3030 Chips — The Same LEDs Used in Tier-1 Fixtures

While competitors cut costs with generic chips, the AN-TSFL uses LUMILEDS 3030 LEDs for consistent color, reliable output, and low degradation over time. At 120 lm/W, you get professional-grade performance without the premium-tier price tag.

30W to 70W Covers Signs, Entries, Loading Docks, and Alleys

The 30W handles small signage and side entries. The 50W covers loading dock areas. The 70W lights alleys and small parking areas. One product family covers the most common small-to-mid flood applications on any commercial property.

Optional Photocell for Set-and-Forget Operation

Add a photocell at order and the fixture runs dusk-to-dawn automatically — no timer, no building automation connection needed. For property managers with dozens of flood lights across multiple buildings, this eliminates seasonal clock adjustments entirely.

IP65 and 5-Year Warranty — Spec It and Stop Thinking About It

Full IP65 dust and water ingress protection with a 5-year warranty. The die-cast housing handles -40°F to 113°F. For facility managers tired of replacing cheap floods every 18 months, this is the install-once-and-move-on solution.

LED Chip

LUMILEDS
3030 series

Efficacy

120 lm/W
CRI >70

IP Rating

IP65
Wet location

Warranty

5 Years
UL listed

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
LUMILEDS
LED Chip
120 lm/W
Efficacy
IP65
IP Rating
5 Years
Warranty

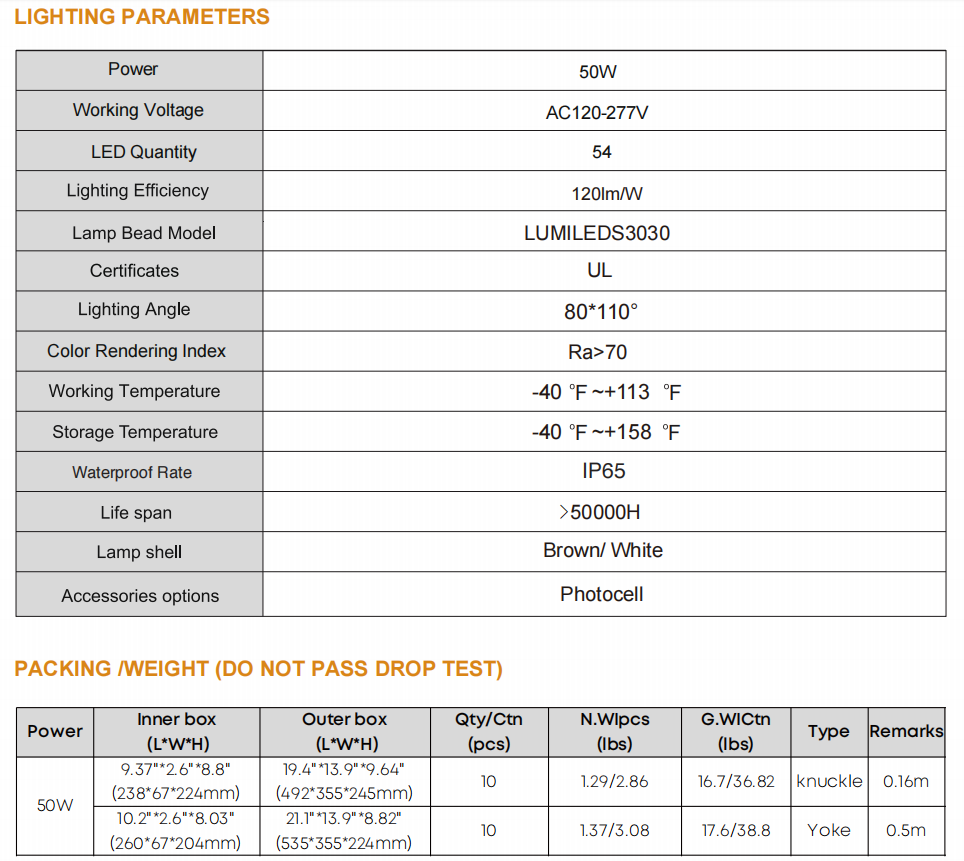

Optical

Distribution TypeNarrow
Beam Angle120°
CRI70
Efficacy120lm/W
LED ChipLUMILEDS3030
Lumens6000lm

Physical

Housing MaterialADC 12 aluminum alloy
IP RatingIP65

Certification

CertificationsUL

Warranty

Lifespan>50000H
Warranty5-Year Warranty

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
30W1.7 lbs31.5 lbs16.9" × 12.6" × 14.2"20
50W4.1 lbs40.7 lbs19.4" × 14" × 9.7"10
70W7.8 lbs38.8 lbs26" × 16.2" × 12.2"5

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Standards Compliance

Based on max wattage lumen output per optic. Actual compliance depends on layout design and fixture count.

🏆
FIFA A
≥ 2400 lux avg
120°
FIFA C
≥ 1000 lux avg
120°
🏈
IES RP-6 Class I
≥ 100 fc avg
120°
🎾
IES RP-6 Class III
≥ 30 fc avg
120°

Beam Pattern & CBCP

Peak Center Beam Candlepower and throw ratings by optic.

120°
120° optic
Peak CBCP2,674 cd
Beam Angle120°
Throw RatingWide Flood (<30ft)
Wide area coverage · Low-mount <30ft · Recreational

⚡ Quick Project Estimator

Select your sport and level for an instant fixture recommendation.

Recommended Optic
60°
Fixture Count
48-72
Pole Layout
4-6 poles
Target Level
500-1000 lux (FIFA C/D)
Mounting Height
50-60ft
Get Full Photometric Layout (Free) →

Custom AGi32-grade simulation with foot-candle grid, uniformity ratios, and pole spacing

Lumen Output (lm)

Tested per IESNA LM-79-19 at 25°C, EVERFINE GO-2000A goniophotometer

Optic30W50W70W
120° ()3,6006,0008,400
Efficacy (lm/W)120120120

Efficacy Comparison

lm/W — higher is better

Light AN-TSFL (this product)
120 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Commercial & Municipal Lighting Applications

Professional LED lighting solutions with IES standards compliance for nationwide installations. Request a free LightSpec AI photometric layout or request a project quote.

No accessories available for this product.

Quick Summary

The Auvolar Flood Light AN-TSFL offers 30-70W power with 120lm/W efficacy, UL listed and IP65 rated for reliable outdoor use.

Frequently Asked Questions

What is the wattage range for the Auvolar Flood Light AN-TSFL?
The Auvolar Flood Light AN-TSFL has a wattage range of 30-70W.
What is the efficacy of the TSFL series flood lights?
The TSFL series flood lights have an efficacy of 120 lm/W.
How long is the lifespan of the Flood Light AN-TSFL?
The Flood Light AN-TSFL has a lifespan of over 50,000 hours.
What certifications does the Auvolar Flood Light AN-TSFL have?
The Auvolar Flood Light AN-TSFL is UL Listed (#E468007), FCC certified, and has an IP65 rating.
What is the color temperature option for the TSFL series?
The TSFL series offers a color temperature option of 5000K.
