Flood light_A-FL60-80-100W -NV-345K-567DS_Turnion
100W Flood Lights · AN-FLY Series

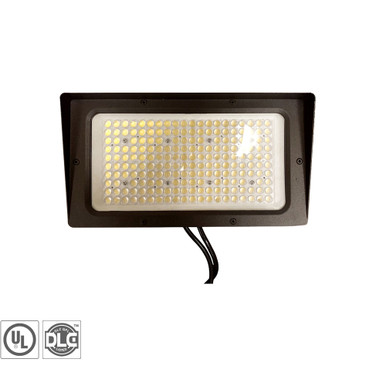

Auvolar Flood Light AN-FLY

Illuminate with precision using our 100W Flood Light AN-FLY, designed for optimal performance.

SKU: AN-FLY-100W-5KP-BZ|
Made to Order
✓5-Year Warranty
$44.99

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

Contact for Availability — Lead time varies; contact us for a delivery estimate
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Replace 100–250W Metal Halide Floods — 80% Less Energy, Zero Warm-Up

The AN-FLY architectural flood light combines clean industrial design with 100,000-hour LED life, replacing aging HID floods on building facades and landscapes while cutting energy consumption by 80%.

80% Energy Savings Over Metal Halide — The Math Is Simple

A 100W AN-FLY replaces a 250W metal halide. Running 12 hours a day at $0.12/kWh, that's $65 saved per fixture per year. For a property with 20 facade floods, the payback period is typically under one year — before any utility rebates.

Architectural Profile That Belongs on the Building

Unlike utilitarian box-style floods, the AN-FLY features a streamlined profile designed for visible architectural mounting. When the flood light is part of the building's visual identity — on retail facades, hotel entries, or campus buildings — appearance matters as much as performance.

Instant On, No Restrike — Light When You Need It

Metal halide floods take 5–15 minutes to restrike after a power interruption. The AN-FLY turns on instantly. For security applications and motion-triggered scenarios, this eliminates the most dangerous vulnerability of legacy HID lighting — the dark gap after a power blip.

100,000-Hour Rated Life — Install It and Forget It

At 12 hours per night, 100,000 hours means 22+ years before the fixture reaches L70. For property managers tired of scheduling bucket truck visits to replace failed HID lamps every 2–3 years, this represents a fundamental shift in maintenance planning.

Weathertight Driver and Thermal Management

Integrated weatherproof LED driver eliminates the external ballast that's often the first point of failure in outdoor HID systems. Advanced thermal management keeps junction temperatures low even in hot climates, protecting the LEDs that make the 100,000-hour promise real.

Energy Savings

80%
vs. metal halide

Lifespan

100,000 hrs
L70 rated

Replaces

100–250W
Metal halide

Start Time

Instant
No restrike delay

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
100W
Wattage Range
150 lm/W
Efficacy
15,000 lm
Max Lumens
IP66
IP Rating
100,000 hr
L70 Lifespan
Up to 10 Year
Warranty

Electrical

Wattage100W
Input Voltage100-277VAC, 50/60Hz
Power Factor≥0.95
PhotocellOptional (5KP model)

Optical

Lumens15,000 lm
Efficacy150 lm/W
CCT5000K
CRI>70
Beam Angle120°
LED2835
Lumen MaintenanceL70 > 100,000 h at 25°C

Physical

HousingADC12 die-cast aluminum, tempered glass
MountingYoke
FinishBronze
Dimensions10.0 x 7.55 x 5.2 in
Net Weight7.3 lb (3.3 kg)
Operating Temperature-40°C to 50°C

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
100W ←7.28 lbs10.8 lbs15" × 11.81" × 7.09"1

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Photometric data for this product series. Contact sales@auvolar.com for detailed IES files and photometric reports.

Efficacy Comparison

lm/W — higher is better

Light AN-FLY (this product)
150 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Commercial & Municipal Lighting Applications

Professional LED lighting solutions with IES standards compliance for nationwide installations. Request a free LightSpec AI photometric layout or request a project quote.

No accessories available for this product.

Frequently Asked Questions

What is Auvolar Flood Light AN-FLY best used for?
The Auvolar Flood Light AN-FLY excels in security lighting, sports field illumination, signage lighting, and large outdoor areas. Its adjustable mounting allows precise aiming for maximum coverage.
How do I install Auvolar Flood Light AN-FLY?
Installation should be performed by a licensed electrician. Each Auvolar fixture includes detailed installation instructions and mounting hardware. Key steps: 1) Turn off power at the breaker, 2) Mount the bracket or housing, 3) Connect wiring per the included diagram, 4) Secure the fixture and restore power. Auvolar offers free photometric lighting design to help plan optimal fixture placement and spacing. Contact us at sales@auvolar.com or call (626) 364-9198 for assistance.
What is the warranty on Auvolar Flood Light AN-FLY?
Most Auvolar LED fixtures come with a standard 5-year warranty covering manufacturing defects. Our LED drivers are rated for 100,000+ hours of operation. Contact our support team for warranty details and claims.
Does this product qualify for utility rebates?
Many Auvolar products are DLC certified, which qualifies them for utility rebates ranging from $20 to $150+ per fixture depending on your local utility program. Check our Rebate Finder tool or contact us for assistance with your specific utility.
Do you offer volume pricing for contractors?
Yes! We offer competitive wholesale pricing for contractors, electricians, and distributors. Contact our sales team at sales@auvolar.com or call for a custom quote on bulk orders.
What is the shipping time?
In-stock items ship within 24 hours from our Ontario, CA warehouse. Standard shipping takes 3-7 business days depending on your location. Expedited shipping options are available at checkout.
