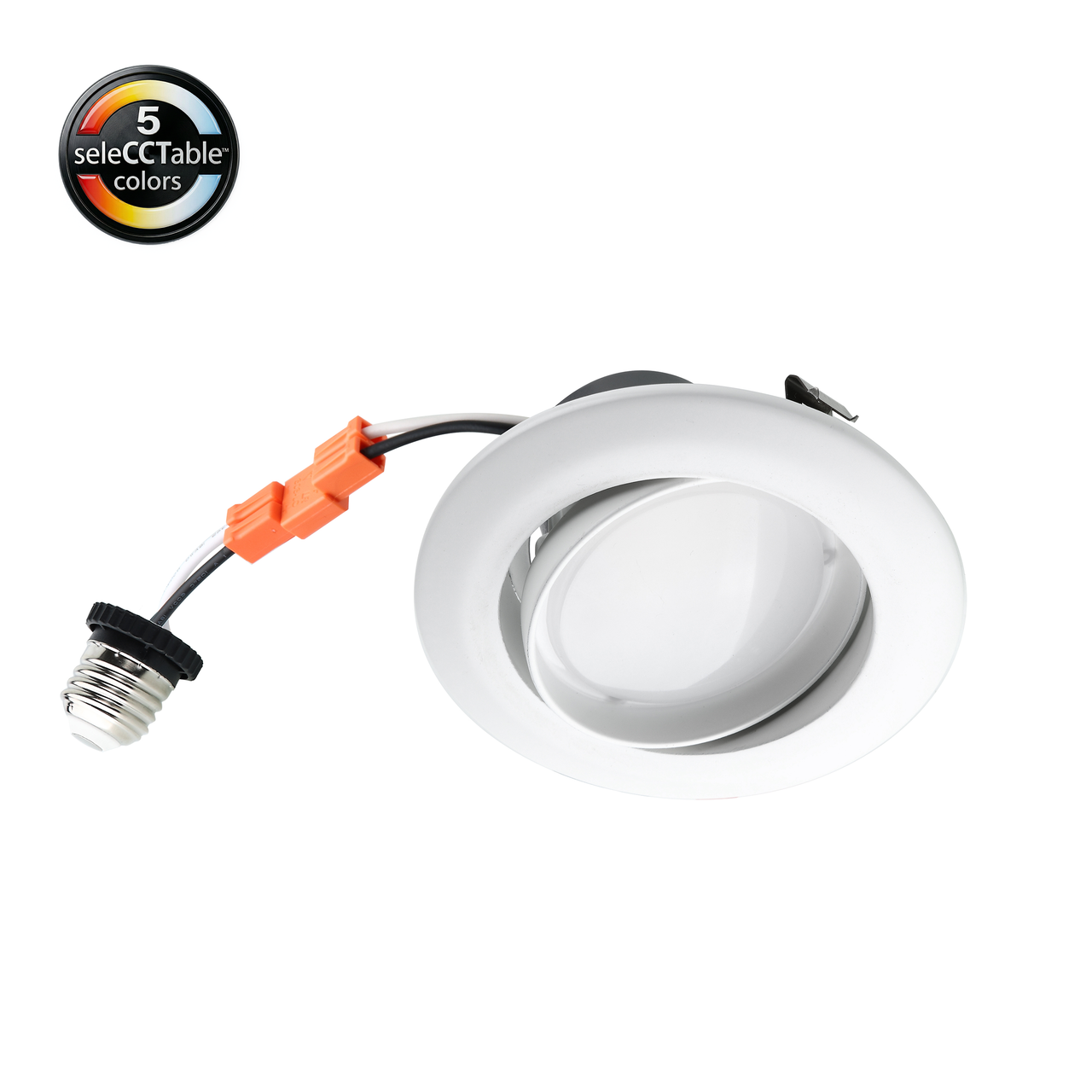

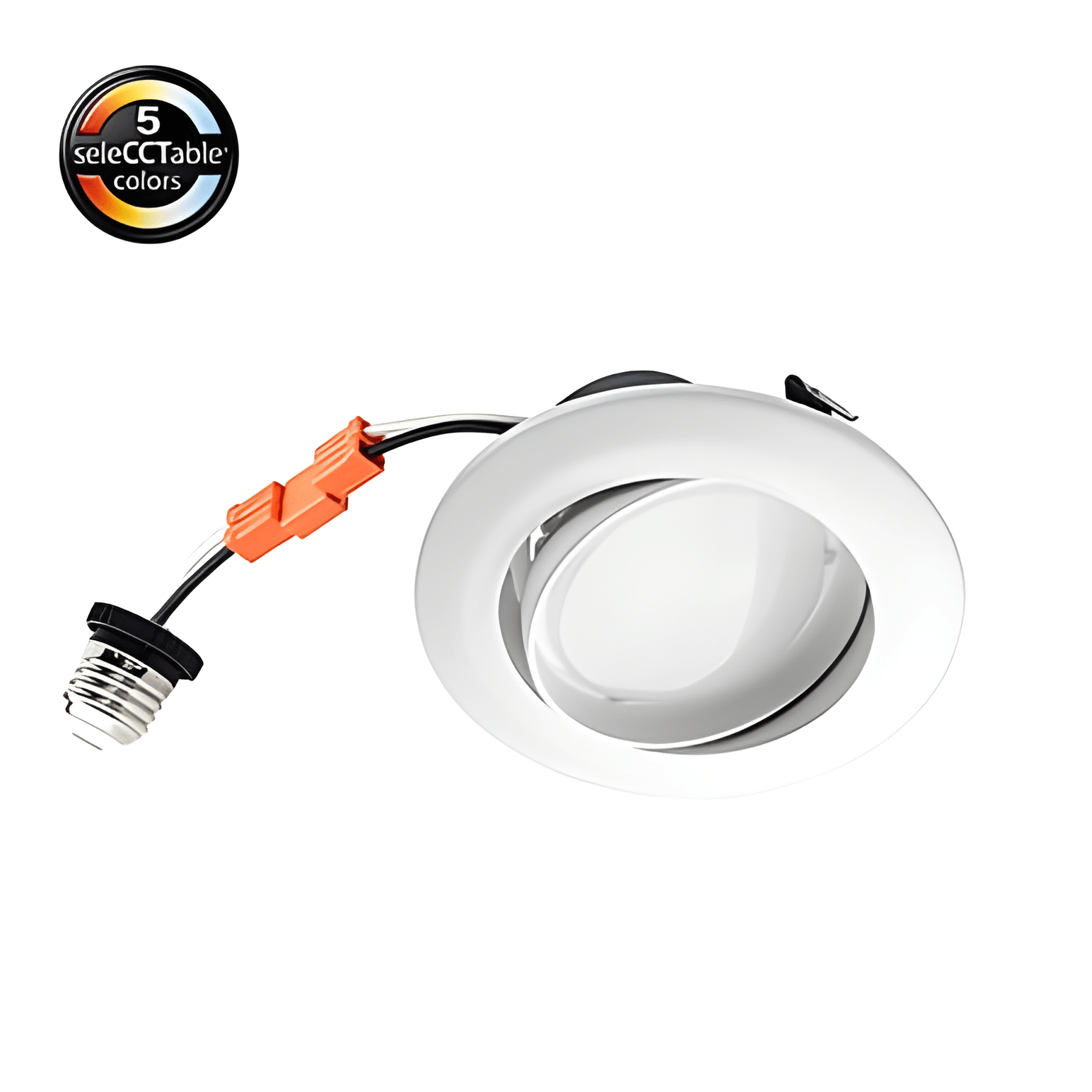

AAE A-DLG10/15W-5CCT LED gimbal recessed downlight with 355° rotation and 25° tilt eyeball design for directional lighting
A-DLG10/15W · Downlights

CCT Turnable LED Downlight A-DLG10/15W

Fix Any Aiming Issue After Mounting — Without Touching the Ceiling.

SKU: A-DLG10W-LV-WH|
In Stock
UL Listed
Energy Star
5-Year Warranty
$18.00

Volume pricing available

Pro & Volume Pricing Available

Contractors, distributors, and trade partners — create a Pro account for exclusive pricing, or request a quote for multi-unit projects.

📦 Sold in cases of 12. Full cartons ship more efficiently.
In Stock — Ships within 1-2 business days from CA
Free shipping on orders over $499
Need help? (626) 364-9198 or sales@auvolar.com

Fix Any Aiming Issue After Mounting — Without Touching the Ceiling.

The gimbal downlight that rotates 355° and tilts 25° so you can redirect light to artwork, counters, or accent walls after installation. 5CCT selectable, 90+ CRI, wet-location rated — no return trips to re-cut a ceiling hole at a different angle.

Aim the Light After Install — Not Before

355° rotation and 25° tilt let you direct the beam precisely after the fixture is mounted. When the furniture layout changes or the art gets moved, adjust the light instead of cutting a new hole.

90+ CRI Shows True Colors in Kitchens and Retail

Food looks appetizing, merchandise looks accurate, and skin tones look natural. At CRI >90, this fixture is spec-grade for retail displays, kitchen task lighting, and hospitality environments where color quality drives revenue.

Wet Location Rated — Kitchens and Bathrooms Included

Use it over shower stalls, kitchen sinks, and covered outdoor areas. One fixture type covers wet and dry locations, so the same SKU works from the master bath to the living room.

5CCT Means the Designer Gets What They Want

Select from 2700K through 5000K with a flip switch. When the interior designer changes the color palette between design review and installation, you change the CCT — not the fixture.

10W or 15W — Match the Output to the Task

Two wattage options for different ceiling heights and accent requirements. Use 10W(4inch) for close-range displays and 15W (6inch) for higher ceilings or wider coverage without changing the fixture model.

CRI

>90
True color rendering for retail, hospitality, and food service

Adjustability

355° / 25°
Full rotation + tilt — redirect light without ceiling work

Warranty

5 Years
Full manufacturer warranty with hassle-free coverage

LightSpec AI

Free Lighting Layout
IES-based photometric simulation
>90
CRI
355° / 25°
Adjustability
5 Years
Warranty

Electrical

DimmingTriac Dimming
Frequency60Hz
Power Factor0.9
Voltage120V

Optical

Distribution TypeNarrow
CCT2700K/3000K/3500K/4000K/5000K
CRI90
Lumens830lms or 1250lms

Physical

FinishWhite / Black / Bronze / Nickel
IP RatingWet locations
MountingRecessed gimbal (355° rotation, 25° tilt)
Operating Temperature-20°C to 40°C

Warranty

Warranty5-Year Warranty

Custom

Watts10W OR 15W

📦 Shipping & Dimensions

ModelProduct WeightPackage WeightPackage Dimensions (L×W×H)Units/Carton
10W0.83 lbs10 lbs18.5" × 19" × 6.5"12
15W1.25 lbs14.5 lbs16.5" × 20.5" × 9"12

Photometric Performance Data

Professional IES-standard luminous flux measurements at 25°C, 4000K Ra70. Data certified for lighting design calculations and municipal specifications.

Standards Compliance

Based on max wattage lumen output per optic. Actual compliance depends on layout design and fixture count.

🏆
FIFA A
≥ 2400 lux avg
110°
FIFA C
≥ 1000 lux avg
110°
🏈
IES RP-6 Class I
≥ 100 fc avg
110°
🎾
IES RP-6 Class III
≥ 30 fc avg
110°

Beam Pattern & CBCP

Peak Center Beam Candlepower and throw ratings by optic.

110°
110° optic
Peak CBCP467 cd
Beam Angle110°
Throw RatingWide Flood (<30ft)
Wide area coverage · Low-mount <30ft · Recreational

⚡ Quick Project Estimator

Select your sport and level for an instant fixture recommendation.

Recommended Optic
60°
Fixture Count
48-72
Pole Layout
4-6 poles
Target Level
500-1000 lux (FIFA C/D)
Mounting Height
50-60ft
Get Full Photometric Layout (Free) →

Custom AGi32-grade simulation with foot-candle grid, uniformity ratios, and pole spacing

Lumen Output (lm)

Tested per IESNA LM-79-19 at 25°C, EVERFINE GO-2000A goniophotometer

Optic10W15W
110° ()8301,250
Efficacy (lm/W)8383

Efficacy Comparison

lm/W — higher is better

Downlight A-DLG10/15W (this product)
83 lm/W
Industry LED Average
130 lm/W
HPS (High-Pressure Sodium)
110 lm/W
Metal Halide
90 lm/W

* Peak efficacy measured from LM-79 test data. Competitor values are industry typical ranges.

IES File Downloads

IESNA LM-63-2002 format · Compatible with AGi32, DIALux, Relux, Visual

🔆 Run a Free Photometric Simulation

Upload your floor plan and let LightSpec AI calculate foot-candle levels, uniformity ratios, and recommended pole spacing — in under 60 seconds.

Try LightSpec AI →

💡 LED Upgrade ROI Calculator

See the financial case for switching to LED in seconds.

Annual Energy Savings
$3,784
💰
Energy Reduction
54.0%
Payback Period
4.0 yrs
10-Year Net Savings
$22,843
CO₂ Reduction
13.5 tons/yr
DLC Utility Rebate Estimate
$2,000
~$100/fixture avg
Payback timeline4.0 of 10 yrs

* Calculations based on standard operating conditions. Actual savings depend on local utility rates and rebate availability. CO₂ based on EPA eGRID national avg (0.855 lbs/kWh).

Commercial & Municipal Lighting Applications

Professional LED lighting solutions with IES standards compliance for nationwide installations. Request a free LightSpec AI photometric layout or request a project quote.

No accessories available for this product.

Quick Summary

The CCT Turnable LED Downlight A-DLG10/15W by Auvolar offers 10-15W with UL and Energy Star certifications, ensuring quality and efficiency.

Frequently Asked Questions

What is the wattage range for the Auvolar CCT Turnable LED Downlight?
The Auvolar CCT Turnable LED Downlight A-DLG10/15W has a wattage range of 10-15W.
Is the Auvolar CCT Turnable LED Downlight UL Listed?
Yes, the Auvolar CCT Turnable LED Downlight A-DLG10/15W is UL Listed.
What color temperatures are available for the Auvolar LED Downlight?
The Auvolar CCT Turnable LED Downlight offers CCT options of 2700K, 3000K, 3500K, 4000K, and 5000K.
What is the CRI of the Auvolar CCT Turnable LED Downlight?
The Auvolar CCT Turnable LED Downlight A-DLG10/15W has a CRI of 90.
What is the warranty period for the Auvolar CCT Turnable LED Downlight?
The Auvolar CCT Turnable LED Downlight A-DLG10/15W comes with a 5-Year Limited Warranty.
