In-stock ships in 24h
Barn Light AN-BL series - Image 1
Save 29%

Barn Light AN-BL series

SKU: AN-BL70W -NV-5KP-BZ|
251 In Stock
$114.00$159.60-29%

LED Barn Light 40W/60W/70W IP65 Waterproof Outdoor Security Light with 0-10V Dimming, 120-277V/120-347V, 3500K/4000K/5000K High-Efficiency 120LM/W Commercial-Grade Wall Mounted LED Barn Light for Farm...

SKU: AN-BL70W -NV-5KP-BZ

1
Request Volume Quote
Free Shipping on $500+
5-Year Warranty
DLC Certified
UL/ETL Listed

Compatible Accessories

Build your complete lighting system

Accessories Coming Soon

Mounting brackets, sensors, poles, and more will be available shortly.

Contact Us for Accessories

Product Details

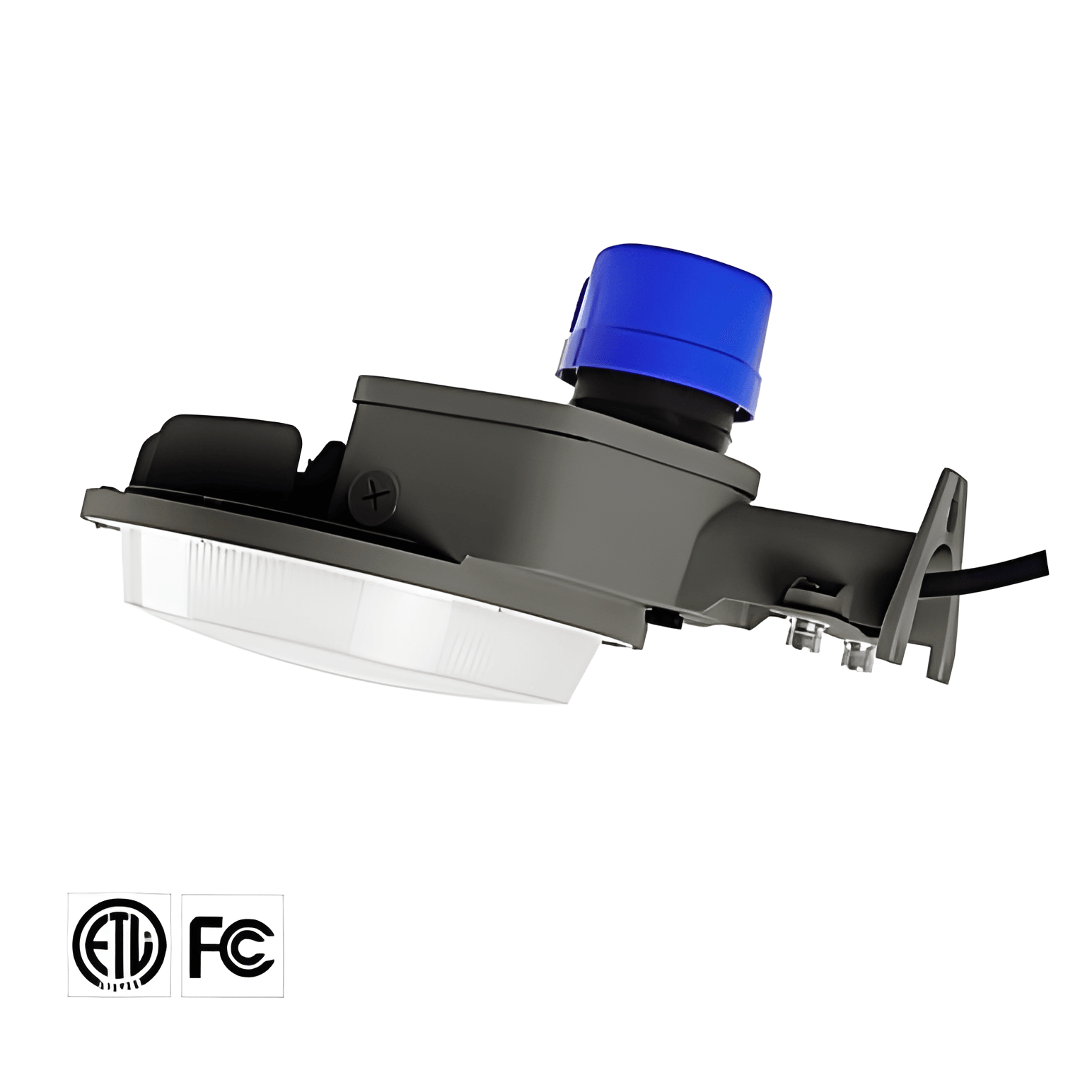

LED Barn Light 40W/60W/70W IP65 Waterproof Outdoor Security Light with 0-10V Dimming, 120-277V/120-347V, 3500K/4000K/5000K

High-Efficiency 120LM/W Commercial-Grade Wall Mounted LED Barn Light for Farms, Garages, Warehouses & Industrial Outdoor Lighting

Durable ADC12 Aluminum Housing, Wet Location Rated, 150° Wide Beam Angle, 250,000H Long Lifespan

Upgrade your outdoor lighting with this high-performance LED Barn Light engineered for commercial and residential applications. Available in 40W, 60W, and 70W options (including 40-55-70W selectable models), this fixture delivers up to 120 lumens per watt for superior brightness and energy efficiency.

Designed for wet locations with an IP65 waterproof rating, the fixture is fully sealed with a silicone rubber gasket to ensure complete weather protection against rain, dust, and harsh environmental conditions. The rugged ADC12 aluminum housing enhances heat dissipation and extends the 250,000-hour lifespan.

Featuring 0-10V dimming capability, this LED barn light allows flexible brightness control to meet different lighting requirements. It operates on wide voltage ranges (AC120-277V or AC120-347V, 50/60Hz), making it suitable for various commercial and industrial electrical systems.

With selectable color temperatures of 3500K, 4000K, and 5000K, and a wide 150° beam angle, it provides uniform illumination for barns, farms, garages, warehouses, yards, loading docks, and building perimeters. The fixture supports wall-mounted or arm kit installation for versatile mounting solutions.

Key Features:

  • Power Options: 40W / 60W / 70W / 40-55-70W selectable
  • Luminous Efficiency: 120LM/W
  • Voltage: AC120-277V or AC120-347V
  • Dimming: 0-10V dimmable
  • CCT Options: 3500K / 4000K / 5000K
  • Beam Angle: 150° wide distribution
  • CRI: Ra>80
  • Protection Rating: IP65 Wet Location
  • Operating Temperature: -40°F to +104°F
  • Lifespan: 250,000 hours
  • Material: ADC12 Die-Cast Aluminum

Ideal for commercial, agricultural, and industrial outdoor lighting applications requiring durability, energy efficiency, and long-term reliability.

Why Choose Auvolar Area Lights?

DLC Certified

Qualify for utility rebates of $20-$150+ per fixture

Wholesale Pricing

Contractor and distributor volume discounts available

Energy Efficient

Up to 150+ lumens per watt, save 50-70% on energy

5-Year Warranty

100,000-hour rated life with comprehensive warranty

Frequently Asked Questions

What is Barn Light AN-BL series best used for?
The Barn Light AN-BL series is designed for parking lots, roadways, commercial properties, and outdoor areas requiring wide-area illumination. Its Type III/V distribution ensures optimal light coverage for safety and security.
How do I install Barn Light AN-BL series?
Installation should be performed by a licensed electrician. Each Auvolar fixture includes detailed installation instructions and mounting hardware. Key steps: 1) Turn off power at the breaker, 2) Mount the bracket or housing, 3) Connect wiring per the included diagram, 4) Secure the fixture and restore power. Auvolar offers free photometric lighting design to help plan optimal fixture placement and spacing. Contact us at sales@auvolar.com or call (626) 342-8856 for assistance.
What is the warranty on Barn Light AN-BL series?
All Auvolar LED fixtures come with a standard 5-year warranty covering manufacturing defects. Our LED drivers are rated for 100,000+ hours of operation. Contact our support team for warranty claims.
Does this product qualify for utility rebates?
Many Auvolar products are DLC certified, which qualifies them for utility rebates ranging from $20 to $150+ per fixture depending on your local utility program. Check our Rebate Finder tool or contact us for assistance with your specific utility.
Do you offer volume pricing for contractors?
Yes! We offer competitive wholesale pricing for contractors, electricians, and distributors. Contact our sales team at sales@auvolar.com or call for a custom quote on bulk orders.
What is the shipping time?
In-stock items ship within 1-2 business days from our City of Industry, CA warehouse. Standard shipping takes 3-7 business days depending on your location. Expedited shipping options are available at checkout.
