A-DL6/8/10W-NV-5CCT & A-DL8/10/12W-NV-5CCT LED Flat Downlight – 4" & 6"

Overview:

The A-DL-NV-5CCT LED Flat Downlight series is a high-efficiency, low-profile recessed lighting solution designed for commercial and residential applications. Featuring 5CCT selectable color temperature and field-adjustable wattage, this all-in-one downlight simplifies project planning and on-site installation.

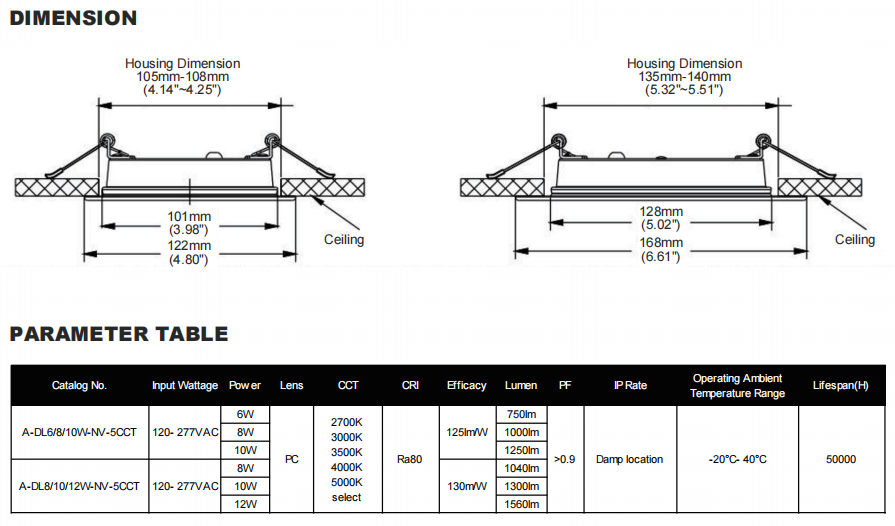

Available Models:

• 4 Inch: 6W / 8W / 10W Adjustable

• 6 Inch: 8W / 10W / 12W Adjustable

Operating on 120–277VAC universal voltage, this LED recessed downlight delivers up to 125lm/W efficacy for superior energy savings. The integrated 5CCT selector (2700K / 3000K / 3500K / 4000K / 5000K) allows flexible color temperature adjustment at installation, reducing SKU inventory.

Designed with excellent heat dissipation performance, the slim flat construction enables installation in low plenum and shallow ceiling spaces. Compatible with both 0-10V dimming and TRIAC (phase-cut) dimming, it ensures smooth, flicker-free brightness control.

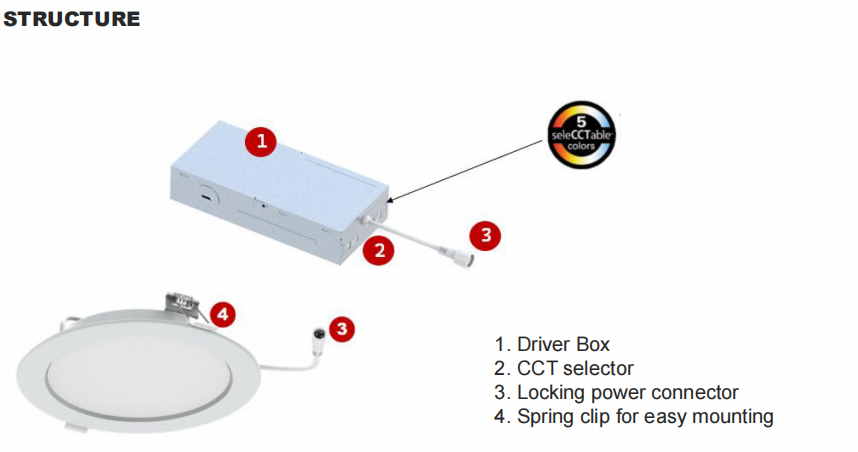

This frame-free flat downlight eliminates traditional reflector housing, providing a modern architectural appearance and simplified installation.

Key Features:

• 4" and 6" LED flat recessed downlight

• 5CCT selectable (2700K–5000K)

• Field-adjustable wattage options

• High efficacy up to 125lm/W

• 120–277VAC universal voltage

• 0-10V and TRIAC dimmable

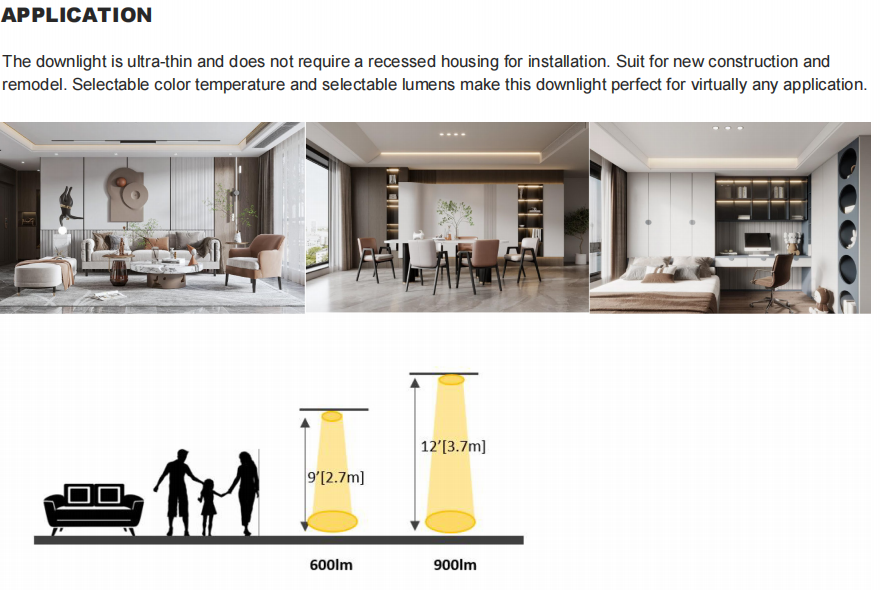

• Slim design for low plenum ceilings

• Excellent thermal management

• White finish for clean architectural look
