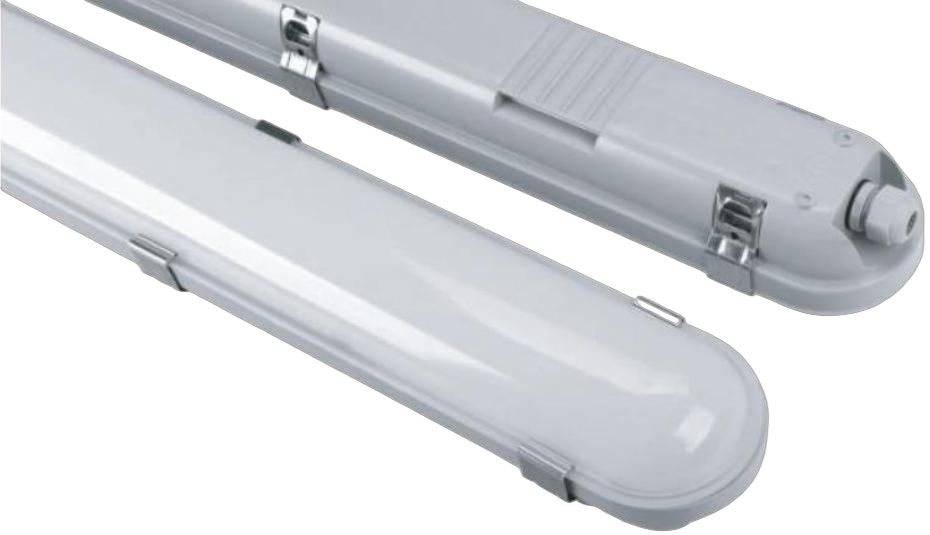

AN-VF-4FT-NVXXW-XXK 4FT LED Tri-Proof Light – 130lm/W, IP65, IK08

Overview:

The AN-VF-4FT-NVXXW-XXK LED Tri-Proof Light is a high-efficiency 4-foot vapor tight fixture engineered for demanding commercial and industrial environments. Designed with a slotted iron board structure for superior heat dissipation, this IP65-rated and IK08 impact-resistant luminaire delivers reliable performance in wet and harsh locations.

Operating on universal voltage options (100–277V or 100–347V), this LED tri-proof light provides up to 130 lumens per watt, with lumen output reaching 6500lm depending on wattage configuration. Available wattage models include 40W and selectable 25W/30W/40W options.

The fixture supports 3500K, 4000K, and 5000K color temperature selections to meet various application needs. Optional built-in or external microwave motion sensors enhance energy savings, while the emergency backup option (8W, 90 minutes) ensures continued illumination during power outages.

With a 120° beam angle, CRI >80, PF >0.9, and modular installation design, this 4FT LED vapor tight light reduces installation time and maintenance cost. Suitable for supermarkets, warehouses, underground parking garages, production workshops, and utility areas.

Certified to meet IP65 waterproof, IK08 impact protection, and 850°C glow wire test requirements. Backed by a 5-year warranty.

Key Features:

• 4FT LED tri-proof vapor tight light

• 130lm/W high efficiency output

• IP65 waterproof & IK08 impact rating

• 100–277V or 100–347V universal voltage

• 3500K / 4000K / 5000K CCT options

• Optional microwave motion sensor

• Optional 8W emergency backup (90 minutes)

• 120° beam angle

• CRI >80, PF >0.9

• Modular installation design

• 5-year warranty
