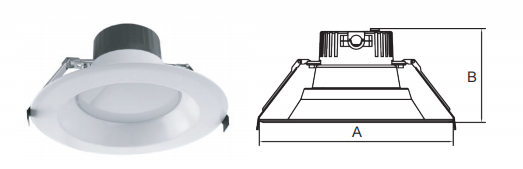

A-DLxIN-xxW-345K LED Downlight – 4" / 6" / 8" / 10" 5CCT & Wattage Adjustable

Overview:

The A-DLxIN-xxW-345K LED Downlight series is a high-performance commercial recessed lighting solution designed for retrofit and new construction applications. Featuring both 5CCT selectable color temperature and field-adjustable wattage, this versatile LED downlight reduces inventory complexity while maximizing on-site flexibility.

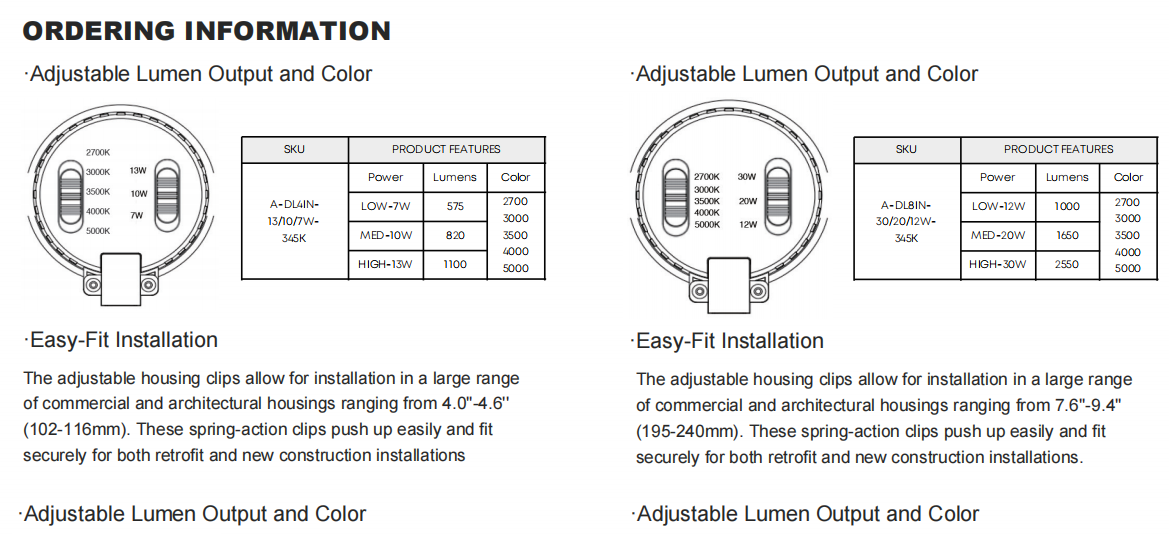

Available Sizes & Adjustable Power Options:

• 4 Inch: 13W / 10W / 7W

• 6 Inch: 22W / 15W / 10W

• 8 Inch: 30W / 20W / 12W

• 10 Inch: 40W / 30W / 20W

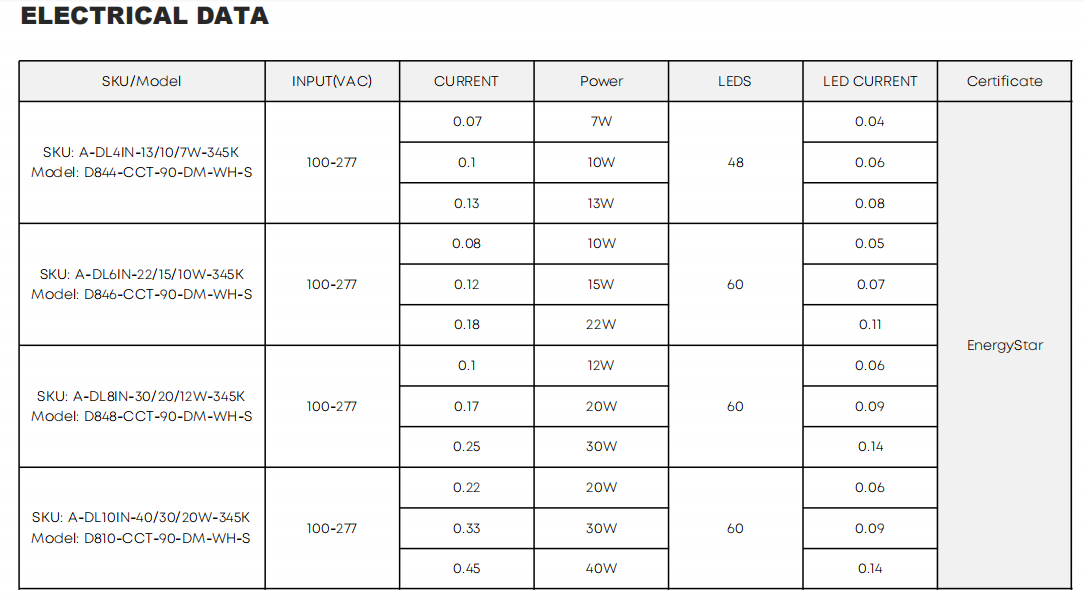

Operating on 120–277VAC universal voltage, this recessed LED downlight supports 0-10V dimming for smooth, flicker-free brightness control. The built-in 5CCT selector (2700K / 3000K / 3500K / 4000K / 5000K) allows precise color temperature adjustment to meet residential, retail, office, and hospitality lighting requirements.

With CRI>90, the fixture delivers superior color rendering and visual clarity. The universal housing compatibility and spring-action clips enable quick and secure installation, simplifying retrofit projects and reducing labor costs.

Key Features:

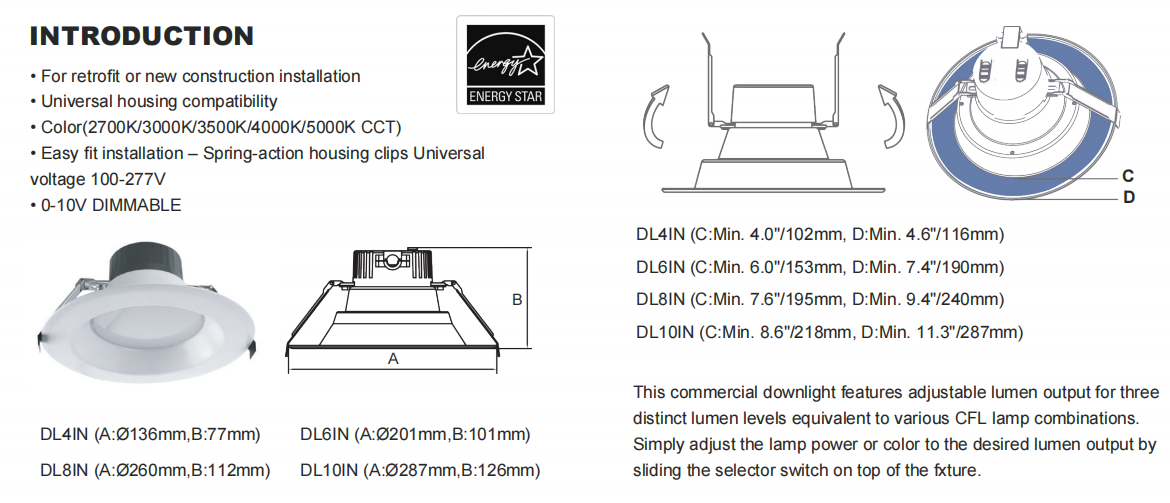

• 4", 6", 8", 10" LED recessed downlight options

• 5CCT selectable (2700K–5000K)

• Field-adjustable wattage for flexible lumen output

• 0-10V dimmable LED downlight

• 120–277VAC universal voltage

• CRI 90+ high color accuracy

• Universal housing compatible

• Easy-fit spring clip installation

• Suitable for retrofit and new construction
