A-EP40RS Emergency LED Driver 40W UL Listed 90Min Backup Li-ion Battery

NFPA 101 Compliant CEC Title 20 LED Emergency Driver with Auto Self-Test & 5-Year Warranty

Derived Subheading: 40W IP69K/IP65 Emergency LED Driver for 9~350W LED Luminaires with 0-10V Dimming

FEATURES

Introducing the A-EP40RS Emergency LED Driver, the ultimate AC power backup solution for 9~350W LED luminaires, engineered to meet the strictest safety and performance standards with UL listing, CEC Title 20 compliance, and adherence to American NFPA 101 Life Safety Code. This 40W emergency LED driver features a high-capacity 14.8V/6600mAh Li-ion battery, delivering a reliable 90 minutes of emergency power and a 24-hour full recharge cycle for uninterrupted lighting protection during power outages.

Equipped with 2-in-1 test switch & LED indicator and automatic monthly/annual self-test functions, this driver effortlessly checks emergency function and battery capacity—30-second monthly tests for operation and 90+ minute annual tests for battery health, with automatic recovery to charging mode post-test. It boasts a robust multi-protection system including battery overcharge/over-discharge protection, output overload, short-circuit, and open load protection, ensuring long-term durability and safe operation.

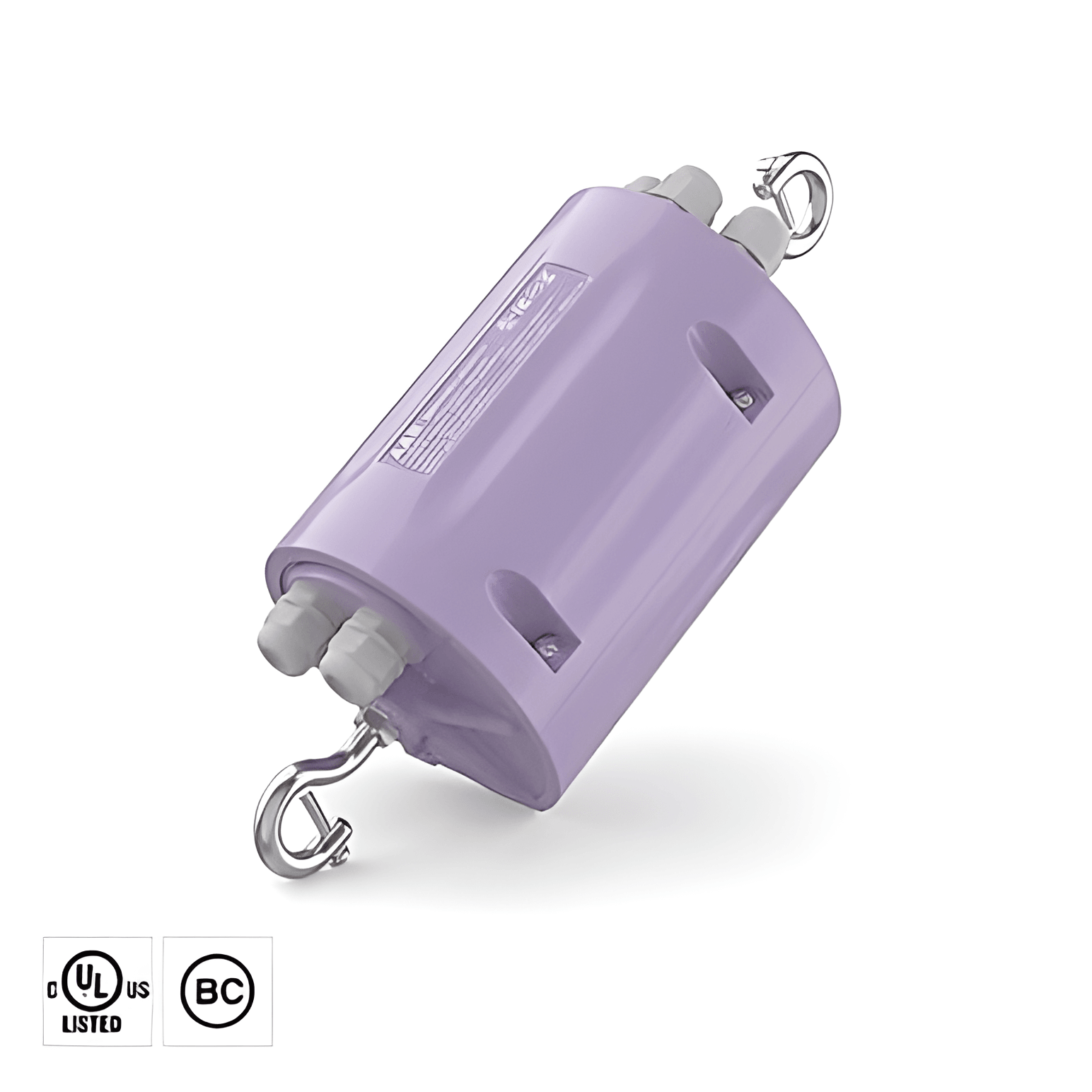

Designed for hassle-free installation, the A-EP40RS features a built-in junction box, direct LED lamp connection (no luminaire disassembly required), and IP69K/IP65 ingress protection for use in damp locations and plenum spaces. It is compatible with 40-350W LED lamps with 0/10V dimming (dimming wires required for higher wattage) and LED lamps under 40W without 0/10V dimming, with an input voltage range of 100-347VAC 50/60Hz and output voltage of 120-200Vdc (250V max). The driver includes a safety rope, M10 hooks, wire nuts, and waterproof connectors for a complete mounting kit, supporting lighting fixtures up to 20kg (44.09lbs).

Backed by a 5-year limited warranty, this sealed emergency LED driver is built for field or factory installation, with optional remote control for manual testing and Bluetooth reset functionality. Ideal for commercial and industrial LED lighting applications, it is installed in accordance with the National Electrical Code and local regulations, with no replaceable components—ensuring a reliable, low-maintenance emergency lighting solution for your LED luminaires.
