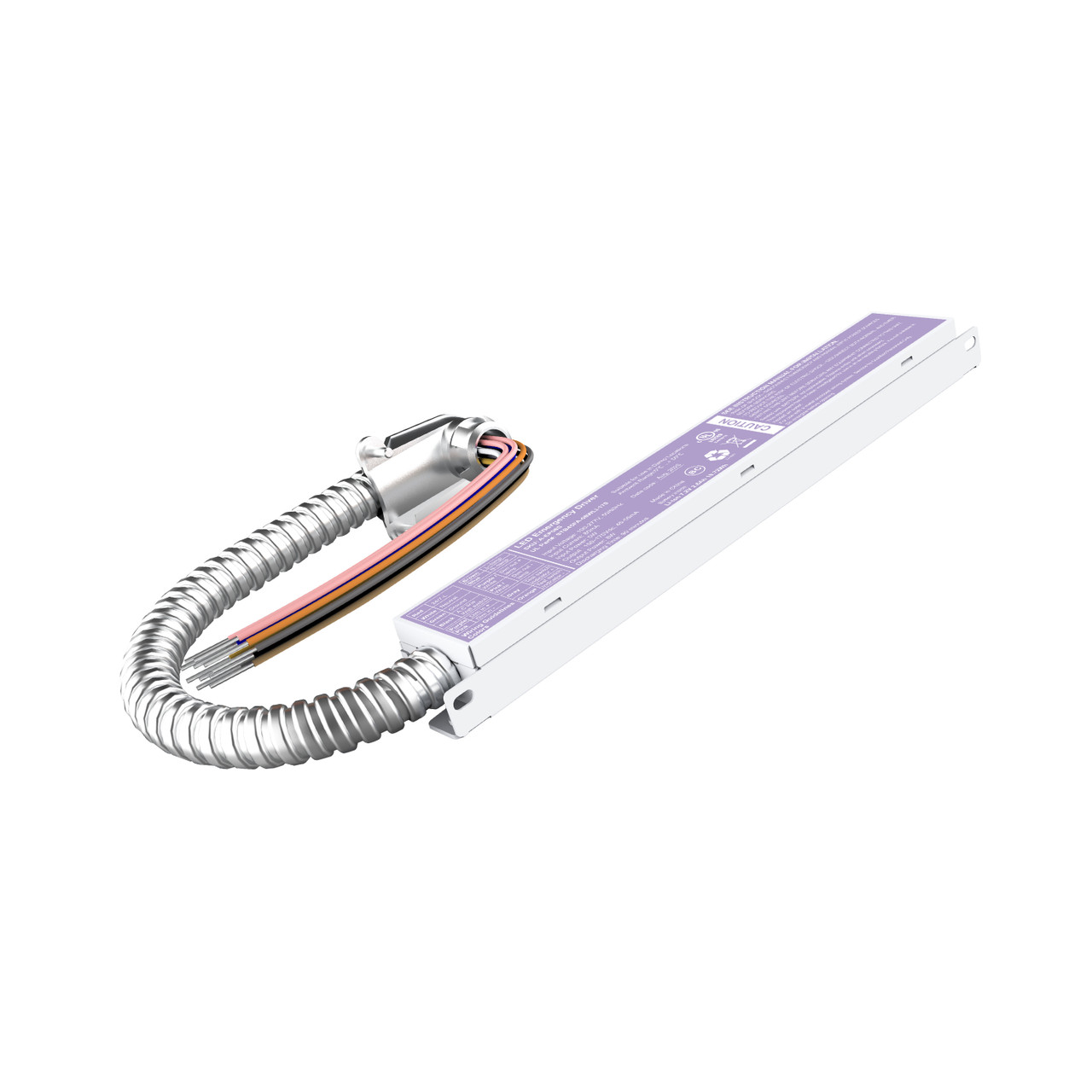

A-EP08S 8W Emergency LED Driver UL Listed Integrated Li-ion Battery Kit for Indoor LED Lighting

0-10V Dimmable, Compact Design, Overcharge/Overdischarge Protection, 90+ Mins Emergency Runtime

A-EP08S-External

A-EP08S Emergency LED Driver Technical Specs & Universal Indoor LED Lighting Applications

FEATURES

Introducing the A-EP08S 8W Emergency LED Driver, a UL listed emergency lighting solution engineered for damp indoor locations and direct DC output to LED modules. This all-in-one integrated emergency kit combines a high-performance LED driver and a long-life Li(NiCoMn)O2 lithium-ion battery pack, ideal for both factory fixture installation and on-field setup—exclusively for indoor LED luminaires (not for hazardous locations).

Boasting a compact, space-saving design with an optional side-mount configuration, the A-EP08S is perfectly suited for narrow installation spaces and compatible with all 8W below LED lamps with or without 0-10V dimming function (≤7W for dimmable lamps with 0-10V/1-10V dimmer). Equipped with an initial functional self-check, rest mode for extended battery storage life, and reliable over-charging/over-discharging protection, this emergency LED driver ensures safe and consistent operation in ambient temperatures from 0°C to +50°C (32°F to 122°F).

The high-capacity 7.2V 2.6Ah 18.72Wh li-ion battery delivers 90+ minutes of emergency runtime, with a recharge time of ≥24 hours and a 15W/500ms startup capability for instant emergency illumination. With a 6-year design life and 5-year limit warranty, the A-EP08S supports 8-100W compatible luminaire power, with an AC input of 100-277V, DC output of 150-170V 7.7W c.p, max input power 5W, max input current 80mA and power factor >0.5.

Widely applied to all 0-10V dimmable indoor LED lighting products including LED panel lights, troffers, downlights, linear lights, high bays and more, the A-EP08S features intuitive LED indicator lights for real-time status monitoring (charging, battery/charging/temp error, LED load abnormal) and a clear wiring diagram for easy installation. UL certified with UL# STB45FA-08WLI-170, this emergency LED driver is a durable, high-quality choice for commercial and residential indoor emergency lighting needs.
