A-DL4/6/8/10IN LED Downlight CCT Wattage Adjustable 0-10V Dimmable

100-277V Universal Voltage Retrofit & New Construction LED Downlight Energy Star Certified

A-DLxIN-xxW_345K

Derived Subheading: Multi-Size Adjustable Lumen Color LED Downlight with Spring-Action Clips

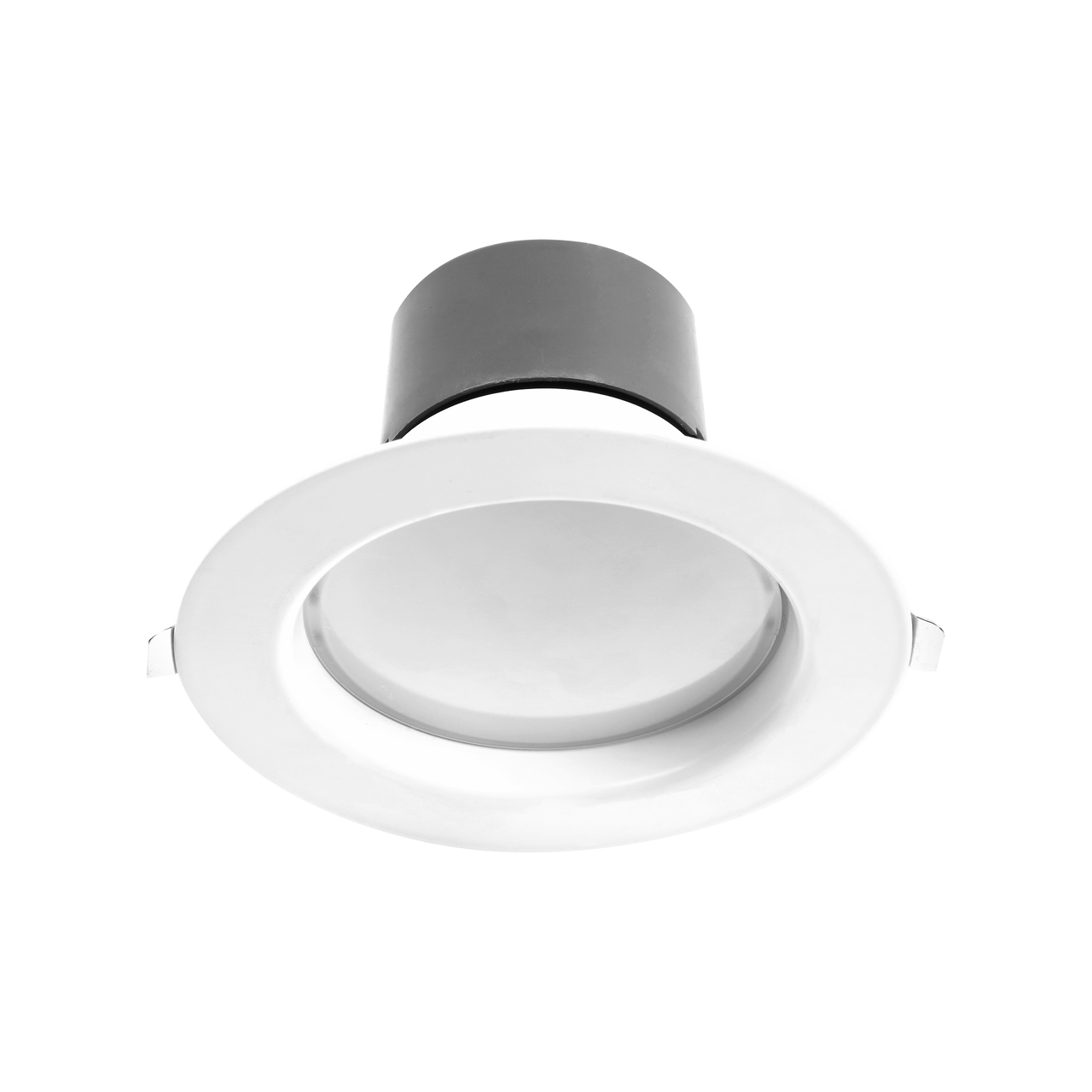

Product Description:

AAB TEC A-DLxIN LED Downlight is a versatile commercial-grade lighting solution available in 4IN, 6IN, 8IN and 10IN sizes, featuring adjustable wattage, lumen output and color temperature (2700K/3000K/3500K/4000K/5000K) for customized lighting needs. With universal 100-277V AC input and 0-10V dimmable functionality, this downlight delivers flexible performance for both residential and commercial spaces, boasting Energy Star certification for superior energy efficiency. Designed for retrofit and new construction installation, it offers universal housing compatibility with spring-action adjustable housing clips that fit a wide range of commercial and architectural housing cutout sizes—4.0''-4.6'' (4IN), 6.0''-7.4'' (6IN), 7.6''-9.4'' (8IN) and 8.97''-9.68'' (10IN).

Each size features three selectable power/lumen levels: 4IN (7W/575lm,10W/820lm,13W/1100lm), 6IN (10W/820lm,15W/1230lm,22W/1850lm), 8IN (12W/1000lm,20W/1650lm,30W/2550lm) and 10IN (20W/1650lm,30W/2500lm,40W/3400lm), easily adjustable via a top-mounted selector switch for quick customization.

The easy-fit installation process requires no complex hardware—simply adjust lumens/color, push the spring clips up and secure the downlight for a flush finish, with clear steps for both retrofit (bypass ballast, wire to j-box) and new construction setups. Equipped with high-quality LED chips (48pcs for 4IN, 60pcs for 6/8/10IN) and reliable electrical performance, this downlight is built for long-lasting use, ideal for a variety of indoor lighting applications that demand adaptability and easy installation.
